안녕하세요.



현재도 고객사중에서는 이미 EOL된 장비를 사용 하는 고객사들이 많이 있습니다.

장비를 교체할 시기에 회사에 사정상 교체 할 수 없어서 계속 사용하거나 아니면 아무 문제 없어서 계속 사용하는 경우도 많이 있습니다.



오늘은 C4506-E에 대해서 알아보도록 하겠습니다.

C4506-E는 Chassis 형태에 스위치 입니다.



3 WS-C4506-E Cat4500 E-Series 6-Slot Chassis, fan, no ps 2
3.1 S45EU-S8-36E CAT4500e SUP8e Universal Image 2
3.2 C4K-SLOT-CVR-E Catalyst 4500 E-Series Family Slot Cover 6
3.3 C4500E-IPB Paper IP Base License 2
3.4 CON-OSP-C4506E SNTC-24X7X4OS  Cat4500 E-Series 6-Slot Chassis, fan, no 2
3.5 WS-X45-SUP8-E Catalyst 4500 E-Series Supervisor 8-E 2
3.6 WS-X4712-SFP-E Catalyst 4500 E-Series 12-Port GE (SFP) 2
3.7 WS-X4748-RJ45-E Catalyst 4500 E-Series 48-Port 10/100/1000 Non-Blocking 2
3.8 PWR-C45-1000AC Catalyst 4500 1000W AC Power Supply (Data Only) 2
3.9 CAB-BS1363-C15-UK BS-1363 to IEC-C15 8ft UK 4
3.10 PWR-C45-1000AC/2 Catalyst 4500 1000W AC Power Supply Redundant(Data Only) 2
3.11 SFP-10G-SR= 10GBASE-SR SFP Module 2



3. WS-C4506-E Cat4500 E-Series 6-Slot Chassis, fan,

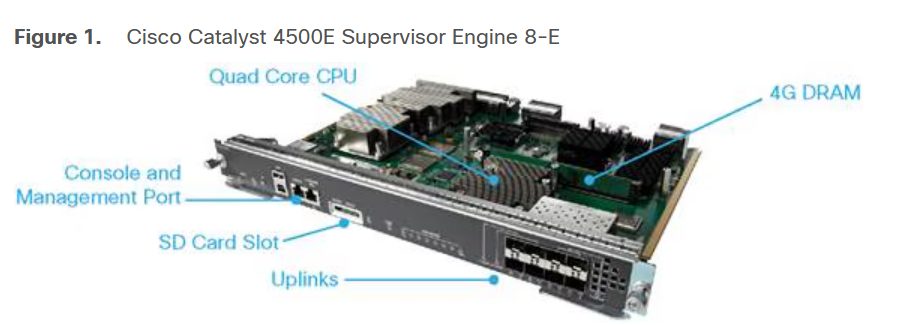

3-5 WS-X45-SUP8-E



https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-4500-series-switches/data_sheet_c78-728191.html

Cisco Catalyst 4500E Supervisor Engine 8-E: Wired and Wireless Convergence Data Sheet





The new Cisco Catalyst 4500E Supervisor Engine 8-E is an enterprise-class, access and aggregation supervisor engine designed to provide up to 928 Gbps of wired access per system with an E-Series chassis



Table 1.       Cisco Catalyst 4500E Supervisor Engine 8-E Performance and Scalability Features

Features	Performance and Scalability
Centralized Wired Switching Capacity	Up to 928 Gbps
Wireless Termination Capacity	Up to 20 Gbps (software Roadmap)
Per-slot Switching Capacity	48 Gbps
Throughput	●  250 Mpps for IPv4 ●  125 Mpps for IPv6
IPv4 Routing Entries	256,000
IPv6 Routing Entries	128,000
Multicast Routes	32,000
CPU	Quad core; 2.0 GHz
CPU Queues	64
Synchronous Dynamic RAM (SDRAM)	4 GB
Nonvolatile RAM (NVRAM)	2 GB
Security and QoS Hardware Entries	128,000
Dynamic Host Configuration Protocol (DHCP) Snooping Entries	12,000
MAC Addresses	55,000
Active VLANs	4094
Address Resolution Protocol (ARP) Entries	47,000
Spanning Tree Protocol Instances	10,000
Switched Virtual Interfaces (SVIs)	4094
Switched Port Analyzer (SPAN)	Maximum of 8 bi-directional sessions

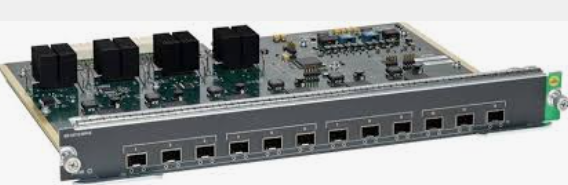

3.6 WS-X4712-SFP-E Catalyst 4500 E-Series 12-Port GE (SFP) 2



• 슬롯당 48기가비트 용량
• 3포트씩 4개 그룹에 대역폭이 할당되며 포트 그룹당 12Gbps(2.5:1) 제공
• 최대 12포트 10GE SFP+(10GBASE-R) 또는 12포트 GE SFP(1GBASE-X) 지원
• 동일 라인 카드에 특별한 제한 없이 SFP+와 SFP를 동시에 사용 가능

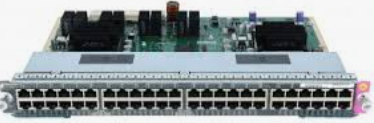

3.7 WS-X4748-RJ45-E Catalyst 4500 E-Series 48-Port 10/100/1000 Non-Blocking 2

• 슬롯당 48기가비트 용량

• 48포트 논블로킹

• 10/100/1000 모듈(RJ-45)

• Cisco IOS XE Release 3.1.0SG 이상

• Energy Efficient Ethernet 802.3az

BB#1#show module  Switch Number: 1 Role: Virtual Switch Active Chassis Type : WS-C4506-E Power consumed by backplane : 0 Watts Mod Ports Card Type                              Model              Serial No. ---+-----+--------------------------------------+------------------+-----------  1     8  Sup 8-E 10GE (SFP+), 1000BaseX (SFP)   WS-X45-SUP8-E      CAT2129L0KY   3    12  1000BaseX SFP                          WS-X4712-SFP-E     CAT2107L62U   4    48  10/100/1000BaseT EEE (RJ45)            WS-X4748-RJ45-E    CAT2127L4ER  Mod  Redundancy role     Operating mode      Redundancy status ----+-------------------+-------------------+----------------------------------  1   Active Supervisor   SSO                 Active                             Switch Number: 2 Role: Virtual Switch Standby Chassis Type : WS-C4506-E Power consumed by backplane : 0 Watts Mod Ports Card Type                              Model              Serial No. ---+-----+--------------------------------------+------------------+-----------  1     8  Sup 8-E 10GE (SFP+), 1000BaseX (SFP)   WS-X45-SUP8-E      CAT2129L0F4   3    12  1000BaseX SFP                          WS-X4712-SFP-E     CAT2107L62F   4    48  10/100/1000BaseT EEE (RJ45)            WS-X4748-RJ45-E    CAT2127L6TW  Mod  Redundancy role     Operating mode      Redundancy status ----+-------------------+-------------------+----------------------------------  1   Standby Supervisor  SSO                 Standby hot



Referance

https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-4500-series-switches/data_sheet_c78-728191.html

Cisco Catalyst 4500E Supervisor Engine 8-E: Wired and Wireless Convergence Data Sheet



https://www.cisco.com/c/dam/global/ko_kr/products/switches/catalyst-4500-series-switches/Cisco_Catalyst_4500E_Series_Chassis_data_sheet.pdf



https://www.cisco.com/c/dam/global/ko_kr/products/switches/catalyst-4500-series-switches/Cisco_Catalyst_4500_Series_Line_Cards_data_sheet.pdf

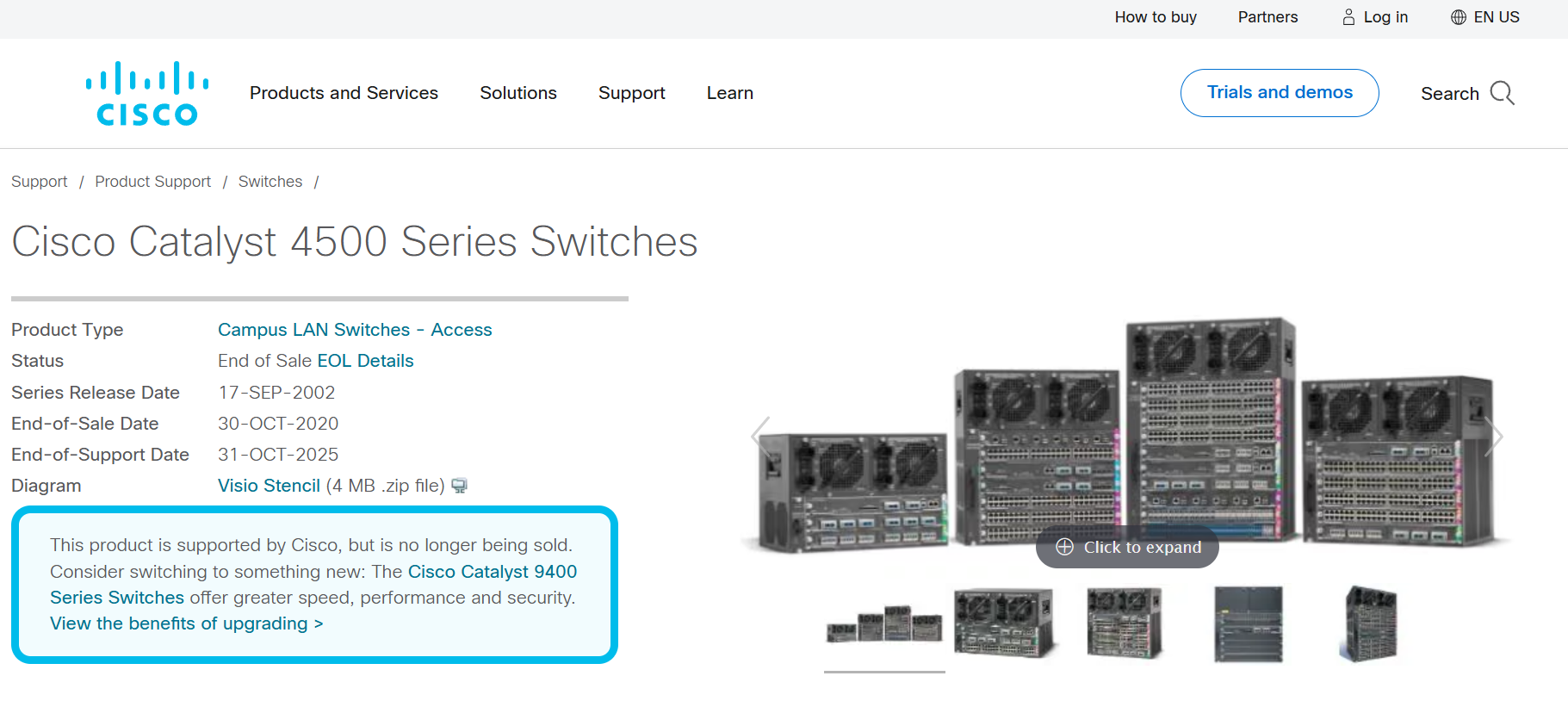

EOS and EOS(Support)



https://www.cisco.com/c/en/us/support/switches/catalyst-4500-series-switches/series.html

Cisco Catalyst 4500 Series Switches
