안녕하세요.



오늘은 Juniper SRX Traffic Flow에 대해서 알아보겠습니다.

각 벤더마다 아키텍처가 다를수 있습니다.



이부분이 정책하게 이해해야지 설정값을 설정값을 잘 만들수 있습니다.

예를 들어서 SNAT, DNAT, Static NAT, 라우팅 테이블이 중에서

DNAT가 먼저 적용되고 변경된 Destination IP주소로 라우팅을 검색해서 라우팅을 하는지.

아니면 라우팅이 먼저 적용된다음에 DNAT가 적용 되는지.



순서에 따라서 설정값이 많이 달라집니다.

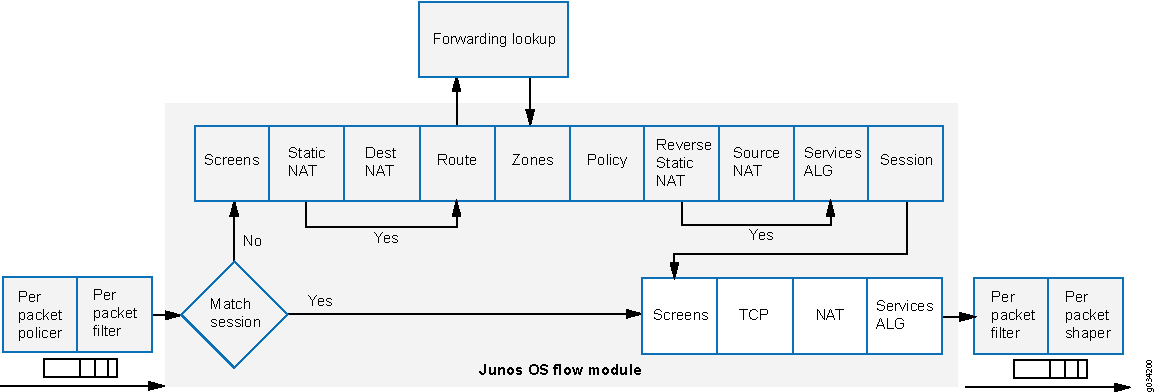

그래서 아래처럼 방화벽 Traffic Flow를 이해하는것이 중요 합니다.



주니퍼 방화벽 공식 홈페이지 URL주소 입니다.

https://www.juniper.net/documentation/us/en/software/junos/flow-packet-processing/topics/topic-map/security-srx-devices-processing-overview.html



Traffic Processing on SRX Series Firewalls Overview | Junos OS | Juniper Networks

Junos OS for security devices integrates network security and routing capabilities of Juniper Networks. Packets that enter and exit a device undergo both packet-based and flow-based processing. Understanding the Default Processing Behavior for IPv4 Traffic

www.juniper.net



시간이 되시면 위에 공식 홈페이지에 글을 끝까지 읽어보시길 바랍니다.

지금까지 [2025][Juniper SRX #31] Traffic Flow 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 Juniper SRX Firmware Upgrade를 해보겠습니다.



Juniper SRX는 보통 CLI에서 많이 사용 합니다.



1. Juniper 기본 설정값을 확인 합니다.

root> show configuration | display set | no-more
set version 21.4R3-S3.4
set system root-authentication encrypted-password "$6$Kt3WFIik$0vN75BKuEZDkbTiLXUiAaTbrdkZ2EQCMo0u/G2D.nI3yQFDnN2sRwSwMra/BrVBfXg2lnWtzltwnPZkIWY2Zi."
set system services ssh
set system services netconf ssh
set system services dhcp-local-server group jdhcp-group interface irb.0
set system services web-management https system-generated-certificate
set system name-server 8.8.8.8
set system name-server 8.8.4.4
set system syslog archive size 100k
set system syslog archive files 3
set system syslog user * any emergency
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any notice
set system syslog file messages authorization info
set system max-configurations-on-flash 5
set system max-configuration-rollbacks 5
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set system phone-home server https://redirect.juniper.net
set system phone-home rfc-compliant
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
set security nat source rule-set trust-to-untrust from zone trust
set security nat source rule-set trust-to-untrust to zone untrust
set security nat source rule-set trust-to-untrust rule source-nat-rule match source-address 0.0.0.0/0
set security nat source rule-set trust-to-untrust rule source-nat-rule then source-nat interface
set security policies from-zone trust to-zone trust policy trust-to-trust match source-address any
set security policies from-zone trust to-zone trust policy trust-to-trust match destination-address any
set security policies from-zone trust to-zone trust policy trust-to-trust match application any
set security policies from-zone trust to-zone trust policy trust-to-trust then permit
set security policies from-zone trust to-zone untrust policy trust-to-untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust-to-untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust-to-untrust match application any
set security policies from-zone trust to-zone untrust policy trust-to-untrust then permit
set security policies pre-id-default-policy then log session-close
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces irb.0
set security zones security-zone untrust screen untrust-screen
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services dhcp
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services tftp
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services https
set security zones security-zone untrust interfaces ge-0/0/7.0 host-inbound-traffic system-services dhcp
set security zones security-zone untrust interfaces ge-0/0/7.0 host-inbound-traffic system-services tftp
set security zones security-zone untrust interfaces dl0.0 host-inbound-traffic system-services tftp
set interfaces ge-0/0/0 unit 0 family inet dhcp vendor-id Juniper-srx320
set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/3 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/4 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/5 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/6 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/7 unit 0 family inet dhcp vendor-id Juniper-srx320
set interfaces cl-1/0/0 dialer-options pool 1 priority 100
set interfaces dl0 unit 0 family inet negotiate-address
set interfaces dl0 unit 0 family inet6 negotiate-address
set interfaces dl0 unit 0 dialer-options pool 1
set interfaces dl0 unit 0 dialer-options dial-string 1234
set interfaces dl0 unit 0 dialer-options always-on
set interfaces irb unit 0 family inet address 192.168.1.1/24
set access address-assignment pool junosDHCPPool family inet network 192.168.1.0/24
set access address-assignment pool junosDHCPPool family inet range junosRange low 192.168.1.2
set access address-assignment pool junosDHCPPool family inet range junosRange high 192.168.1.254
set access address-assignment pool junosDHCPPool family inet dhcp-attributes router 192.168.1.1
set access address-assignment pool junosDHCPPool family inet dhcp-attributes propagate-settings ge-0/0/0.0
set vlans vlan-trust vlan-id 3
set vlans vlan-trust l3-interface irb.0
set protocols l2-learning global-mode switching
set protocols rstp interface all

root>

root> show system license
License usage:
                                 Licenses     Licenses    Licenses    Expiry
  Feature name                       used    installed      needed
  idp-sig                               0            1           0    2030-01-26 00:00:00 UTC
  remote-access-ipsec-vpn-client        0            2           0    permanent
  remote-access-juniper-std             0            2           0    permanent

Licenses installed:
  License identifier: JUNOS422937473
  License version: 4
  Valid for device: CW4024AX0159
  Customer ID: KDDI ASIA PACIFIC PTE. LTD.
  Features:
    idp-sig          - IDP Signature
      date-based, 2024-12-27 00:00:00 UTC - 2030-01-26 00:00:00 UTC

root>

root> show version
Model: srx320
Junos: 21.4R3-S3.4
JUNOS Software Release [21.4R3-S3.4]




2. UTP 케이블을 노트북과 Juniper SRX Ge-0/0/3에 연결합니다.

그리고 노트북에 192.168.1.2 255.255.255.0 설정하고



Ping 192.168.1.1

C:\Users\admin>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64

Ping statistics for 192.168.1.1:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 2ms, Average = 1ms

C:\Users\admin>

C:\Users\admin>



3. ftp enable 합니다.

root# set system services ftp

[edit]
root# show system services
ftp;
ssh;
netconf {
    ssh;
}
dhcp-local-server {
    group jdhcp-group {
        interface irb.0;
    }
}
web-management {
    https {
        system-generated-certificate;
    }
}

[edit]
root# commit
commit complete

[edit]
root#



또는 GUI에서 아래와 같이 확인 가능 합니다.

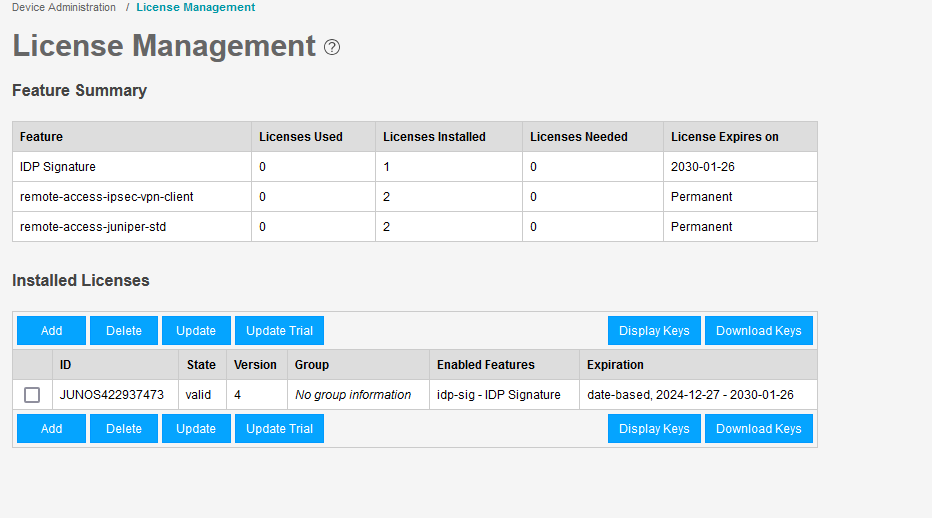

라이센스 정보 확인 합니다.



현재 SRX320 Firmware Version 확인





Currnet Version: 21.4R3-S3.4

Target Version: 23.4R2-S3



Firmware Upgrade Path

https://supportportal.juniper.net/s/article/Junos-upgrade-paths-for-SRX-platforms?language=en_US



CEC Juniper Community



supportportal.juniper.net



Upgrade table

To make it easy to lookup for each Junos release for SRX from which earlier releases it is supported to directly upgrade to it, please see the below table.

Before performing the upgrade, please make sure to check the Notes section below for possible caveats and limitations which may apply.


Target Junos releaseDirect upgrade supported from

24.4(*2) 24.2, 23.4, 23.2
24.2 23.4, 23.2, 22.4
23.4 23.2, 22.4, 22.3
23.2 22.4, 22.3, 22.2
22.4 22.3, 22.2, 22.1, 21.4
22.3 22.2, 22.1, 21.4
22.2 22.1, 21.4, 21.3, 21.2
22.1 21.4, 21.3, 21.2
21.4 21.3, 21.2, 21.1, 20.4
21.3 21.2, 21.1, 20.4
21.2 21.1, 20.4, 20.3, 20.2
21.1 20.4, 20.3, 20.2
20.4 20.3, 20.2, 20.1, 19.4
20.3 20.2, 20.1, 19.4
20.2 20.1, 19.4, 19.3, 19.2
20.1 19.4, 19.3, 19.2
19.4 19.3, 19.2, 19.1, 18.4, 15.1X49
19.3 19.2, 19.1, 18.4
19.2 19.1, 18.4, 18.3, 18.2
19.1 18.4, 18.3, 18.2
18.4 18.3, 18.2, 18.1, 17.4, 15.1X49
18.3 18.2, 18.1, 17.4
18.2 18.1, 17.4, 17.3
18.1 17.4, 17.3
17.4 17.3, 15.1X49
17.3 15.1X49
15.1X49 12.3X48



위에 정보를 확인한 결과

To upgrade your SRX device from Junos 21.4R3 to 23.4R2-S3
Path: 21.4R3 --> 22.4R3 --> 23.4R2-S3



Juniper 홈페이지에 접속해서 Firmware를 다운로드 합니다.

https://support.juniper.net/support/downloads/?p=srx320



Downloads

Help us improve your experience. Let us know what you think. Do you have time for a two-minute survey?

support.juniper.net

22.4R3.25 - Checksums 정보

MD5 : 22c2f625180aabe85f252f89c3f212d3
SHA1 : 6e5b2d2ef96227b1db95d265ba899854bd1b6c24
SHA256 : 12d7f2b8245c3f6610f34380a57a642d831aba83f6008b6929d3987737f93bf7
SHA512 : 024fd745d0d3e53daee5713e11aab9029ca9f9979d9b677be8e45f93446e7c2d0b228535291acdec9b3007d51f396ddd407786921cbd99be070212359edebfda



23.4R2.13 - Checksums 정보

MD5 : 18085ebeec8305f538226bd690b18954
SHA1 : 9eaa6ba139907f30863e8a53f9641ad206078d5e
SHA256 : 0728b9bf9c1576661b325a12d0fac7b5c3c2dd29dce184b9bcefca5ca4d973f8
SHA512 : 29d7c7676ca0bd8d8813f6ac2205eaf834ff0e7998ae7ff078f609630131c0136c105128707508e76e9b566ade07230af41256e6fcb0380b3977ea9a52bfdb06



Firmware업르게이드 하기전에 모든 Firmware Version를 다운로드 받았습니다.



winscp를 실행 합니다.



접속이 완료 되면 경로를 아래와 같이 합니다.

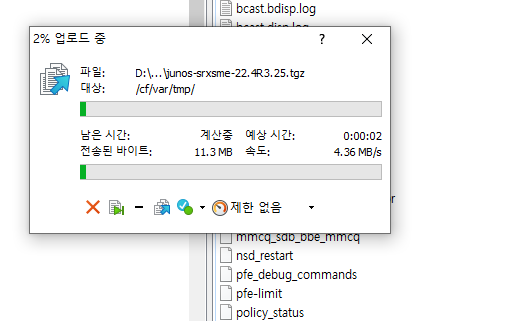

첫번째 이미지를 업로드 합니다.



파일이 업로드가 완료 되면 아래와 같이 명령어를 입력해서 확인 합니다.

root> file list /cf/var/tmp

/cf/var/tmp:
appidd_cust_app_trace
appidd_trace_debug
bcast.bdisp.log
bcast.disp.log
bcast.rstdisp.log
bcast.undisp.log
cleanup-pkgs.log
ebmq_authd_vty
eedebug_bin_file
install/
junos-srxsme-22.4R3.25.tgz
kmdchk.log
krt_rpf_filter.txt
mmcq_authd
mmcq_bbeStatsdGetCollector
mmcq_mmdb_rep_mmcq
mmcq_sdb_bbe_mmcq
nsd_restart
pfe-limit
pfe_debug_commands
phone-home/
pics/
policy_status
rtsdb/
sd-upgrade/
sec-download/
vi.recover/

root>



Firmware MD5 checksum 확인

root> file checksum md5 /cf/var/tmp/junos-srxsme-22.4R3.25.tgz               MD5 (/cf/var/tmp/junos-srxsme-22.4R3.25.tgz) = 22c2f625180aabe85f252f89c3f212d3

root>



1차로 21.4R3-S3.4 -> 22.4R3.25 업그레이드

아래처럼 입력 하고 업그레이드가 완료 될때가지 기다립니다.

root> request system software add /cf/var/tmp/junos-srxsme-22.4R3.25.tgz no-validate reboot
Formatting alternate root (/dev/da0s2a)...
/dev/da0s2a: 596.0MB (1220680 sectors) block size 16384, fragment size 2048
                using 4 cylinder groups of 149.02MB, 9537 blks, 19200 inodes.
super-block backups (for fsck -b #) at:
 32, 305216, 610400, 915584
saving package file in /var/sw/pkg ...
Installing package '/altroot/cf/packages/install-tmp/junos-22.4R3.25' ...
Verified junos-boot-srxsme-22.4R3.25.tgz signed by PackageProductionECP256_2024 method ECDSA256+SHA256
Verified junos-srxsme-22.4R3.25-domestic signed by PackageProductionECP256_2024 method ECDSA256+SHA256
Verified manifest signed by PackageProductionECP256_2024 method ECDSA256+SHA256
JUNOS 22.4R3.25 will become active at next reboot
Saving state for rollback ...
Rebooting ...
shutdown: [pid 6825]
Shutdown NOW!

*** FINAL System shutdown message from root@ ***

System going down IMMEDIATELY

부팅 과정 생략


Amnesiac (ttyu0)

login:



부팅이 완료 되면 로그인 합니다.

root> show version
Model: srx320
Junos: 22.4R3.25
JUNOS Software Release [22.4R3.25]

root> show system license
License usage:
                                 Licenses     Licenses    Licenses
                                  Feature      Feature     Feature
  Feature name                       used    installed      needed  Expiry
  idp-sig                               0            1           0    2030-01                          -26 00:00:00 UTC
  remote-access-ipsec-vpn-client        0            2           0    permane                          nt
  remote-access-juniper-std             0            2           0    permane                          nt

Licenses installed:
  License identifier:
  License version: 4
  Valid for device:
  Customer ID:
  Features:
    idp-sig          - IDP Signature
      date-based, 2024-12-27 00:00:00 UTC - 2030-01-26 00:00:00 UTC

root>



1차로 21.4R3-S3.4 -> 22.4R3.25 업그레이드 완료 되었습니다.



2차로 22.4R3.25 -> 23.4R2.13 업그레이드를 하겠습니다.



우선 파일을 srx에 업로드 합니다.



root> file list /cf/var/tmp

/cf/var/tmp:
appidd_cust_app_trace
appidd_trace_debug
bcast.bdisp.log
bcast.disp.log
bcast.rstdisp.log
bcast.undisp.log
cleanup-pkgs.log
dyn_filterd_trace_debug
ebmq_authd_vty
eedebug_bin_file
install/
junos-srxsme-22.4R3.25.tgz
junos-srxsme-23.4R2.13.tgz
kmdchk.log
krt_rpf_filter.txt
mmcq_authd
mmcq_bbeStatsdGetCollector
mmcq_mmdb_rep_mmcq
mmcq_sdb_bbe_mmcq
nsd_restart
pfe-limit
pfe_debug_commands
phone-home/
pics/
policy_status
rtsdb/
sd-upgrade/
sec-download/
vi.recover/


MD5 Check

root> file checksum md5 /cf/var/tmp/junos-srxsme-23.4R2.13.tgz
MD5 (/cf/var/tmp/junos-srxsme-23.4R2.13.tgz) = 18085ebeec8305f538226bd690b18954


Firmware Upgrade and check version

root> request system software add /cf/var/tmp/junos-srxsme-23.4R2.13.tgz no-validate reboot

부팅 과정 생략

root> show version
Model: srx320
Junos: 23.4R2.13
JUNOS Software Release [23.4R2.13]

root> show system license
License usage:
                                 Licensed     Licensed    Licensed
                                  Feature      Feature     Feature
  Feature name                       used    installed      needed    Expiry
  idp-sig                               0            1           0    2030-01-26 00:00:00 UTC
  remote-access-ipsec-vpn-client        0            2           0    permanent
  remote-access-juniper-std             0            2           0    permanent

Licenses installed:

  License identifier:
  License version: 4
  Valid for device:
  Customer ID:
  Features:
    idp-sig          - IDP Signature
      date-based, 2024-12-27 00:00:00 UTC - 2030-01-26 00:00:00 UTC

root>


지금까지 [2025][Juniper SRX #29] Firmware Upgrade - CLI 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 Juniper SRX DNAT에 대해서 알아보겠습니다.



User01 - 외부로 통신할때 SNAT 192.168.10.83으로 변환 됩니다.

User02 - 외부로 통신할때 SNAT 192.168.10.83으로 변환 됩니다.

untrust 192.168.10.85 으로 접속하면 20.1.1.1 으로 통신가능하게 DNAT를 설정하겠습니다.



1.SRX01 기본설정 입니다.

1-1 SRX 디폴트로 설정되어진 설정값을 삭제 합니다.


FreeBSD/amd64 (Amnesiac) (ttyu0)

login: root

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ # cli
root>

root>

root>

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit







1-2 Interface 설정


set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



1-3 Interface를 Zone에 할당하기. 그리고 system-services all로 설정

set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0



1-4 SRX에서 방화벽 정책 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit

set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit

set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit



2. HTTP SERVER 설정 - 저는 cisco router를 http enable 해서 http server로 사용하겠습니다

conf t
int g0/0
ip add 20.1.1.1 255.255.255.0
no sh
ip route 0.0.0.0 0.0.0.0 20.1.1.254
ip http server



R1#show
*Feb 14 05:15:18.099: %SYS-5-CONFIG_I: Configured from console by consoleip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         20.1.1.1        YES manual up                    up
GigabitEthernet0/1         unassigned      YES unset  administratively down down
GigabitEthernet0/2         unassigned      YES unset  administratively down down
GigabitEthernet0/3         unassigned      YES unset  administratively down down
R1#
R1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is 20.1.1.254 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 20.1.1.254
      20.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        20.1.1.0/24 is directly connected, GigabitEthernet0/0
L        20.1.1.1/32 is directly connected, GigabitEthernet0/0

R1#ping 20.1.1.254
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 20.1.1.254, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms
R1#



3. User01/ USer02 설정


USER01> ip 10.1.1.1/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.1 255.255.255.0 gateway 10.1.1.254

USER01 > save
Saving startup configuration to startup.vpc
.  done

USER01
USER01 > ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
USER01

USER02> ip 10.1.1.2/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.2 255.255.255.0 gateway 10.1.1.254

USER02 > save
Saving startup configuration to startup.vpc
.  done

USER02
USER02 > ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
USER02





PC에서 ping 8.8.8.8 시도

USER01> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout

USER02> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout




SRX에서 Source NAT (SNAT)가 설정 안되어져 있어서 통신이 불가능 합니다.

SRX에서 SNAT 설정

set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust

set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat pool source_nat


PC에서 다시 확인

USER01> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=56 time=10.328 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=5.192 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=5.557 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=5.158 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=4.425 ms

USER02> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=56 time=10.328 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=5.192 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=5.557 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=5.158 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=4.425 ms




방화벽에서 Session 확인하기

root> show security flow session
Session ID: 54102, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/54387 --> 8.8.8.8/12;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/12 --> 192.168.10.83/31714;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54103, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.2/54643 --> 8.8.8.8/8;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/8 --> 192.168.10.83/11101;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54104, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/54643 --> 8.8.8.8/13;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/13 --> 192.168.10.83/8139;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54105, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.2/54899 --> 8.8.8.8/9;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/9 --> 192.168.10.83/3136;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54106, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 4, Valid
  In: 10.1.1.1/54899 --> 8.8.8.8/14;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/14 --> 192.168.10.83/13674;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,
Total sessions: 5



제 PC에서도 PING를 시도 합니다.

Probing 192.168.10.85:80/tcp - No response - time=2001.746ms
Probing 192.168.10.85:80/tcp - No response - time=2003.928ms
Probing 192.168.10.85:80/tcp - No response - time=2013.536ms
Probing 192.168.10.85:80/tcp - No response - time=2006.107ms
Probing 192.168.10.85:80/tcp - No response - time=2006.452ms
Probing 192.168.10.85:80/tcp - No response - time=2005.353ms
Probing 192.168.10.85:80/tcp - No response - time=2012.393ms
Probing 192.168.10.85:80/tcp - No response - time=2012.957ms
Probing 192.168.10.85:80/tcp - No response - time=2008.528ms
Probing 192.168.10.85:80/tcp - No response - time=2011.220ms
Probing 192.168.10.85:80/tcp - No response - time=2008.000ms
Probing 192.168.10.85:80/tcp - No response - time=2008.216ms
Probing 192.168.10.85:80/tcp - No response - time=2004.983ms
Probing 192.168.10.85:80/tcp - No response - time=2000.407ms
Probing 192.168.10.85:80/tcp - No response - time=2005.790ms



우선 외부 untrust에서 dmz로 통신하기 위해서 방화벽 정책을 설정 합니다.

set security zones security-zone dmz address-book address dmz_server_01 20.1.1.1/32

set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match source-address any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match destination-address dmz_server_01
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match application any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server then permit



SRX에서 Proxy로 IP POOL에 사용하는 IP 주소를 설정 해야지 Ge-0/0/0가 ARP에 대해서 응답합니다.

set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.86



DESTINATION NAT 설정

set security nat destination pool web_server address 20.1.1.1/32

set security nat destination rule-set to_web_server from zone untrust
set security nat destination rule-set to_web_server rule web_server_incoming match destination-address 192.168.10.86/32
set security nat destination rule-set to_web_server rule web_server_incoming then destination-nat pool web_server



PC에서 통신을 확인 합니다.

정상적으로 통신 가능 합니다.

Probing 192.168.10.86:80/tcp - Port is open - time=23.372ms
Probing 192.168.10.86:80/tcp - Port is open - time=18.897ms
Probing 192.168.10.86:80/tcp - Port is open - time=14.309ms
Probing 192.168.10.86:80/tcp - Port is open - time=18.139ms
Probing 192.168.10.86:80/tcp - Port is open - time=23.166ms
Probing 192.168.10.86:80/tcp - Port is open - time=19.464ms
Probing 192.168.10.86:80/tcp - Port is open - time=18.645ms
Probing 192.168.10.86:80/tcp - Port is open - time=27.360ms
Probing 192.168.10.86:80/tcp - Port is open - time=19.947ms
Probing 192.168.10.86:80/tcp - Port is open - time=20.782ms



위와 같이 192.168.10.85 포트 80 또는 8000으로 20.1.1.1 80으로 통신 가능 합니다.



Interface 확인


root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.10.83/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     10.1.1.254/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     20.1.1.254/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down



Routing 확인

root> show route

inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:13:56
                    >  to 192.168.10.253 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/1.0
10.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/1.0
20.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/2.0
20.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/2.0
192.168.10.0/24    *[Direct/0] 00:13:56
                    >  via ge-0/0/0.0
192.168.10.83/32   *[Local/0] 00:13:56
                       Local via ge-0/0/0.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:30:41
                       MultiRecv

root>



Security Zone 확인

root> show security zones terse
Zone                        Type
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security


root> show security zones

Security zone: dmz
  Zone ID: 10
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/2.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/1.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No



방화벽 정책 확인


root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: trust, To zone: dmz
  Policy: trust_to_untrust, State: enabled, Index: 5, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: dmz, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: untrust, To zone: dmz
  Policy: untrust_to_dmz_web_server, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: dmz_server_01
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit

root>



방화벽 Hit Count 확인

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            untrust           trust_to_untrust 1942        Permit
2       trust            dmz               trust_to_untrust 0           Permit
3       untrust          dmz               untrust_to_dmz_web_server 844 Permit
4       dmz              untrust           trust_to_untrust 2010        Permit

Number of policy: 4

root>



방화벽 설정값

root> show configuration | display set | no-more
set version 21.3R1.9
set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security nat destination pool port_foward_server address 20.1.1.1/32
set security nat destination pool port_foward_server address port 80
set security nat destination pool web_server address 20.1.1.1/32
set security nat destination rule-set to_web_server from zone untrust
set security nat destination rule-set to_web_server rule port_forwarding match destination-address 192.168.10.85/32
set security nat destination rule-set to_web_server rule port_forwarding match destination-port 80
set security nat destination rule-set to_web_server rule port_forwarding match destination-port 8000
set security nat destination rule-set to_web_server rule port_forwarding then destination-nat pool port_foward_server
set security nat destination rule-set to_web_server rule web_server_incoming match destination-address 192.168.10.86/32
set security nat destination rule-set to_web_server rule web_server_incoming then destination-nat pool web_server
set security nat static rule-set static_nat_01 from zone untrust
set security nat static rule-set static_nat_01 rule auth_server match destination-address 192.168.10.84/32
set security nat static rule-set static_nat_01 rule auth_server then static-nat prefix 20.1.1.1/32
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.84/32
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.85/32
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.86/32
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match source-address any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match destination-address dmz_server_01
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match application any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz address-book address dmz_server_01 20.1.1.1/32
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0
set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253

root>




지금까지 [2025][Juniper SRX #27] Destination Nat - DNAT 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 Juniper SRX  Destination Nat - Port Forwarding 에 대해서 알아보겠습니다.



User01 - 외부로 통신할때 SNAT 192.168.10.83으로 변환 됩니다.

User02 - 외부로 통신할때 SNAT 192.168.10.83으로 변환 됩니다.

untrust 192.168.10.85:80 으로 접속하면 20.1.1.1:80으로 통신가능하게 DNAT를 설정하겠습니다.



1.SRX01 기본설정 입니다.

1-1 SRX 디폴트로 설정되어진 설정값을 삭제 합니다.


FreeBSD/amd64 (Amnesiac) (ttyu0)

login: root

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ # cli
root>

root>

root>

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit







1-2 Interface 설정


set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



1-3 Interface를 Zone에 할당하기. 그리고 system-services all로 설정

set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0



1-4 SRX에서 방화벽 정책 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit

set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit

set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit



2. HTTP SERVER 설정 - 저는 cisco router를 http enable 해서 http server로 사용하겠습니다

conf t
int g0/0
ip add 20.1.1.1 255.255.255.0
no sh
ip route 0.0.0.0 0.0.0.0 20.1.1.254
ip http server



R1#show
*Feb 14 05:15:18.099: %SYS-5-CONFIG_I: Configured from console by consoleip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         20.1.1.1        YES manual up                    up
GigabitEthernet0/1         unassigned      YES unset  administratively down down
GigabitEthernet0/2         unassigned      YES unset  administratively down down
GigabitEthernet0/3         unassigned      YES unset  administratively down down
R1#
R1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is 20.1.1.254 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 20.1.1.254
      20.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        20.1.1.0/24 is directly connected, GigabitEthernet0/0
L        20.1.1.1/32 is directly connected, GigabitEthernet0/0

R1#ping 20.1.1.254
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 20.1.1.254, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms
R1#



3. User01/ USer02 설정


USER01> ip 10.1.1.1/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.1 255.255.255.0 gateway 10.1.1.254

USER01 > save
Saving startup configuration to startup.vpc
.  done

USER01
USER01 > ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
USER01

USER02> ip 10.1.1.2/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.2 255.255.255.0 gateway 10.1.1.254

USER02 > save
Saving startup configuration to startup.vpc
.  done

USER02
USER02 > ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
USER02





PC에서 ping 8.8.8.8 시도

USER01> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout

USER02> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout




SRX에서 Source NAT (SNAT)가 설정 안되어져 있어서 통신이 불가능 합니다.

SRX에서 SNAT 설정

set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust

set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat pool source_nat


PC에서 다시 확인

USER01> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=56 time=10.328 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=5.192 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=5.557 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=5.158 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=4.425 ms

USER02> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=56 time=10.328 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=5.192 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=5.557 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=5.158 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=4.425 ms




방화벽에서 Session 확인하기

root> show security flow session
Session ID: 54102, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/54387 --> 8.8.8.8/12;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/12 --> 192.168.10.83/31714;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54103, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.2/54643 --> 8.8.8.8/8;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/8 --> 192.168.10.83/11101;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54104, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/54643 --> 8.8.8.8/13;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/13 --> 192.168.10.83/8139;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54105, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.2/54899 --> 8.8.8.8/9;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/9 --> 192.168.10.83/3136;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54106, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 4, Valid
  In: 10.1.1.1/54899 --> 8.8.8.8/14;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/14 --> 192.168.10.83/13674;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,
Total sessions: 5



제 PC에서도 PING를 시도 합니다.

Probing 192.168.10.85:80/tcp - No response - time=2001.746ms
Probing 192.168.10.85:80/tcp - No response - time=2003.928ms
Probing 192.168.10.85:80/tcp - No response - time=2013.536ms
Probing 192.168.10.85:80/tcp - No response - time=2006.107ms
Probing 192.168.10.85:80/tcp - No response - time=2006.452ms
Probing 192.168.10.85:80/tcp - No response - time=2005.353ms
Probing 192.168.10.85:80/tcp - No response - time=2012.393ms
Probing 192.168.10.85:80/tcp - No response - time=2012.957ms
Probing 192.168.10.85:80/tcp - No response - time=2008.528ms
Probing 192.168.10.85:80/tcp - No response - time=2011.220ms
Probing 192.168.10.85:80/tcp - No response - time=2008.000ms
Probing 192.168.10.85:80/tcp - No response - time=2008.216ms
Probing 192.168.10.85:80/tcp - No response - time=2004.983ms
Probing 192.168.10.85:80/tcp - No response - time=2000.407ms
Probing 192.168.10.85:80/tcp - No response - time=2005.790ms



우선 외부 untrust에서 dmz로 통신하기 위해서 방화벽 정책을 설정 합니다.

set security zones security-zone dmz address-book address dmz_server_01 20.1.1.1/32

set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match source-address any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match destination-address dmz_server_01
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match application any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server then permit



SRX에서 Proxy로 IP POOL에 사용하는 IP 주소를 설정 해야지 Ge-0/0/0가 ARP에 대해서 응답합니다.

set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.85



DESTINATION NAT 설정

set security nat destination pool port_foward_server address 20.1.1.1/32
set security nat destination pool port_foward_server address port 80

set security nat destination rule-set to_web_server from zone untrust
set security nat destination rule-set to_web_server rule port_forwarding match destination-address 192.168.10.85/32
set security nat destination rule-set to_web_server rule port_forwarding match destination-port 80
set security nat destination rule-set to_web_server rule port_forwarding then destination-nat pool port_foward_server



PC에서 통신을 확인 합니다.

정상적으로 통신 가능 합니다.

C:\Users\USER>tcping -t 192.168.10.85 80

** Pinging continuously.  Press control-c to stop **

Probing 192.168.10.85:80/tcp - Port is open - time=65.904ms
Probing 192.168.10.85:80/tcp - Port is open - time=15.969ms
Control-C



만약에 192.168.10.85:8000 -> 20.1.1.1:80으로 통신 하고 싶다면 아래와 같이 설정 합니다.

set security nat destination rule-set to_web_server01 rule port_forwarding match destination-port 8000



내 PC에서 통신 시도

C:\Users\USER>tcping -t 192.168.10.85 8000

** Pinging continuously.  Press control-c to stop **

Probing 192.168.10.85:8000/tcp - Port is open - time=14.496ms
Probing 192.168.10.85:8000/tcp - Port is open - time=17.589ms
Probing 192.168.10.85:8000/tcp - Port is open - time=13.039ms
Probing 192.168.10.85:8000/tcp - Port is open - time=15.563ms
Probing 192.168.10.85:8000/tcp - Port is open - time=15.389ms
Probing 192.168.10.85:8000/tcp - Port is open - time=13.528ms
Probing 192.168.10.85:8000/tcp - Port is open - time=11.238ms
Probing 192.168.10.85:8000/tcp - Port is open - time=14.091ms


C:\Users\USER>tcping -t 192.168.10.85 80

** Pinging continuously.  Press control-c to stop **

Probing 192.168.10.85:80/tcp - Port is open - time=55.989ms
Probing 192.168.10.85:80/tcp - Port is open - time=54.255ms
Probing 192.168.10.85:80/tcp - Port is open - time=19.360ms



위와 같이 192.168.10.85 포트 80 또는 8000으로 20.1.1.1 80으로 통신 가능 합니다.

root> show security nat destination summary
Total pools: 1
Pool name            Address                           Routing        Port  Total
                     Range                             Instance             Address
port_foward_server   20.1.1.1       - 20.1.1.1                        80    1

Total rules: 1
Rule name            Rule set       From                               Action
port_forwarding      to_web_server  untrust                            port_foward_server

root>

root> show security nat destination rule all
Total destination-nat rules: 1
Total referenced IPv4/IPv6 ip-prefixes: 1/0
Destination NAT rule: port_forwarding        Rule-set: to_web_server
  Rule-Id                    : 1
  Rule position              : 1
  From zone                  : untrust
    Destination addresses    : 192.168.10.85   - 192.168.10.85
    Destination port         : 80              - 80
                               8000            - 8000
  Action                     : port_foward_server
  Translation hits           : 106
    Successful sessions      : 106
  Number of sessions         : 0

root>



Interface 확인


root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.10.83/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     10.1.1.254/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     20.1.1.254/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down



Routing 확인

root> show route

inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:13:56
                    >  to 192.168.10.253 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/1.0
10.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/1.0
20.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/2.0
20.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/2.0
192.168.10.0/24    *[Direct/0] 00:13:56
                    >  via ge-0/0/0.0
192.168.10.83/32   *[Local/0] 00:13:56
                       Local via ge-0/0/0.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:30:41
                       MultiRecv

root>



Security Zone 확인

root> show security zones terse
Zone                        Type
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security


root> show security zones

Security zone: dmz
  Zone ID: 10
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/2.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/1.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No



방화벽 정책 확인


root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: trust, To zone: dmz
  Policy: trust_to_untrust, State: enabled, Index: 5, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: dmz, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: untrust, To zone: dmz
  Policy: untrust_to_dmz_web_server, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: dmz_server_01
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit

root>



방화벽 Hit Count 확인

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            untrust           trust_to_untrust 1942        Permit
2       trust            dmz               trust_to_untrust 0           Permit
3       untrust          dmz               untrust_to_dmz_web_server 844 Permit
4       dmz              untrust           trust_to_untrust 2010        Permit

Number of policy: 4

root>



방화벽 설정값

root> show configuration | display set | no-more
set version 21.3R1.9
set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security nat destination pool port_foward_server address 20.1.1.1/32
set security nat destination pool port_foward_server address port 80
set security nat destination rule-set to_web_server from zone untrust
set security nat destination rule-set to_web_server rule port_forwarding match destination-address 192.168.10.85/32
set security nat destination rule-set to_web_server rule port_forwarding match destination-port 80
set security nat destination rule-set to_web_server rule port_forwarding match destination-port 8000
set security nat destination rule-set to_web_server rule port_forwarding then destination-nat pool port_foward_server
set security nat static rule-set static_nat_01 from zone untrust
set security nat static rule-set static_nat_01 rule auth_server match destination-address 192.168.10.84/32
set security nat static rule-set static_nat_01 rule auth_server then static-nat prefix 20.1.1.1/32
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.84/32
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.85/32
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match source-address any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match destination-address dmz_server_01
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match application any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz address-book address dmz_server_01 20.1.1.1/32
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0
set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253

root>



지금까지 [2025][Juniper SRX #27]  Destination Nat - Port Forwarding 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 [2025][Juniper SRX #27] Static NAT - One to One NAT 설정해보겠습니다.



User01 - 10.1.1.1 Ge-0/0/0 192.168.10.83를 통해서 SNAT하고

User02 - 10.1.1.2 Ge-0/0/0 192.168.10.83를 통해서 SNAT하고
HTTP SERVER - 20.1.1.1에 static nat를 설정 하겠습니다.



외부에서 DMZ Server에 통신할때 192.168.10.84 -> 20.1.1.1 변경됩니다.

HTTP Server 20.1.1.1 외부로 통신할때 192.168.10.84로 변경 됩니다.



1.SRX01 기본설정 입니다.

1-1 SRX 디폴트로 설정되어진 설정값을 삭제 합니다.


FreeBSD/amd64 (Amnesiac) (ttyu0)

login: root

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ # cli
root>

root>

root>

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit







1-2 Interface 설정


set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



1-3 Interface를 Zone에 할당하기. 그리고 system-services all로 설정

set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0



1-4 SRX에서 방화벽 정책 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit

set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit

set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit



2. HTTP SERVER 설정 - 저는 cisco router를 http enable 해서 http server로 사용하겠습니다

conf t
int g0/0
ip add 20.1.1.1 255.255.255.0
no sh
ip route 0.0.0.0 0.0.0.0 20.1.1.254
ip http server



R1#show
*Feb 14 05:15:18.099: %SYS-5-CONFIG_I: Configured from console by consoleip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         20.1.1.1        YES manual up                    up
GigabitEthernet0/1         unassigned      YES unset  administratively down down
GigabitEthernet0/2         unassigned      YES unset  administratively down down
GigabitEthernet0/3         unassigned      YES unset  administratively down down
R1#
R1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is 20.1.1.254 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 20.1.1.254
      20.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        20.1.1.0/24 is directly connected, GigabitEthernet0/0
L        20.1.1.1/32 is directly connected, GigabitEthernet0/0

R1#ping 20.1.1.254
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 20.1.1.254, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms
R1#



3. User01/ USer02 설정


USER01> ip 10.1.1.1/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.1 255.255.255.0 gateway 10.1.1.254

USER01 > save
Saving startup configuration to startup.vpc
.  done

USER01
USER01 > ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
USER01

USER02> ip 10.1.1.2/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.2 255.255.255.0 gateway 10.1.1.254

USER02 > save
Saving startup configuration to startup.vpc
.  done

USER02
USER02 > ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
USER02





PC에서 ping 8.8.8.8 시도

USER01> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout

USER02> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout




SRX에서 Source NAT (SNAT)가 설정 안되어져 있어서 통신이 불가능 합니다.

SRX에서 SNAT 설정

set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust

set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat pool source_nat


PC에서 다시 확인

USER01> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=56 time=10.328 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=5.192 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=5.557 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=5.158 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=4.425 ms

USER02> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=56 time=10.328 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=5.192 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=5.557 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=5.158 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=4.425 ms




방화벽에서 Session 확인하기

root> show security flow session
Session ID: 54102, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/54387 --> 8.8.8.8/12;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/12 --> 192.168.10.83/31714;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54103, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.2/54643 --> 8.8.8.8/8;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/8 --> 192.168.10.83/11101;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54104, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/54643 --> 8.8.8.8/13;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/13 --> 192.168.10.83/8139;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54105, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.2/54899 --> 8.8.8.8/9;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/9 --> 192.168.10.83/3136;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 54106, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 4, Valid
  In: 10.1.1.1/54899 --> 8.8.8.8/14;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/14 --> 192.168.10.83/13674;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,
Total sessions: 5



DMZ에 20.1.1.1 서버에서 외부로 PING를 시도 합니다.

R1#ping 20.1.1.254
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 20.1.1.254, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/7 ms
R1#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
R1#



제 PC에서도 PING를 시도 합니다.

C:\Users\USER>ping 192.168.10.84

Ping 192.168.10.84 32바이트 데이터 사용:
요청 시간이 만료되었습니다.
요청 시간이 만료되었습니다.
요청 시간이 만료되었습니다.
요청 시간이 만료되었습니다.

192.168.10.84에 대한 Ping 통계:
    패킷: 보냄 = 4, 받음 = 0, 손실 = 4 (100% 손실),



One to One NAT ( Static NAT)를 사용 해서 192.168.10.84 <---> 20.1.1.1로  설정합니다.

서버는 외부 통신할때 Source IP 20.1.1.1 -> 192.168.10.84 변경됩니다.

외부에서 DMZ서버랑 통신 할때 Destination IP 192.168.10.84 -> 20.1.1.1 변경 됩니다.



우선 외부 untrust에서 dmz로 통신하기 위해서 방화벽 정책을 설정 합니다.

set security zones security-zone dmz address-book address dmz_server_01 20.1.1.1/32

set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match source-address any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match destination-address dmz_server_01
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match application any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server then permit



그 이유는 SRX에서 Proxy로 IP POOL에 사용하는 IP 주소를 설정 해야지 Ge-0/0/0가 ARP에 대해서 응답합니다.

set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.84



Static NAT 설정

set security nat static rule-set static_nat_01 from zone untrust
set security nat static rule-set static_nat_01 rule auth_server match destination-address 192.168.10.84/32
set security nat static rule-set static_nat_01 rule auth_server then static-nat prefix 20.1.1.1/32



WEB SERVER에서 외부로 PING

R1#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/3/6 ms
R1#



내 PC에서 통신 시도

C:\Users\USER>ping 192.168.10.84

Ping 192.168.10.84 32바이트 데이터 사용:
192.168.10.84의 응답: 바이트=32 시간=40ms TTL=253
192.168.10.84의 응답: 바이트=32 시간=163ms TTL=253
192.168.10.84의 응답: 바이트=32 시간=17ms TTL=253
192.168.10.84의 응답: 바이트=32 시간=11ms TTL=253

192.168.10.84에 대한 Ping 통계:
    패킷: 보냄 = 4, 받음 = 4, 손실 = 0 (0% 손실),
왕복 시간(밀리초):
    최소 = 11ms, 최대 = 163ms, 평균 = 57ms

C:\Users\USER>



내 피시에서 https://192.168.10.84 접속하면 아래처럼 페이지가 열립니다.

SRX session 확인

아래처럼 20.1.1.1은 192.168.10.84로 변환하여 통신하고 있는것을 확인 가능 합니다.

root> show security flow session
Session ID: 57417, Policy name: trust_to_untrust/6, State: Stand-alone, Timeout: 2, Valid
  In: 20.1.1.1/8 --> 8.8.8.8/0;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 100,
  Out: 8.8.8.8/0 --> 192.168.10.84/8;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 100,

Session ID: 57418, Policy name: trust_to_untrust/6, State: Stand-alone, Timeout: 2, Valid
  In: 20.1.1.1/8 --> 8.8.8.8/1;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 100,
  Out: 8.8.8.8/1 --> 192.168.10.84/8;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 100,



제 PC에서 192.168.10.84 통신 했을때, 20.1.1.1로 변경되는것을 확인 가능 합니다.

root> show security flow session
Session ID: 58466, Policy name: untrust_to_dmz_web_server/7, State: Stand-alone, Timeout: 2, Valid
  In: 172.16.10.20/3 --> 192.168.10.84/11434;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 20.1.1.1/11434 --> 172.16.10.20/3;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 60,

Session ID: 58467, Policy name: untrust_to_dmz_web_server/7, State: Stand-alone, Timeout: 2, Valid
  In: 172.16.10.20/3 --> 192.168.10.84/11436;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 20.1.1.1/11436 --> 172.16.10.20/3;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 60,

Session ID: 58468, Policy name: untrust_to_dmz_web_server/7, State: Stand-alone, Timeout: 4, Valid
  In: 172.16.10.20/3 --> 192.168.10.84/11438;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 20.1.1.1/11438 --> 172.16.10.20/3;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 60,
Total sessions: 3
root> show security nat static rule all
Total static-nat rules: 1
Total referenced IPv4/IPv6 ip-prefixes: 2/0
Static NAT rule: auth_server            Rule-set: static_nat_01
  Rule-Id                    : 1
  Rule position              : 1
  From zone                  : untrust
  Destination addresses      : 192.168.10.84
  Host addresses             : 20.1.1.1
  Netmask                    : 32
  Host routing-instance      : N/A
  Translation hits           : 2083
    Successful sessions      : 2083
  Number of sessions         : 4

root>



Interface 확인


root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.10.83/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     10.1.1.254/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     20.1.1.254/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down



Routing 확인

root> show route

inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:13:56
                    >  to 192.168.10.253 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/1.0
10.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/1.0
20.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/2.0
20.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/2.0
192.168.10.0/24    *[Direct/0] 00:13:56
                    >  via ge-0/0/0.0
192.168.10.83/32   *[Local/0] 00:13:56
                       Local via ge-0/0/0.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:30:41
                       MultiRecv

root>



Security Zone 확인

root> show security zones terse
Zone                        Type
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security


root> show security zones

Security zone: dmz
  Zone ID: 10
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/2.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/1.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No



방화벽 정책 확인


root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: trust, To zone: dmz
  Policy: trust_to_untrust, State: enabled, Index: 5, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: dmz, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: untrust, To zone: dmz
  Policy: untrust_to_dmz_web_server, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: dmz_server_01
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit

root>




방화벽 Hit Count 확인

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            untrust           trust_to_untrust 1942        Permit
2       trust            dmz               trust_to_untrust 0           Permit
3       untrust          dmz               untrust_to_dmz_web_server 196 Permit
4       dmz              untrust           trust_to_untrust 2010        Permit

Number of policy: 4

root>



방화벽 NAT 확인

root> show security nat source summary
Total port number usage for port translation pool: 64512
Maximum port number for port translation pool: 50331648
Total pools: 1
Pool                 Address                  Routing              PAT  Total
Name                 Range                    Instance                  Address
source_nat           192.168.10.84-192.168.10.84 default           yes  1

Total rules: 1
Rule name          Rule set       From              To                   Action
PAT-INTERFACE      SOURCE-NAT     trust             untrust              interface
                               ^
syntax error, expecting <command>.
root> show security nat source rule all
Total rules: 1
Total referenced IPv4/IPv6 ip-prefixes: 2/0
source NAT rule: PAT-INTERFACE          Rule-set: SOURCE-NAT
  Rule-Id                    : 1
  Rule position              : 1
  From zone                  : trust
  To zone                    : untrust
  Match
    Source addresses         : 10.1.1.0        - 10.1.1.255
    Destination addresses    : 0.0.0.0         - 255.255.255.255
  Action                        : interface
    Persistent NAT type         : N/A
    Persistent NAT mapping type : address-port-mapping
    Inactivity timeout          : 0
    Max session number          : 0
  Translation hits           : 1942
    Successful sessions      : 1942
  Number of sessions         : 0

root> show security nat static rule all
Total static-nat rules: 1
Total referenced IPv4/IPv6 ip-prefixes: 2/0
Static NAT rule: auth_server            Rule-set: static_nat_01
  Rule-Id                    : 1
  Rule position              : 1
  From zone                  : untrust
  Destination addresses      : 192.168.10.84
  Host addresses             : 20.1.1.1
  Netmask                    : 32
  Host routing-instance      : N/A
  Translation hits           : 2302
    Successful sessions      : 2302
  Number of sessions         : 5

root>



방화벽 설정값

root> show configuration | display set | no-more
set version 21.3R1.9
set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security nat static rule-set static_nat_01 from zone untrust
set security nat static rule-set static_nat_01 rule auth_server match destination-address 192.168.10.84/32
set security nat static rule-set static_nat_01 rule auth_server then static-nat prefix 20.1.1.1/32
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.84/32
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match source-address any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match destination-address dmz_server_01
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server match application any
set security policies from-zone untrust to-zone dmz policy untrust_to_dmz_web_server then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz address-book address dmz_server_01 20.1.1.1/32
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0
set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253

root>



지금까지 [2025][Juniper SRX #26] Source Nat - SNAT - IP Pool 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 Juniper SRX에서 Source NAT를 IP Pool에 대해서 설정해보겠습니다.



토폴로지는 아래와 같습니다.



Ge-0/0/0 192.168.10.83 IP를 사용하지 않고, 192.168.10.84 IP를 통해서 Trust / DMZ Traffic를 SNAT하겠습니다.



1.SRX01 기본설정 입니다.

1-1 SRX 디폴트로 설정되어진 설정값을 삭제 합니다.


FreeBSD/amd64 (Amnesiac) (ttyu0)

login: root

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ # cli
root>

root>

root>

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit







1-2 Interface 설정


set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



1-3 Interface를 Zone에 할당하기. 그리고 system-services all로 설정

set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0



1-4 SRX에서 방화벽 정책 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit

set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit

set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit



2. HTTP SERVER 설정 - 저는 cisco router를 http enable 해서 http server로 사용하겠습니다

conf t
int g0/0
ip add 20.1.1.1 255.255.255.0
no sh
ip route 0.0.0.0 0.0.0.0 20.1.1.254
ip http server



R1#show
*Feb 14 05:15:18.099: %SYS-5-CONFIG_I: Configured from console by consoleip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         20.1.1.1        YES manual up                    up
GigabitEthernet0/1         unassigned      YES unset  administratively down down
GigabitEthernet0/2         unassigned      YES unset  administratively down down
GigabitEthernet0/3         unassigned      YES unset  administratively down down
R1#
R1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is 20.1.1.254 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 20.1.1.254
      20.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        20.1.1.0/24 is directly connected, GigabitEthernet0/0
L        20.1.1.1/32 is directly connected, GigabitEthernet0/0

R1#ping 20.1.1.254
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 20.1.1.254, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms
R1#



3. PC 설정


VPCS> ip 10.1.1.1/24 10.1.1.254
Checking for duplicate address...
VPCS : 10.1.1.1 255.255.255.0 gateway 10.1.1.254

VPCS> save
Saving startup configuration to startup.vpc
.  done

VPCS>
VPCS> ping 10.1.1.254

84 bytes from 10.1.1.254 icmp_seq=1 ttl=64 time=0.418 ms
84 bytes from 10.1.1.254 icmp_seq=2 ttl=64 time=0.573 ms
84 bytes from 10.1.1.254 icmp_seq=3 ttl=64 time=0.539 ms
84 bytes from 10.1.1.254 icmp_seq=4 ttl=64 time=0.567 ms
^C
VPCS>





PC에서 ping 8.8.8.8 시도

VPCS> ping 8.8.8.8

8.8.8.8 icmp_seq=1 timeout
8.8.8.8 icmp_seq=2 timeout
8.8.8.8 icmp_seq=3 timeout
8.8.8.8 icmp_seq=4 timeout



SRX에서 Source NAT (SNAT)가 설정 안되어져 있어서 통신이 불가능 합니다.

SRX에서 SNAT 설정

set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone trust

set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat pool source_nat


PC에서 다시 확인

VPCS> ping 8.8.8.8

8.8.8.8 icmp_seq=621 timeout
8.8.8.8 icmp_seq=622 timeout
8.8.8.8 icmp_seq=623 timeout
8.8.8.8 icmp_seq=624 timeout
8.8.8.8 icmp_seq=625 timeout
8.8.8.8 icmp_seq=626 timeout
8.8.8.8 icmp_seq=627 timeout
8.8.8.8 icmp_seq=628 timeout
8.8.8.8 icmp_seq=629 timeout
8.8.8.8 icmp_seq=630 timeout
8.8.8.8 icmp_seq=631 timeout
8.8.8.8 icmp_seq=632 timeout
VPCS>



그 이유는 SRX에서 Proxy로 IP POOL에 사용하는 IP 주소를 설정 해야지 Ge-0/0/0가 ARP에 대해서 응답합니다.

set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.84



PC에서 다시 8.8.8.8 PING

VPCS> ping 8.8.8.8 -c 1000

8.8.8.8 icmp_seq=1 timeout
84 bytes from 8.8.8.8 icmp_seq=2 ttl=56 time=2.049 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=56 time=1.954 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=56 time=2.603 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=56 time=2.052 ms
84 bytes from 8.8.8.8 icmp_seq=6 ttl=56 time=2.130 ms
84 bytes from 8.8.8.8 icmp_seq=7 ttl=56 time=2.229 ms
84 bytes from 8.8.8.8 icmp_seq=8 ttl=56 time=2.078 ms
84 bytes from 8.8.8.8 icmp_seq=9 ttl=56 time=2.150 ms
84 bytes from 8.8.8.8 icmp_seq=10 ttl=56 time=2.061 ms
84 bytes from 8.8.8.8 icmp_seq=11 ttl=56 time=2.151 ms
84 bytes from 8.8.8.8 icmp_seq=12 ttl=56 time=2.173 ms
84 bytes from 8.8.8.8 icmp_seq=13 ttl=56 time=2.450 ms
84 bytes from 8.8.8.8 icmp_seq=14 ttl=56 time=2.411 ms
84 bytes from 8.8.8.8 icmp_seq=15 ttl=56 time=2.296 ms
84 bytes from 8.8.8.8 icmp_seq=16 ttl=56 time=2.049 ms
84 bytes from 8.8.8.8 icmp_seq=17 ttl=56 time=2.047 ms
84 bytes from 8.8.8.8 icmp_seq=18 ttl=56 time=2.101 ms



SRX session 확인

root> show security flow session
Session ID: 3402, Policy name: self-traffic-policy/1, State: Stand-alone, Timeout: 2, Valid
  In: 172.16.10.20/1 --> 192.168.10.83/2368;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 192.168.10.83/2368 --> 172.16.10.20/1;icmp, Conn Tag: 0x0, If: .local..0, Pkts: 1, Bytes: 60,

Session ID: 3403, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/37592 --> 8.8.8.8/64;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/64 --> 192.168.10.84/20216;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 3405, Policy name: self-traffic-policy/1, State: Stand-alone, Timeout: 2, Valid
  In: 172.16.10.20/1 --> 192.168.10.83/2369;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 192.168.10.83/2369 --> 172.16.10.20/1;icmp, Conn Tag: 0x0, If: .local..0, Pkts: 1, Bytes: 60,

Session ID: 3406, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 2, Valid
  In: 10.1.1.1/37848 --> 8.8.8.8/65;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/65 --> 192.168.10.84/30540;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 3408, Policy name: self-traffic-policy/1, State: Stand-alone, Timeout: 4, Valid
  In: 172.16.10.20/1 --> 192.168.10.83/2370;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 192.168.10.83/2370 --> 172.16.10.20/1;icmp, Conn Tag: 0x0, If: .local..0, Pkts: 1, Bytes: 60,

Session ID: 3409, Policy name: trust_to_untrust/4, State: Stand-alone, Timeout: 4, Valid
  In: 10.1.1.1/38104 --> 8.8.8.8/66;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 84,
  Out: 8.8.8.8/66 --> 192.168.10.84/22474;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 84,

Session ID: 3411, Policy name: self-traffic-policy/1, State: Stand-alone, Timeout: 4, Valid
  In: 172.16.10.20/1 --> 192.168.10.83/2371;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
  Out: 192.168.10.83/2371 --> 172.16.10.20/1;icmp, Conn Tag: 0x0, If: .local..0, Pkts: 1, Bytes: 60,
Total sessions: 7

root>



HTTP Server에서 Ping 8.8.8.8 시도

SRX DMZ SNAT 설정이 없어서 실패

R1#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
R1#



SRX에서 DMZ를 위해서 SNAT설정

set security nat source rule-set SOURCE-NAT from zone dmz
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 20.1.1.0/24



HTTP Server에서 Ping 시도

R1#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 3/4/6 ms
R1#



SRX에서 기본적인 부분 확인 Command



Interface 확인


root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.10.83/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     10.1.1.254/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     20.1.1.254/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down



Routing 확인

root> show route

inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:13:56
                    >  to 192.168.10.253 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/1.0
10.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/1.0
20.1.1.0/24        *[Direct/0] 00:13:56
                    >  via ge-0/0/2.0
20.1.1.254/32      *[Local/0] 00:13:56
                       Local via ge-0/0/2.0
192.168.10.0/24    *[Direct/0] 00:13:56
                    >  via ge-0/0/0.0
192.168.10.83/32   *[Local/0] 00:13:56
                       Local via ge-0/0/0.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:30:41
                       MultiRecv

root>



Security Zone 확인

root> show security zones terse
Zone                        Type
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security


root> show security zones

Security zone: dmz
  Zone ID: 10
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/2.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/1.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No



방화벽 정책 확인

root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: trust, To zone: dmz
  Policy: trust_to_untrust, State: enabled, Index: 5, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit
From zone: dmz, To zone: untrust
  Policy: trust_to_untrust, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit



방화벽 Hit Count 확인

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            untrust           trust_to_untrust 15          Permit
2       trust            dmz               trust_to_untrust 0           Permit
3       dmz              untrust           trust_to_untrust 10          Permit

Number of policy: 3

root>



방화벽 NAT 확인

root> show security nat source summary
Total pools: 0

Total rules: 1
Rule name          Rule set       From              To                   Action
PAT-INTERFACE      SOURCE-NAT     dmz               untrust              interface
PAT-INTERFACE                     trust


root> show security nat source rule all
Total rules: 1
Total referenced IPv4/IPv6 ip-prefixes: 3/0
source NAT rule: PAT-INTERFACE          Rule-set: SOURCE-NAT
  Rule-Id                    : 1
  Rule position              : 1
  From zone                  : dmz
                             : trust
  To zone                    : untrust
  Match
    Source addresses         : 10.1.1.0        - 10.1.1.255
                               20.1.1.0        - 20.1.1.255
    Destination addresses    : 0.0.0.0         - 255.255.255.255
  Action                        : interface
    Persistent NAT type         : N/A
    Persistent NAT mapping type : address-port-mapping
    Inactivity timeout          : 0
    Max session number          : 0
  Translation hits           : 10
    Successful sessions      : 10
  Number of sessions         : 0



방화벽 설정값

root> show configuration | display set | no-more
set version 21.3R1.9
set system root-authentication encrypted-password "$6$foWa5m5j$QTNzAZvC.AJNs4b9yJq/18Qp038uo2x6rPM/imUQn/M3hFIJsz5FxlOXdwq6iS2UG12O3SIpFdTzZBYi4wmkY1"
set security nat source pool source_nat address 192.168.10.84/32
set security nat source rule-set SOURCE-NAT from zone dmz
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 10.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 20.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat pool source_nat
set security nat proxy-arp interface ge-0/0/0.0 address 192.168.10.84/32
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone dmz policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone dmz policy trust_to_untrust match application any
set security policies from-zone trust to-zone dmz policy trust_to_untrust then permit
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust match application any
set security policies from-zone dmz to-zone untrust policy trust_to_untrust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz host-inbound-traffic system-services all
set security zones security-zone dmz host-inbound-traffic protocols all
set security zones security-zone dmz interfaces ge-0/0/2.0
set interfaces ge-0/0/0 unit 0 family inet address 192.168.10.83/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.254/24
set interfaces ge-0/0/2 unit 0 family inet address 20.1.1.254/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253

root>



지금까지 [2025][Juniper SRX #26] Source Nat - SNAT - IP Pool 글을 읽어주셔서 감사합니다.

안녕하세요.



이번에는 Juniper SRX S2S VPN 설정하고 Static Route대신 OSPF을 통해서 라우팅 테이블을 교환 하겠습니다.

실습을 위해서 기본 설정은 아래 글을 참고 부탁드립니다.



https://itblog-kr.tistory.com/196





1. 토폴로지는 아래와 같습니다.



SRX01 Ge-0/0/0 10.1.1.1 trust

SRX01 Ge-0/0/1 192.168.1.1 untrust

SRX02 Ge-0/0/0 20.1.1.1 trust

SRX02 Ge-0/0/1 192.168.2.1 untrust



S2S VPN 연결후 PC 192.168.1.10 <-> PC 192.168.2.10으로 통신이 가능 합니다.

2. SRX01 설정

2-1 Tunnel Interface 설정

set interfaces st0 unit 0 family inet address 1.1.1.1/30
set interfaces st0 unit 0 family inet mtu 1500
set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn host-inbound-traffic protocols all
set security zones security-zone vpn interfaces st0.0



2-2 Tunnel Interface통해서 상대방 라우팅을 교환하기 위해서 RIP 프로토콜을 설정합니다.

set protocols ospf area 0.0.0.0 interface st0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface st0.0 neighbor 1.1.1.2
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 passive
set routing-options router-id 1.1.1.1



2-3 IKE 설정

IKE POLICY Name: IKE-POLICY-S2SVPN-01

IKE GATEWAY Name:  IKE-GW-S2SVPN-01

Pre-share-Keys: juniper

set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text juniper
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 20.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0



2-4 IPSEC 설정

set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX01-TO-SRX02 bind-interface st0.0
set security ipsec vpn SRX01-TO-SRX02 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 establish-tunnels immediately



2-5 S2S VPN을 위한 방화벽 정책 설정

set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn interfaces st0.0

set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit

set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit



3 SRX02 설정

3-1 Tunnel Interface 설정

set interfaces st0 unit 0 family inet address 1.1.1.2/30
set interfaces st0 unit 0 family inet mtu 1500
set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn host-inbound-traffic protocols all
set security zones security-zone vpn interfaces st0.0



3-2 Tunnel Interface통해서 상대방 통신하기 위해서 RIP을 설정해서 라우팅을 교환 합니다.

set protocols ospf area 0.0.0.0 interface st0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface st0.0 neighbor 1.1.1.1
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 passive
set routing-options router-id 1.1.1.2



3-3 IKE 설정

IKE POLICY Name: IKE-POLICY-S2SVPN-01

IKE GATEWAY Name:  IKE-GW-S2SVPN-01

Pre-share-Keys: juniper

set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text juniper
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 10.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0



3-4 IPSEC 설정

set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX02-TO-SRX01 bind-interface st0.0
set security ipsec vpn SRX02-TO-SRX01 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 establish-tunnels immediately



3-5 S2S VPN을 위한 방화벽 정책 설정

set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn interfaces st0.0

set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit

set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit



OSPF 상태 확인

SRX01

root@SRX01> show ospf neighbor
Address          Interface              State           ID               Pri  Dead
1.1.1.2          st0.0                  Full            1.1.1.2          128    31

root@SRX01> show route

inet.0: 9 destinations, 10 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:50:07
                    >  to 10.1.1.254 via ge-0/0/0.0
1.1.1.0/30         *[Direct/0] 00:14:28
                    >  via st0.0
                    [OSPF/10] 00:14:24, metric 1
                    >  via st0.0
1.1.1.1/32         *[Local/0] 00:14:28
                       Local via st0.0
10.1.1.0/24        *[Direct/0] 00:50:07
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:50:07
                       Local via ge-0/0/0.0
192.168.1.0/24     *[Direct/0] 00:50:07
                    >  via ge-0/0/1.0
192.168.1.1/32     *[Local/0] 00:50:07
                       Local via ge-0/0/1.0
192.168.2.0/24     *[OSPF/10] 00:10:32, metric 2
                    >  via st0.0
224.0.0.5/32       *[OSPF/10] 00:14:29, metric 1
                       MultiRecv

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:51:09
                       MultiRecv

root@SRX01>



SRX02

root@SRX02> show ospf neighbor
Address          Interface              State           ID               Pri  Dead
1.1.1.1          st0.0                  Full            1.1.1.1          128    37

root@SRX02> show route

inet.0: 9 destinations, 10 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:50:23
                    >  to 20.1.1.254 via ge-0/0/0.0
1.1.1.0/30         *[Direct/0] 00:13:30
                    >  via st0.0
                    [OSPF/10] 00:13:26, metric 1
                    >  via st0.0
1.1.1.2/32         *[Local/0] 00:13:30
                       Local via st0.0
20.1.1.0/24        *[Direct/0] 00:50:23
                    >  via ge-0/0/0.0
20.1.1.1/32        *[Local/0] 00:50:23
                       Local via ge-0/0/0.0
192.168.1.0/24     *[OSPF/10] 00:10:54, metric 2
                    >  via st0.0
192.168.2.0/24     *[Direct/0] 00:50:23
                    >  via ge-0/0/1.0
192.168.2.1/32     *[Local/0] 00:50:23
                       Local via ge-0/0/1.0
224.0.0.5/32       *[OSPF/10] 00:13:31, metric 1
                       MultiRecv

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:51:27
                       MultiRecv

root@SRX02>



4. Test

PC01에서 PC02로 PING 192.168.2.10

PC02에서 PC01로 PING 192.168.1.10

PC01
84 bytes from 192.168.2.10 icmp_seq=105 ttl=62 time=12.610 ms
84 bytes from 192.168.2.10 icmp_seq=106 ttl=62 time=33.502 ms
84 bytes from 192.168.2.10 icmp_seq=107 ttl=62 time=3.875 ms
84 bytes from 192.168.2.10 icmp_seq=108 ttl=62 time=5.376 ms
84 bytes from 192.168.2.10 icmp_seq=109 ttl=62 time=3.175 ms
84 bytes from 192.168.2.10 icmp_seq=110 ttl=62 time=2.963 ms
84 bytes from 192.168.2.10 icmp_seq=111 ttl=62 time=3.547 ms
84 bytes from 192.168.2.10 icmp_seq=112 ttl=62 time=3.976 ms
84 bytes from 192.168.2.10 icmp_seq=113 ttl=62 time=3.358 ms
84 bytes from 192.168.2.10 icmp_seq=114 ttl=62 time=9.753 ms
84 bytes from 192.168.2.10 icmp_seq=115 ttl=62 time=3.128 ms
84 bytes from 192.168.2.10 icmp_seq=116 ttl=62 time=4.142 ms
84 bytes from 192.168.2.10 icmp_seq=117 ttl=62 time=3.175 ms
84 bytes from 192.168.2.10 icmp_seq=118 ttl=62 time=4.214 ms
84 bytes from 192.168.2.10 icmp_seq=119 ttl=62 time=3.807 ms
84 bytes from 192.168.2.10 icmp_seq=120 ttl=62 time=4.220 ms
84 bytes from 192.168.2.10 icmp_seq=121 ttl=62 time=7.300 ms
84 bytes from 192.168.2.10 icmp_seq=122 ttl=62 time=3.735 ms
84 bytes from 192.168.2.10 icmp_seq=123 ttl=62 time=5.798 ms
84 bytes from 192.168.2.10 icmp_seq=124 ttl=62 time=3.588 ms
84 bytes from 192.168.2.10 icmp_seq=125 ttl=62 time=3.750 ms
84 bytes from 192.168.2.10 icmp_seq=126 ttl=62 time=3.633 ms
84 bytes from 192.168.2.10 icmp_seq=127 ttl=62 time=2.710 ms
84 bytes from 192.168.2.10 icmp_seq=128 ttl=62 time=4.018 ms
84 bytes from 192.168.2.10 icmp_seq=129 ttl=62 time=3.169 ms
84 bytes from 192.168.2.10 icmp_seq=130 ttl=62 time=3.093 ms
84 bytes from 192.168.2.10 icmp_seq=131 ttl=62 time=3.001 ms
84 bytes from 192.168.2.10 icmp_seq=132 ttl=62 time=4.013 ms
84 bytes from 192.168.2.10 icmp_seq=133 ttl=62 time=3.296 ms
84 bytes from 192.168.2.10 icmp_seq=134 ttl=62 time=2.731 ms
84 bytes from 192.168.2.10 icmp_seq=135 ttl=62 time=3.164 ms
84 bytes from 192.168.2.10 icmp_seq=136 ttl=62 time=3.521 ms
84 bytes from 192.168.2.10 icmp_seq=137 ttl=62 time=3.264 ms
84 bytes from 192.168.2.10 icmp_seq=138 ttl=62 time=3.372 ms

PC02
84 bytes from 192.168.1.10 icmp_seq=96 ttl=62 time=11.549 ms
84 bytes from 192.168.1.10 icmp_seq=97 ttl=62 time=3.299 ms
84 bytes from 192.168.1.10 icmp_seq=98 ttl=62 time=4.139 ms
84 bytes from 192.168.1.10 icmp_seq=99 ttl=62 time=6.704 ms
84 bytes from 192.168.1.10 icmp_seq=100 ttl=62 time=7.948 ms
84 bytes from 192.168.1.10 icmp_seq=101 ttl=62 time=7.042 ms
84 bytes from 192.168.1.10 icmp_seq=102 ttl=62 time=8.883 ms
84 bytes from 192.168.1.10 icmp_seq=103 ttl=62 time=5.830 ms
84 bytes from 192.168.1.10 icmp_seq=104 ttl=62 time=3.864 ms
84 bytes from 192.168.1.10 icmp_seq=105 ttl=62 time=7.203 ms
84 bytes from 192.168.1.10 icmp_seq=106 ttl=62 time=5.233 ms
84 bytes from 192.168.1.10 icmp_seq=107 ttl=62 time=3.276 ms
84 bytes from 192.168.1.10 icmp_seq=108 ttl=62 time=3.849 ms
84 bytes from 192.168.1.10 icmp_seq=109 ttl=62 time=4.194 ms
84 bytes from 192.168.1.10 icmp_seq=110 ttl=62 time=3.221 ms
84 bytes from 192.168.1.10 icmp_seq=111 ttl=62 time=3.447 ms
84 bytes from 192.168.1.10 icmp_seq=112 ttl=62 time=4.475 ms
84 bytes from 192.168.1.10 icmp_seq=113 ttl=62 time=4.493 ms
84 bytes from 192.168.1.10 icmp_seq=114 ttl=62 time=3.987 ms
84 bytes from 192.168.1.10 icmp_seq=115 ttl=62 time=3.965 ms
84 bytes from 192.168.1.10 icmp_seq=116 ttl=62 time=3.814 ms
84 bytes from 192.168.1.10 icmp_seq=117 ttl=62 time=3.276 ms
84 bytes from 192.168.1.10 icmp_seq=118 ttl=62 time=3.454 ms
84 bytes from 192.168.1.10 icmp_seq=119 ttl=62 time=4.694 ms
84 bytes from 192.168.1.10 icmp_seq=120 ttl=62 time=4.093 ms
84 bytes from 192.168.1.10 icmp_seq=121 ttl=62 time=3.481 ms
84 bytes from 192.168.1.10 icmp_seq=122 ttl=62 time=5.376 ms
84 bytes from 192.168.1.10 icmp_seq=123 ttl=62 time=3.494 ms
84 bytes from 192.168.1.10 icmp_seq=124 ttl=62 time=4.032 ms
84 bytes from 192.168.1.10 icmp_seq=125 ttl=62 time=3.6



4. S2S VPN 상태 확인

SRX01



IKE Phase 1 UP이 표시 되면 IPSEC를 확인 합니다.

root@SRX01> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
5482273 UP     65c909f14f4d8824  7d74504d227553ca  Aggressive     20.1.1.1



IPSEC Phase2 아래처럼 터널이 생성 되었는지 확인

root@SRX01> show security ipsec security-associations
  Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:3des/sha1   fc12e938 3062/ unlim  -   root 500   20.1.1.1
  >131073 ESP:3des/sha1   49d44ef0 3062/ unlim  -   root 500   20.1.1.1



PC01에서 PC02로 무한으로 PING를 시도하고 Packet Count가 실제 올라가는지 확인 합니다



그리고 SRX01에서 아래 명령어로 확인

root@SRX01> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            70040
  Decrypted bytes:            41832
  Encrypted packets:            515
  Decrypted packets:            498
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX01>



10초뒤에 다시 똑같은 명령어를 입력하면 Packet Count가 증가하였습니다.

root@SRX01> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            77656
  Decrypted bytes:            46536
  Encrypted packets:            571
  Decrypted packets:            554
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX01>



PC02 -> PC01로 무한으로 PING를 시도합니다

SRX02에서 확인해보겠습니다.

IKE Phase 1 UP이 표시 되면 IPSEC를 확인 합니다.

root@SRX02> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
6514201 UP     65c909f14f4d8824  7d74504d227553ca  Aggressive     10.1.1.1

root@SRX02>



IPSEC Phase2 Tunnel이 생성되었습니다.

root@SRX02> show security ipsec security-associations
  Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:3des/sha1   49d44ef0 2678/ unlim  -   root 500   10.1.1.1
  >131073 ESP:3des/sha1   fc12e938 2678/ unlim  -   root 500   10.1.1.1

root@SRX02>



Packet Count를 확인 합니다

root@SRX02> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            87992
  Decrypted bytes:            55776
  Encrypted packets:            647
  Decrypted packets:            664
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX02>



10초뒤에 다시 한번 확인합니다

root@SRX02> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            90032
  Decrypted bytes:            57036
  Encrypted packets:            662
  Decrypted packets:            679
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX02>



라우팅 확인

SRX01





전체 설정

SRX01

root@SRX01> show configuration | display set | no-more
set version 21.3R1.9
set system host-name SRX01
set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text "$9$a-GjqTz6uORmfORhSMWJGD"
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 20.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0
set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX01-TO-SRX02 bind-interface st0.0
set security ipsec vpn SRX01-TO-SRX02 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 establish-tunnels immediately
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit
set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn host-inbound-traffic protocols all
set security zones security-zone vpn interfaces st0.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/24
set interfaces st0 unit 0 family inet mtu 1500
set interfaces st0 unit 0 family inet address 1.1.1.1/30
set protocols ospf area 0.0.0.0 interface st0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface st0.0 neighbor 1.1.1.2
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 passive
set routing-options router-id 1.1.1.1
set routing-options static route 0.0.0.0/0 next-hop 10.1.1.254


SRX02

root@SRX02> show configuration | display set | no-more
set version 21.3R1.9
set system host-name SRX02
set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text "$9$SY2lvLdb2GDkxNDk.P3nylK"
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 10.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0
set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX02-TO-SRX01 bind-interface st0.0
set security ipsec vpn SRX02-TO-SRX01 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 establish-tunnels immediately
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.2.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
 set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit
set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn host-inbound-traffic protocols all
set security zones security-zone vpn interfaces st0.0
set interfaces ge-0/0/0 unit 0 family inet address 20.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.2.1/24
set interfaces st0 unit 0 family inet mtu 1500
set interfaces st0 unit 0 family inet address 1.1.1.2/30
set protocols ospf area 0.0.0.0 interface st0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface st0.0 neighbor 1.1.1.1
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 passive
set routing-options router-id 1.1.1.2
set routing-options static route 0.0.0.0/0 next-hop 20.1.1.254

root@SRX02>



Router

hostname INT_R1
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
!
!
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
!
!
!
!
!
!
!
!
!
!
!
ip cef
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
redundancy
!
!

!
!
!
!
!
!
!
!
!
!
!
!
interface GigabitEthernet0/0
 ip address 10.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/1
 ip address 20.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/2
 ip address 192.168.10.99 255.255.255.0
 ip nat outside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/3
 no ip address
 shutdown
 duplex auto
 speed auto
 media-type rj45
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip nat inside source list 1 interface GigabitEthernet0/2 overload
ip route 0.0.0.0 0.0.0.0 192.168.10.253
!
ipv6 ioam timestamp
!
!
access-list 1 permit any
!



지금까지 [2025][Juniper SRX #23] site to site vpn - S2S VPN - OSPF 글을 읽어주셔서 감사합니다.



안녕하세요.



이번에는 Juniper SRX S2S VPN 설정하겠습니다.

실습을 위해서 기본 설정은 아래 글을 참고 부탁드립니다.



https://itblog-kr.tistory.com/196



1. 토폴로지는 아래와 같습니다.



SRX01 Ge-0/0/0 10.1.1.1 trust

SRX01 Ge-0/0/1 192.168.1.1 untrust

SRX02 Ge-0/0/0 20.1.1.1 trust

SRX02 Ge-0/0/1 192.168.2.1 untrust



S2S VPN 연결후 PC 192.168.1.10 <-> PC 192.168.2.10으로 통신이 가능 합니다.



2. SRX01 설정

2-1 Tunnel Interface 설정

set interfaces st0 unit 0 family inet



2-2 Tunnel Interface통해서 상대방 SRX02 내부 192.168.2.0/24로 Static Route 설정

set routing-options static route 192.168.2.0/24 next-hop st0.0



2-3 IKE 설정

IKE POLICY Name: IKE-POLICY-S2SVPN-01

IKE GATEWAY Name:  IKE-GW-S2SVPN-01

Pre-share-Keys: juniper

set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text juniper
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 20.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0



2-4 IPSEC 설정

set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX01-TO-SRX02 bind-interface st0.0
set security ipsec vpn SRX01-TO-SRX02 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 establish-tunnels immediately



2-5 S2S VPN을 위한 방화벽 정책 설정

set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn interfaces st0.0

set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit

set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit



3 SRX02 설정

3-1 Tunnel Interface 설정

set interfaces st0 unit 0 family inet



3-2 Tunnel Interface통해서 상대방 SRX02 내부 192.168.1.0/24로 Static Route 설정

set routing-options static route 192.168.1.0/24 next-hop st0.0



3-3 IKE 설정

IKE POLICY Name: IKE-POLICY-S2SVPN-01

IKE GATEWAY Name:  IKE-GW-S2SVPN-01

Pre-share-Keys: juniper

set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text juniper
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 10.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0



3-4 IPSEC 설정

set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX02-TO-SRX01 bind-interface st0.0
set security ipsec vpn SRX02-TO-SRX01 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 establish-tunnels immediately



3-5 S2S VPN을 위한 방화벽 정책 설정

set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn interfaces st0.0

set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit

set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit



4. Test

PC01에서 PC02로 PING 192.168.2.10

PC02에서 PC01로 PING 192.168.1.10

PC01
84 bytes from 192.168.2.10 icmp_seq=105 ttl=62 time=12.610 ms
84 bytes from 192.168.2.10 icmp_seq=106 ttl=62 time=33.502 ms
84 bytes from 192.168.2.10 icmp_seq=107 ttl=62 time=3.875 ms
84 bytes from 192.168.2.10 icmp_seq=108 ttl=62 time=5.376 ms
84 bytes from 192.168.2.10 icmp_seq=109 ttl=62 time=3.175 ms
84 bytes from 192.168.2.10 icmp_seq=110 ttl=62 time=2.963 ms
84 bytes from 192.168.2.10 icmp_seq=111 ttl=62 time=3.547 ms
84 bytes from 192.168.2.10 icmp_seq=112 ttl=62 time=3.976 ms
84 bytes from 192.168.2.10 icmp_seq=113 ttl=62 time=3.358 ms
84 bytes from 192.168.2.10 icmp_seq=114 ttl=62 time=9.753 ms
84 bytes from 192.168.2.10 icmp_seq=115 ttl=62 time=3.128 ms
84 bytes from 192.168.2.10 icmp_seq=116 ttl=62 time=4.142 ms
84 bytes from 192.168.2.10 icmp_seq=117 ttl=62 time=3.175 ms
84 bytes from 192.168.2.10 icmp_seq=118 ttl=62 time=4.214 ms
84 bytes from 192.168.2.10 icmp_seq=119 ttl=62 time=3.807 ms
84 bytes from 192.168.2.10 icmp_seq=120 ttl=62 time=4.220 ms
84 bytes from 192.168.2.10 icmp_seq=121 ttl=62 time=7.300 ms
84 bytes from 192.168.2.10 icmp_seq=122 ttl=62 time=3.735 ms
84 bytes from 192.168.2.10 icmp_seq=123 ttl=62 time=5.798 ms
84 bytes from 192.168.2.10 icmp_seq=124 ttl=62 time=3.588 ms
84 bytes from 192.168.2.10 icmp_seq=125 ttl=62 time=3.750 ms
84 bytes from 192.168.2.10 icmp_seq=126 ttl=62 time=3.633 ms
84 bytes from 192.168.2.10 icmp_seq=127 ttl=62 time=2.710 ms
84 bytes from 192.168.2.10 icmp_seq=128 ttl=62 time=4.018 ms
84 bytes from 192.168.2.10 icmp_seq=129 ttl=62 time=3.169 ms
84 bytes from 192.168.2.10 icmp_seq=130 ttl=62 time=3.093 ms
84 bytes from 192.168.2.10 icmp_seq=131 ttl=62 time=3.001 ms
84 bytes from 192.168.2.10 icmp_seq=132 ttl=62 time=4.013 ms
84 bytes from 192.168.2.10 icmp_seq=133 ttl=62 time=3.296 ms
84 bytes from 192.168.2.10 icmp_seq=134 ttl=62 time=2.731 ms
84 bytes from 192.168.2.10 icmp_seq=135 ttl=62 time=3.164 ms
84 bytes from 192.168.2.10 icmp_seq=136 ttl=62 time=3.521 ms
84 bytes from 192.168.2.10 icmp_seq=137 ttl=62 time=3.264 ms
84 bytes from 192.168.2.10 icmp_seq=138 ttl=62 time=3.372 ms

PC02
84 bytes from 192.168.1.10 icmp_seq=96 ttl=62 time=11.549 ms
84 bytes from 192.168.1.10 icmp_seq=97 ttl=62 time=3.299 ms
84 bytes from 192.168.1.10 icmp_seq=98 ttl=62 time=4.139 ms
84 bytes from 192.168.1.10 icmp_seq=99 ttl=62 time=6.704 ms
84 bytes from 192.168.1.10 icmp_seq=100 ttl=62 time=7.948 ms
84 bytes from 192.168.1.10 icmp_seq=101 ttl=62 time=7.042 ms
84 bytes from 192.168.1.10 icmp_seq=102 ttl=62 time=8.883 ms
84 bytes from 192.168.1.10 icmp_seq=103 ttl=62 time=5.830 ms
84 bytes from 192.168.1.10 icmp_seq=104 ttl=62 time=3.864 ms
84 bytes from 192.168.1.10 icmp_seq=105 ttl=62 time=7.203 ms
84 bytes from 192.168.1.10 icmp_seq=106 ttl=62 time=5.233 ms
84 bytes from 192.168.1.10 icmp_seq=107 ttl=62 time=3.276 ms
84 bytes from 192.168.1.10 icmp_seq=108 ttl=62 time=3.849 ms
84 bytes from 192.168.1.10 icmp_seq=109 ttl=62 time=4.194 ms
84 bytes from 192.168.1.10 icmp_seq=110 ttl=62 time=3.221 ms
84 bytes from 192.168.1.10 icmp_seq=111 ttl=62 time=3.447 ms
84 bytes from 192.168.1.10 icmp_seq=112 ttl=62 time=4.475 ms
84 bytes from 192.168.1.10 icmp_seq=113 ttl=62 time=4.493 ms
84 bytes from 192.168.1.10 icmp_seq=114 ttl=62 time=3.987 ms
84 bytes from 192.168.1.10 icmp_seq=115 ttl=62 time=3.965 ms
84 bytes from 192.168.1.10 icmp_seq=116 ttl=62 time=3.814 ms
84 bytes from 192.168.1.10 icmp_seq=117 ttl=62 time=3.276 ms
84 bytes from 192.168.1.10 icmp_seq=118 ttl=62 time=3.454 ms
84 bytes from 192.168.1.10 icmp_seq=119 ttl=62 time=4.694 ms
84 bytes from 192.168.1.10 icmp_seq=120 ttl=62 time=4.093 ms
84 bytes from 192.168.1.10 icmp_seq=121 ttl=62 time=3.481 ms
84 bytes from 192.168.1.10 icmp_seq=122 ttl=62 time=5.376 ms
84 bytes from 192.168.1.10 icmp_seq=123 ttl=62 time=3.494 ms
84 bytes from 192.168.1.10 icmp_seq=124 ttl=62 time=4.032 ms
84 bytes from 192.168.1.10 icmp_seq=125 ttl=62 time=3.6



4. S2S VPN 상태 확인

SRX01



IKE Phase 1 UP이 표시 되면 IPSEC를 확인 합니다.

root@SRX01> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
5482273 UP     65c909f14f4d8824  7d74504d227553ca  Aggressive     20.1.1.1



IPSEC Phase2 아래처럼 터널이 생성 되었는지 확인

root@SRX01> show security ipsec security-associations
  Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:3des/sha1   fc12e938 3062/ unlim  -   root 500   20.1.1.1
  >131073 ESP:3des/sha1   49d44ef0 3062/ unlim  -   root 500   20.1.1.1



PC01에서 PC02로 무한으로 PING를 시도하고 Packet Count가 실제 올라가는지 확인 합니다



그리고 SRX01에서 아래 명령어로 확인

root@SRX01> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            70040
  Decrypted bytes:            41832
  Encrypted packets:            515
  Decrypted packets:            498
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX01>



10초뒤에 다시 똑같은 명령어를 입력하면 Packet Count가 증가하였습니다.

root@SRX01> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            77656
  Decrypted bytes:            46536
  Encrypted packets:            571
  Decrypted packets:            554
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX01>



PC02 -> PC01로 무한으로 PING를 시도합니다

SRX02에서 확인해보겠습니다.

IKE Phase 1 UP이 표시 되면 IPSEC를 확인 합니다.

root@SRX02> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
6514201 UP     65c909f14f4d8824  7d74504d227553ca  Aggressive     10.1.1.1

root@SRX02>



IPSEC Phase2 Tunnel이 생성되었습니다.

root@SRX02> show security ipsec security-associations
  Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:3des/sha1   49d44ef0 2678/ unlim  -   root 500   10.1.1.1
  >131073 ESP:3des/sha1   fc12e938 2678/ unlim  -   root 500   10.1.1.1

root@SRX02>



Packet Count를 확인 합니다

root@SRX02> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            87992
  Decrypted bytes:            55776
  Encrypted packets:            647
  Decrypted packets:            664
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX02>



10초뒤에 다시 한번 확인합니다

root@SRX02> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:            90032
  Decrypted bytes:            57036
  Encrypted packets:            662
  Decrypted packets:            679
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@SRX02>



전체 설정

SRX01

root@SRX01> show configuration | display set | no-more
set version 21.3R1.9
set system host-name SRX01
set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text "$9$a-GjqTz6uORmfORhSMWJGD"
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 20.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0
set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX01-TO-SRX02 bind-interface st0.0
set security ipsec vpn SRX01-TO-SRX02 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX01-TO-SRX02 establish-tunnels immediately
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit
set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn interfaces st0.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/24
set interfaces st0 unit 0 family inet
set routing-options static route 0.0.0.0/0 next-hop 10.1.1.254
set routing-options static route 192.168.2.0/24 next-hop st0.0

root@SRX01>


SRX02

root@SRX02> show configuration | display set | no-more
set version 21.3R1.9
set system host-name SRX02
set security ike proposal standard authentication-method pre-shared-keys
set security ike policy IKE-POLICY-S2SVPN-01 mode aggressive
set security ike policy IKE-POLICY-S2SVPN-01 proposals standard
set security ike policy IKE-POLICY-S2SVPN-01 pre-shared-key ascii-text "$9$SY2lvLdb2GDkxNDk.P3nylK"
set security ike gateway IKE-GW-S2SVPN-01 ike-policy IKE-POLICY-S2SVPN-01
set security ike gateway IKE-GW-S2SVPN-01 address 10.1.1.1
set security ike gateway IKE-GW-S2SVPN-01 external-interface ge-0/0/0
set security ipsec proposal standard
set security ipsec policy IPSEC-POLICY-S2SVPN-01 proposals standard
set security ipsec vpn SRX02-TO-SRX01 bind-interface st0.0
set security ipsec vpn SRX02-TO-SRX01 ike gateway IKE-GW-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 ike ipsec-policy IPSEC-POLICY-S2SVPN-01
set security ipsec vpn SRX02-TO-SRX01 establish-tunnels immediately
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.2.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security policies from-zone trust to-zone vpn policy trust-to-vpn match source-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match destination-address any
set security policies from-zone trust to-zone vpn policy trust-to-vpn match application any
set security policies from-zone trust to-zone vpn policy trust-to-vpn then permit
set security policies from-zone vpn to-zone trust policy vpn-to-trust match source-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match destination-address any
set security policies from-zone vpn to-zone trust policy vpn-to-trust match application any
set security policies from-zone vpn to-zone trust policy vpn-to-trust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone vpn host-inbound-traffic system-services all
set security zones security-zone vpn interfaces st0.0
set interfaces ge-0/0/0 unit 0 family inet address 20.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.2.1/24
set interfaces st0 unit 0 family inet
set routing-options static route 0.0.0.0/0 next-hop 20.1.1.254
set routing-options static route 192.168.1.0/24 next-hop st0.0

root@SRX02>



Router

hostname INT_R1
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
!
!
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
!
!
!
!
!
!
!
!
!
!
!
ip cef
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
redundancy
!
!

!
!
!
!
!
!
!
!
!
!
!
!
interface GigabitEthernet0/0
 ip address 10.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/1
 ip address 20.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/2
 ip address 192.168.10.99 255.255.255.0
 ip nat outside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/3
 no ip address
 shutdown
 duplex auto
 speed auto
 media-type rj45
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip nat inside source list 1 interface GigabitEthernet0/2 overload
ip route 0.0.0.0 0.0.0.0 192.168.10.253
!
ipv6 ioam timestamp
!
!
access-list 1 permit any
!



지금까지 [2025][Juniper SRX #23] site to site vpn - S2S VPN 글을 읽어주셔서 감사합니다.



안녕하세요.



오늘은 Juniper SRX에서 Site to Site VPN 설정에 대해서 알아보겠습니다.



EVE-NG에서 토폴로지는 아래와 같이 구성하였습니다.



위에 테스트 구성을 하기 위해서는 아래 글을 참고 부탁드립니다.

1. EVE_NG 설치

https://itblog-kr.tistory.com/11



[2024][EVE-NG #1] 네트워크 시뮬레이션 EVE-NG 설치하기(VMware Workstation)

안녕하세요. 오늘은 주제는 [2024][EVE-NG #1] 네트워크 시뮬레이션 EVE-NG 설치하기(VMware Workstation)입니다.   EVE-NG를 설치하기 전에 EVE-NG가 무엇인지 궁금하신 분은 아래 블로그 글을 참조 부탁드립

itblog-kr.tistory.com



2. Router 설치

https://itblog-kr.tistory.com/6



[EVE-NG #6] vIOS cisco 라우터 설치하기

안녕하세요. 이번에는 EVE-NG안에 vIOS cisco라우터를 설치해보겠습니다. EVE-NG가 설치가 않되어져 있다면 아래 블로그를 참조하여 EVE-NG부터 설치하시길 바랍니다. VirtualBox(무료) 가상화 프로그램을

itblog-kr.tistory.com

3. SRX설치

https://itblog-kr.tistory.com/26



[2024][EVE-NG #14] Juniper SRX 방화벽 설치하기

안녕하세요. 오늘은 [2024][EVE-NG #14] Juniper SRX 방화벽 설치하기입니다. 1. eve-ng 공식 홈페이지 관련 내용입니다. https://www.eve-ng.net/index.php/documentation/howtos/howto-add-juniper-vsrx-ng-15-x-and-later/ Juniper vSR

itblog-kr.tistory.com



4. VPC설치

https://itblog-kr.tistory.com/59



[2024][EVE-NG #18] Virtual PC(VPCS)

안녕하세요. 이번에는 EVE-NG에서 VPC에 대해서 알아보도록 하겠습니다. 테스트 할때 간단하게 Ping을 위해서 PC를 만들고 싶을때가 있습니다. 그렇다고 라우터나 스위치 또는 윈도우 PC를 두기에

itblog-kr.tistory.com



실습 준비가 완료 되었으면 주니퍼 SRX site to site vpn를 테스트 하겠습니다.



1. Router 설정

Router#
Router#conf t
Router(config)#ho INT_R1
INT_R1(config)#int g0/2
INT_R1(config-if)#ip add 192.168.10.99 255.255.255.0
INT_R1(config-if)#no sh
INT_R1(config-if)#int g0/0
INT_R1(config-if)#ip add 10.1.1.254 255.255.255.0
INT_R1(config-if)#no sh
INT_R1(config-if)#int g0/1
INT_R1(config-if)#ip add 20.1.1.254 255.255.255.0
INT_R1(config-if)#no sh
INT_R1(config-if)#end

INT_R1#conf t
INT_R1(config)#ip route 0.0.0.0 0.0.0.0 192.168.10.253



1-1 NAT 설정

INT_R1#conf t
INT_R1(config)#access-list 1 permit any
INT_R1(config)#int g0/2
INT_R1(config-if)#ip nat  out
INT_R1(config-if)#int g0/0
INT_R1(config-if)#ip nat inside
INT_R1(config-if)#int g0/1
INT_R1(config-if)#ip nat inside
INT_R1(config-if)#end
INT_R1(config)#ip nat inside source list 1 interface g0/2 overload
INT_R1(config)#



1-2 Ping Test

INT_R1#show ip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         10.1.1.254      YES manual up                    up
GigabitEthernet0/1         20.1.1.254      YES manual up                    up
GigabitEthernet0/2         192.168.10.99   YES manual up                    up
GigabitEthernet0/3         unassigned      YES unset  administratively down down
NVI0                       10.1.1.254      YES unset  up                    up
INT_R1#
INT_R1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR

Gateway of last resort is 192.168.10.253 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 192.168.10.253
      10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        10.1.1.0/24 is directly connected, GigabitEthernet0/0
L        10.1.1.254/32 is directly connected, GigabitEthernet0/0
      20.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        20.1.1.0/24 is directly connected, GigabitEthernet0/1
L        20.1.1.254/32 is directly connected, GigabitEthernet0/1
      192.168.10.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.10.0/24 is directly connected, GigabitEthernet0/2
L        192.168.10.99/32 is directly connected, GigabitEthernet0/2
INT_R1#
INT_R1#
INT_R1#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 5/6/10 ms
INT_R1#ping 8.8.8.8 sou
INT_R1#ping 8.8.8.8 source g0/0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 10.1.1.254
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/3/4 ms
INT_R1#ping 8.8.8.8 source g0/1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 20.1.1.254
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/3/8 ms
INT_R1#



2. SRX01 기본 설정

ge-0/0/0 - 10.1.1.1

ge-0/0/1 - 192.168.1.1



2-1 기본설정값을 모두 삭제

root@:~ # cli
root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# cin
      ^
unknown command.
root# commit
commit complete

[edit]
root#



2-2 기본설정

set system host-name SRX01
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/24
set routing-options static route 0.0.0.0/0 next-hop 10.1.1.254



2-3 방화벽 정책 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit



2-4 NAT 설정

set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface



2-5 확인

root@SRX01> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     10.1.1.1/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     192.168.1.1/24
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root@SRX01> show route

inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:02:39
                    >  to 10.1.1.254 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:02:40
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:02:40
                       Local via ge-0/0/0.0
192.168.1.0/24     *[Direct/0] 00:02:39
                    >  via ge-0/0/1.0
192.168.1.1/32     *[Local/0] 00:02:39
                       Local via ge-0/0/1.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:07:11
                       MultiRecv


root@SRX01> show security zones

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/1.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

root@SRX01> show security nat source summary
Total pools: 0

Total rules: 1
Rule name          Rule set       From              To                   Action
PAT-INTERFACE      SOURCE-NAT     trust             untrust              interface

root@SRX01> show security nat source rule all
Total rules: 1
Total referenced IPv4/IPv6 ip-prefixes: 2/0
source NAT rule: PAT-INTERFACE          Rule-set: SOURCE-NAT
  Rule-Id                    : 1
  Rule position              : 1
  From zone                  : trust
  To zone                    : untrust
  Match
    Source addresses         : 192.168.1.0     - 192.168.1.255
    Destination addresses    : 0.0.0.0         - 255.255.255.255
  Action                        : interface
    Persistent NAT type         : N/A
    Persistent NAT mapping type : address-port-mapping
    Inactivity timeout          : 0
    Max session number          : 0
  Translation hits           : 10
    Successful sessions      : 10
  Number of sessions         : 0

root@SRX01>



3. PC01 설정



VPCS>
VPCS> ip 192.168.1.10/24 192.168.1.1
Checking for duplicate address...
VPCS : 192.168.1.10 255.255.255.0 gateway 192.168.1.1

VPCS> save
Saving startup configuration to startup.vpc
.  done

VPCS>





3-1 Ping 테스트

VPCS>
VPCS> ping 192.168.1.1

84 bytes from 192.168.1.1 icmp_seq=1 ttl=64 time=471.943 ms
84 bytes from 192.168.1.1 icmp_seq=2 ttl=64 time=0.827 ms
84 bytes from 192.168.1.1 icmp_seq=3 ttl=64 time=0.941 ms
84 bytes from 192.168.1.1 icmp_seq=4 ttl=64 time=0.788 ms
84 bytes from 192.168.1.1 icmp_seq=5 ttl=64 time=0.803 ms
^C
VPCS> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=115 time=29.083 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=115 time=5.006 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=115 time=5.656 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=115 time=5.298 ms
84 bytes from 8.8.8.8 icmp_seq=5 ttl=115 time=5.411 ms
^C
VPCS>





4. SRX02 설정



Ge-0/0/0 20.1.1.1/24

Ge-0/0/1 192.168.2.1/24



4-1 기본설정값 삭제

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit
commit complete

[edit]
root#



4-2 기본 설정

set system host-name SRX02
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 20.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.2.1/24
set routing-options static route 0.0.0.0/0 next-hop 20.1.1.254



4-3 방화벽 정책 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit



4-4 NAT 설정

set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.2.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface



4-5 확인

root@SRX02> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     20.1.1.1/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     192.168.2.1/24
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root@SRX02> show route

inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:01:44
                    >  to 20.1.1.254 via ge-0/0/0.0
20.1.1.0/24        *[Direct/0] 00:01:45
                    >  via ge-0/0/0.0
20.1.1.1/32        *[Local/0] 00:01:45
                       Local via ge-0/0/0.0
192.168.2.0/24     *[Direct/0] 00:01:44
                    >  via ge-0/0/1.0
192.168.2.1/32     *[Local/0] 00:01:44
                       Local via ge-0/0/1.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:18:00
                       MultiRecv

root@SRX02>

root@SRX02> show security zones

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/1.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

root@SRX02>

root@SRX02> show security zones terse
Zone                        Type
trust                       Security
untrust                     Security
junos-host                  Security

root@SRX02>



root@SRX02> ping 10.1.1.254
PING 10.1.1.254 (10.1.1.254): 56 data bytes
64 bytes from 10.1.1.254: icmp_seq=0 ttl=255 time=285.562 ms
64 bytes from 10.1.1.254: icmp_seq=1 ttl=255 time=4.858 ms
64 bytes from 10.1.1.254: icmp_seq=2 ttl=255 time=4.057 ms
64 bytes from 10.1.1.254: icmp_seq=3 ttl=255 time=3.332 ms
64 bytes from 10.1.1.254: icmp_seq=4 ttl=255 time=3.799 ms
^C
--- 10.1.1.254 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 3.332/60.322/285.562/112.621 ms

root@SRX02> ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8): 56 data bytes
64 bytes from 8.8.8.8: icmp_seq=0 ttl=116 time=5.710 ms
64 bytes from 8.8.8.8: icmp_seq=1 ttl=116 time=3.859 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=116 time=4.569 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=116 time=4.114 ms
^C
--- 8.8.8.8 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max/stddev = 3.859/4.563/5.710/0.709 ms



4-6 PC2 설정

VPCS> 192.168.2.10/24 192.168.2.1
Bad command: "192.168.2.10/24 192.168.2.1". Use ? for help.

VPCS> ip 192.168.2.10/24 192.168.2.1
Checking for duplicate address...
VPCS : 192.168.2.10 255.255.255.0 gateway 192.168.2.1

VPCS> save
Saving startup configuration to startup.vpc
.  done

VPCS> ping 192.168.2.1

192.168.2.1 icmp_seq=1 timeout
84 bytes from 192.168.2.1 icmp_seq=2 ttl=64 time=0.764 ms
84 bytes from 192.168.2.1 icmp_seq=3 ttl=64 time=0.610 ms
84 bytes from 192.168.2.1 icmp_seq=4 ttl=64 time=0.833 ms
84 bytes from 192.168.2.1 icmp_seq=5 ttl=64 time=0.984 ms

VPCS> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=115 time=33.537 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=115 time=6.485 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=115 time=5.357 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=115 time=6.767 ms
^C
VPCS>



5. SRX01 -> SRX02 WAN포트로 통신

    SRX02 -> SRX01 WAN포트로 통신

root@SRX01> ping 20.1.1.1
PING 20.1.1.1 (20.1.1.1): 56 data bytes
64 bytes from 20.1.1.1: icmp_seq=0 ttl=63 time=5.115 ms
64 bytes from 20.1.1.1: icmp_seq=1 ttl=63 time=3.391 ms
64 bytes from 20.1.1.1: icmp_seq=2 ttl=63 time=3.597 ms
64 bytes from 20.1.1.1: icmp_seq=3 ttl=63 time=5.333 ms
^C
--- 20.1.1.1 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max/stddev = 3.391/4.359/5.333/0.871 ms

root@SRX01>

root@SRX02> ping 10.1.1.1
PING 10.1.1.1 (10.1.1.1): 56 data bytes
64 bytes from 10.1.1.1: icmp_seq=0 ttl=63 time=6.687 ms
64 bytes from 10.1.1.1: icmp_seq=1 ttl=63 time=7.102 ms
64 bytes from 10.1.1.1: icmp_seq=2 ttl=63 time=4.646 ms
64 bytes from 10.1.1.1: icmp_seq=3 ttl=63 time=2.458 ms
64 bytes from 10.1.1.1: icmp_seq=4 ttl=63 time=5.987 ms
^C
--- 10.1.1.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 2.458/5.376/7.102/1.680 ms

root@SRX02>



Full configration

SRX01

root@SRX01> show configuration | display set | no-more
set version 21.3R1.9
set system host-name SRX01
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/24
set routing-options static route 0.0.0.0/0 next-hop 10.1.1.254


SRX02

root@SRX02> show configuration | display set | no-more
set version 21.3R1.9
set system host-name SRX02
set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 192.168.2.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface
set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 20.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 192.168.2.1/24
set routing-options static route 0.0.0.0/0 next-hop 20.1.1.254

root@SRX02>



Router 설정

hostname INT_R1
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
!
!
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
!
!
!
!
!
!
!
!
!
!
!
ip cef
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
redundancy
!
!

!
!
!
!
!
!
!
!
!
!
!
!
interface GigabitEthernet0/0
 ip address 10.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/1
 ip address 20.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/2
 ip address 192.168.10.99 255.255.255.0
 ip nat outside
 ip virtual-reassembly in
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/3
 no ip address
 shutdown
 duplex auto
 speed auto
 media-type rj45
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip nat inside source list 1 interface GigabitEthernet0/2 overload
ip route 0.0.0.0 0.0.0.0 192.168.10.253
!
ipv6 ioam timestamp
!
!
access-list 1 permit any



지금까지 [2025][Juniper SRX #22] site to site vpn - S2S VPN - 기본 설정 글을 읽어주셔서 감사합니다.



다음글을 Juniper SRX S2S VPN 설정 하겠습니다.

안녕하세요.



오늘은 Juniper srx ip monitor에 대해서 알아보겠습니다.

시스코 용어로는 IP SLA입니다.



아래처럼 SRX에 인터넷이 2개 연결되었다고 확인해보겠습니다.

Default Gateway는 한개만 선택되어서 라이팅이 됩니다.



Main Internet를 통해서 google 8.8.8.8를 모니터링하고 있다가, Main Internet이 죽으면 자동으로

디폴트케이트웨이를 백업 인터넷으로 변경을 실습해 보겠습니다.



토폴로지는 아래와 같습니다.

SRX

Ge-0/0/0 10.1.1.1이 메인 Internet

Ge-0/0/1 20.1.1.1이 백업 Internet 으로 간주하겠습니다.

Internet 라우터는 SRX에 올라오는 트래픽을 NAT처리해서 8.8.8.8이랑 통신 되게 설정 합니다.



기본설정을 먼저 해보겠습니다.



INTENRET ROUTER 설정 입니다.

Router(config)#no ip domain-lookup
Router(config)#hostname INT_ROUTER
INT_ROUTER(config)#line con 0
INT_ROUTER(config-line)#exec-time
INT_ROUTER(config-line)#logg sy
INT_ROUTER(config-line)#end

INT_ROUTER#conf t
INT_ROUTER(config)#int g0/0
INT_ROUTER(config-if)#ip add 192.168.10.101 255.255.255.0
INT_ROUTER(config-if)#no sh
INT_ROUTER(config-if)#end
INT_ROUTER(config)#int g0/1
INT_ROUTER(config-if)#ip add 10.1.1.254 255.255.255.0
INT_ROUTER(config-if)#no sh
INT_ROUTER(config-if)#int g0/2
\INT_ROUTER(config-if)#ip add 20.1.1.254 255.255.255.0
INT_ROUTER(config-if)#no sh
INT_ROUTER(config-if)#end

INT_ROUTER(config)#ip route 0.0.0.0 0.0.0.0 192.168.10.253
INT_ROUTER(config)#end
INT_ROUTER#

INT_ROUTER#
INT_ROUTER#show ip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         192.168.10.101  YES manual up                    up
GigabitEthernet0/1         10.1.1.254      YES manual up                    up
GigabitEthernet0/2         20.1.1.254      YES manual up                    up
GigabitEthernet0/3         unassigned      YES unset  administratively down down
INT_ROUTER#

INT_ROUTER#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/3/6 ms



PAT를 설정 합니다.

INT_ROUTER#conf t
INT_ROUTER(config)#int g0/0
INT_ROUTER(config-if)#ip nat outside

INT_ROUTER(config-if)#int g0/1
INT_ROUTER(config-if)#ip nat inside
INT_ROUTER(config-if)#int g0/2
INT_ROUTER(config-if)#ip nat inside
INT_ROUTER(config-if)#end

INT_ROUTER(config)#access-list 1 permit any
INT_ROUTER(config)#ip nat inside source list 1 interface gigabitEthernet 0/0 overload


INT_ROUTER#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/7 ms

INT_ROUTER#ping 8.8.8.8 source g0/1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 10.1.1.254
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/3/5 ms

INT_ROUTER#ping 8.8.8.8 source g0/2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 20.1.1.254
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 3/5/8 ms
INT_ROUTER#



이번에는 주니퍼 기본 설정을 하겠습니다.

기본적으로 설정값을 다 지우고 root password를 설정 합니다.

FreeBSD/amd64 (Amnesiac) (ttyu0)

login: root

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ # cli
root>

root> configure
Entering configuration mode

[edit]
root#

[edit]
root#

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit



Interface 설정

root> show configuration | display set | no-more
set version 21.3R1.9
set system root-authentication encrypted-password "$6$6IWgKM8j$c5/l5czscFh31rD/X/mx8ug3IUwUdyYtb8/KYEjYA7J6YxayiDelNUx9cmSFxzjWpf/0LLxBAADLf.WGE2.XV1"
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/2.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone untrust interfaces ge-0/0/1.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 20.1.1.1/24
set interfaces ge-0/0/2 unit 0 family inet address 30.1.1.1/24
set protocols lldp interface all
set routing-options static route 0.0.0.0/0 next-hop 10.1.1.254
root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     10.1.1.1/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     20.1.1.1/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     30.1.1.1/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root> show security zones

Security zone: trust
  Zone ID: 7
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 2
  Interfaces:
    ge-0/0/1.0
    ge-0/0/2.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: untrust
  Zone ID: 8
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 1
  Interfaces:
    ge-0/0/0.0
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

Security zone: junos-host
  Zone ID: 2
  Send reset for non-SYN session TCP packets: Off
  Policy configurable: Yes
  Interfaces bound: 0
  Interfaces:
  Advanced-connection-tracking timeout: 1800
  Unidirectional-session-refreshing: No

root>




root> ping 10.1.1.254
PING 10.1.1.254 (10.1.1.254): 56 data bytes
64 bytes from 10.1.1.254: icmp_seq=0 ttl=255 time=3.320 ms
64 bytes from 10.1.1.254: icmp_seq=1 ttl=255 time=3.150 ms
64 bytes from 10.1.1.254: icmp_seq=2 ttl=255 time=2.836 ms
64 bytes from 10.1.1.254: icmp_seq=3 ttl=255 time=2.550 ms
64 bytes from 10.1.1.254: icmp_seq=4 ttl=255 time=2.607 ms
^C
--- 10.1.1.254 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 2.550/2.893/3.320/0.300 ms

root> ping 20.1.1.254
PING 20.1.1.254 (20.1.1.254): 56 data bytes
64 bytes from 20.1.1.254: icmp_seq=0 ttl=255 time=2.894 ms
64 bytes from 20.1.1.254: icmp_seq=1 ttl=255 time=2.782 ms
64 bytes from 20.1.1.254: icmp_seq=2 ttl=255 time=2.699 ms
64 bytes from 20.1.1.254: icmp_seq=3 ttl=255 time=3.372 ms
64 bytes from 20.1.1.254: icmp_seq=4 ttl=255 time=2.571 ms
^C
--- 20.1.1.254 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 2.571/2.864/3.372/0.275 ms

root>



NAT 설정


Source IP가 30.1.1.0/24에 대해서는 Source NAT를 진행합니다.

set security nat source rule-set SOURCE-NAT from zone trust
set security nat source rule-set SOURCE-NAT to zone untrust
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match source-address 30.1.1.0/24
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE match destination-address 0.0.0.0/0
set security nat source rule-set SOURCE-NAT rule PAT-INTERFACE then source-nat interface



Firewall Rule 설정

set security policies from-zone trust to-zone untrust policy trust_to_untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust_to_untrust match application any
set security policies from-zone trust to-zone untrust policy trust_to_untrust then permit



VPC IP 설정 및 8.8.8.8 테스트

VPCS> ip 30.1.1.254/24 30.1.1.1
Checking for duplicate address...
VPCS : 30.1.1.254 255.255.255.0 gateway 30.1.1.1

VPCS> save
Saving startup configuration to startup.vpc
.  done

VPCS> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=115 time=17.295 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=115 time=4.437 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=115 time=5.881 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=115 time=5.225 ms
^C
VPCS>

VPCS> trace 8.8.8.8
trace to 8.8.8.8, 8 hops max, press Ctrl+C to stop
 1   30.1.1.1   9.255 ms  0.759 ms  0.866 ms
 2   10.1.1.254   8.273 ms  16.840 ms  4.871 ms
 3   192.168.10.253   15.513 ms  4.014 ms  4.634 ms
 4   202.14.11.193   3.964 ms  4.513 ms  3.862 ms
 5   202.14.12.33   4.422 ms  3.900 ms  6.111 ms
 6   203.117.190.81   7.847 ms  7.067 ms  9.060 ms
^C 7     *

VPCS>



위에 처럼 메인 Internet를 통해서 8.8.8.8 통신을 시도 합니다.



10.1.1.254 Main Internet

20.1.1.254 Backup Internet



SRX에서 IP MONITOR기능을 설정해서 Main Internet를 통해서 8.8.8.8 모니터링 합니다.

모니터링이 성공하면 디폴트로 설정된 Default Gateway를 사용하고 실패하면 20.1.1.254 Default Gateway를 추가하여.

우선순위를 더 높에 사용해서 20.1.1.254가 선택되게 합니다.



다시 Main Internet를 통해서 8.8.8.8 성공하면 Main Internet 10.1.1.254 Defualt Gateway가 선택 되게 합니다.



SRX 설정값 입니다.

set services rpm probe probe-test test test probe-type icmp-ping
set services rpm probe probe-test test test target address 8.8.8.8
set services rpm probe probe-test test test probe-count 5
set services rpm probe probe-test test test probe-interval 5
set services rpm probe probe-test test test test-interval 5
set services rpm probe probe-test test test thresholds successive-loss 10
set services rpm probe probe-test test test next-hop 10.1.1.254
set services ip-monitoring policy probe-policy match rpm-probe probe-test
set services ip-monitoring policy probe-policy then preferred-route route 0.0.0.0/0 next-hop 20.1.1.254



라우팅을 확인 합니다

10.1.1.254가 사용중입니다.

root> show route

inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:37:58
                    >  to 10.1.1.254 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:37:58
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:37:58
                       Local via ge-0/0/0.0
20.1.1.0/24        *[Direct/0] 00:37:58
                    >  via ge-0/0/1.0
20.1.1.1/32        *[Local/0] 00:37:58
                       Local via ge-0/0/1.0
30.1.1.0/24        *[Direct/0] 00:37:58
                    >  via ge-0/0/2.0
30.1.1.1/32        *[Local/0] 00:37:58
                       Local via ge-0/0/2.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:57:56
                       MultiRecv

root>



IP Monitering 상태 확인하는 방법

root> show services rpm probe-results
    Owner: probe-test, Test: test
    Target address: 8.8.8.8, Probe type: icmp-ping, Icmp-id: 10,
    Test size: 5 probes
    Probe results:
      Response received
      Probe sent time: Thu Feb  6 13:11:33 2025
      Probe rcvd/timeout time: Thu Feb  6 13:11:33 2025, No hardware timestamps
      Rtt: 3555 usec, Round trip jitter: 285 usec
      Round trip interarrival jitter: 1223 usec
    Results over current test:
      Probes sent: 5, Probes received: 5, Loss percentage: 0.000000
      Measurement: Round trip time
        Samples: 5, Minimum: 3065 usec, Maximum: 3555 usec, Average: 3297 usec,
        Peak to peak: 490 usec, Stddev: 158 usec, Sum: 16484 usec
      Measurement: Positive round trip jitter
        Samples: 4, Minimum: 90 usec, Maximum: 285 usec, Average: 187 usec,
        Peak to peak: 195 usec, Stddev: 70 usec, Sum: 749 usec
      Measurement: Negative round trip jitter
        Samples: 1, Minimum: 277 usec, Maximum: 277 usec, Average: 277 usec,
        Peak to peak: 0 usec, Stddev: 0 usec, Sum: 277 usec
    Results over last test:
      Probes sent: 5, Probes received: 5, Loss percentage: 0.000000
      Test completed on Thu Feb  6 13:11:33 2025
      Measurement: Round trip time
        Samples: 5, Minimum: 3065 usec, Maximum: 3555 usec, Average: 3297 usec,
        Peak to peak: 490 usec, Stddev: 158 usec, Sum: 16484 usec
      Measurement: Positive round trip jitter
        Samples: 4, Minimum: 90 usec, Maximum: 285 usec, Average: 187 usec,
        Peak to peak: 195 usec, Stddev: 70 usec, Sum: 749 usec
      Measurement: Negative round trip jitter
        Samples: 1, Minimum: 277 usec, Maximum: 277 usec, Average: 277 usec,
        Peak to peak: 0 usec, Stddev: 0 usec, Sum: 277 usec
    Results over all tests:
      Probes sent: 10, Probes received: 10, Loss percentage: 0.000000
      Measurement: Round trip time
        Samples: 10, Minimum: 3033 usec, Maximum: 13877 usec,
        Average: 5128 usec, Peak to peak: 10844 usec, Stddev: 3872 usec,
        Sum: 51275 usec
      Measurement: Positive round trip jitter
        Samples: 6, Minimum: 32 usec, Maximum: 8668 usec, Average: 1575 usec,
        Peak to peak: 8636 usec, Stddev: 3173 usec, Sum: 9449 usec
      Measurement: Negative round trip jitter
        Samples: 3, Minimum: 277 usec, Maximum: 10844 usec, Average: 6590 usec,
        Peak to peak: 10567 usec, Stddev: 4553 usec, Sum: 19771 usec

root>


아래처럼 8.8.8.8 모니터링이 성공하였다고 PASS 표시됩니다.

root> show services ip-monitoring status

Policy - probe-policy (Status: PASS)
  RPM Probes:
    Probe name             Test Name       Address          Status
    ---------------------- --------------- ---------------- ---------
    probe-test             test            8.8.8.8          PASS

  Route-Action (Adding backup routes when FAIL):
    route-instance    route             next-hop         state
    ----------------- ----------------- ---------------- -------------
    inet.0            0.0.0.0/0         20.1.1.254       NOT-APPLIED

root>



이번에는 INT_ROUTER에서 G0/1 Shutdown 해 보겠습니다.

INT_ROUTER#show ip int brie
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         192.168.10.101  YES manual up                    up
GigabitEthernet0/1         10.1.1.254      YES manual up                    up
GigabitEthernet0/2         20.1.1.254      YES manual up                    up
GigabitEthernet0/3         unassigned      YES unset  administratively down down
NVI0                       192.168.10.101  YES unset  up                    up
INT_ROUTER#
INT_ROUTER#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
INT_ROUTER(config)#int g0/1
INT_ROUTER(config-if)#sh
INT_ROUTER(config-if)#



그리고 Juniper SRX에서 상태를 확인해 보겠습니다.
메인 Internet를 통해서 8.8.8.8 실패해서 FAIL이라고 표시 됩니다.

root> show services ip-monitoring status

Policy - probe-policy (Status: FAIL)
  RPM Probes:
    Probe name             Test Name       Address          Status
    ---------------------- --------------- ---------------- ---------
    probe-test             test            8.8.8.8          FAIL

  Route-Action (Adding backup routes when FAIL):
    route-instance    route             next-hop         state
    ----------------- ----------------- ---------------- -------------
    inet.0            0.0.0.0/0         20.1.1.254       APPLIED

root>



라우팅 테이블을 확인해보겠습니다.

0.0.0.0/0 * 20.1.1.254선택 되었습니다.

root> show route

inet.0: 7 destinations, 8 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/1] 00:00:40, metric2 0
                    >  to 20.1.1.254 via ge-0/0/1.0
                    [Static/5] 00:41:30
                    >  to 10.1.1.254 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:41:30
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:41:30
                       Local via ge-0/0/0.0
20.1.1.0/24        *[Direct/0] 00:41:30
                    >  via ge-0/0/1.0
20.1.1.1/32        *[Local/0] 00:41:30
                       Local via ge-0/0/1.0
30.1.1.0/24        *[Direct/0] 00:41:30
                    >  via ge-0/0/2.0
30.1.1.1/32        *[Local/0] 00:41:30
                       Local via ge-0/0/2.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 01:01:28
                       MultiRecv

root>



PC에서 8.8.8.8 Ping확인

VPCS> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=115 time=14.530 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=115 time=6.496 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=115 time=4.036 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=115 time=4.639 ms
^C
VPCS> trace 8.8.8.8
trace to 8.8.8.8, 8 hops max, press Ctrl+C to stop
 1   30.1.1.1   6.549 ms  0.323 ms  0.288 ms
 2   20.1.1.254   4.672 ms  2.443 ms  2.587 ms
 3   192.168.10.253   5.439 ms  3.019 ms  3.723 ms
 4   202.14.11.193   2.668 ms  3.153 ms  2.520 ms
 5   202.14.12.33   3.274 ms  2.983 ms  3.199 ms
 6   203.117.190.81   3.344 ms  2.981 ms  3.447 ms
 7     *  *  *
 8   203.116.3.50   4.120 ms  3.835 ms  3.361 ms

VPCS>



Backup Internet 20.1.1.254를 통해서 8.8.8.8 통신 되었습니다.



이번에는 다시 INT_ROUTER G0/1를 Shutdown해서 Main Internet를 살리겠습니다

INT_ROUTER#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
INT_ROUTER(config)#int g0/1
INT_ROUTER(config-if)#no sh
INT_ROUTER(config-if)#end
INT_ROUTER#



Juniper SRX에 확인해보겠습니다.

메인 Intenret를 통해서 8.8.8.8 성공해서 PASS라고 표시 됩니다.

root> show services ip-monitoring status

Policy - probe-policy (Status: PASS)
  RPM Probes:
    Probe name             Test Name       Address          Status
    ---------------------- --------------- ---------------- ---------
    probe-test             test            8.8.8.8          PASS

  Route-Action (Adding backup routes when FAIL):
    route-instance    route             next-hop         state
    ----------------- ----------------- ---------------- -------------
    inet.0            0.0.0.0/0         20.1.1.254       NOT-APPLIED



라우팅 확인

메인 Intrenet이 0.0.0.0/0 선택 되었습니다.

root> show route

inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:44:58
                    >  to 10.1.1.254 via ge-0/0/0.0
10.1.1.0/24        *[Direct/0] 00:44:58
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:44:58
                       Local via ge-0/0/0.0
20.1.1.0/24        *[Direct/0] 00:44:58
                    >  via ge-0/0/1.0
20.1.1.1/32        *[Local/0] 00:44:58
                       Local via ge-0/0/1.0
30.1.1.0/24        *[Direct/0] 00:44:58
                    >  via ge-0/0/2.0
30.1.1.1/32        *[Local/0] 00:44:58
                       Local via ge-0/0/2.0

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 01:04:56
                       MultiRecv

root>



PC에서 Ping확인

VPCS> ping 8.8.8.8

84 bytes from 8.8.8.8 icmp_seq=1 ttl=115 time=5.238 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=115 time=4.189 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=115 time=4.335 ms
84 bytes from 8.8.8.8 icmp_seq=4 ttl=115 time=4.901 ms
^C
VPCS> trace 8.8.8.8
trace to 8.8.8.8, 8 hops max, press Ctrl+C to stop
 1   30.1.1.1   0.720 ms  0.342 ms  0.297 ms
 2   10.1.1.254   4.886 ms  2.755 ms  1.927 ms
 3   192.168.10.253   4.773 ms  2.598 ms  2.446 ms
 4   202.14.11.193   2.810 ms  2.187 ms  2.950 ms
 5   202.14.12.33   3.585 ms  3.912 ms  2.398 ms
 6   203.117.190.81   3.007 ms  3.628 ms  3.860 ms
 7     *  *  *
 8   203.118.60.86   3.371 ms  3.265 ms  3.244 ms

VPCS>



지금까지 [2025][Juniper SRX #21] ip monitor - ip sla 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 SRX320 License를 J-Web를 통해서 설치해보겠습니다.



1. SRX IPS라이센스를 구매하면 Distributor로부터 Activiation Code PDF파일을 전송 받게 됩니다.

중요부분은 다 삭제 하였습니다.

2. J-WEB를 접속 합니다.

시리얼번호는 삭제하였습니다. 시리얼번호를 확인 합니다.



3. JAL license Portal에 접속하고 위에 라이센스 activiation PDF파일에서 Activation Code를 복사해서 붙어 넣으면 자동으로 라이센스를 찾아서 Activiation으로 넘어 갑니다.



또는 아래 Order Number를 검색한후에 옆에 Activate 버튼을 눌러서 활성화도 가능 합니다.



라이센스를 구매할때 이미 고객사정보 Juniper SI 파트너 계정에 이미 라이센스가 들어가져 있습니다.



4. 아래처럼 장비 시리얼정보와, Noted, Email주소를 입력하고 Activate버튼을 클릭 합니다.



5. Download 버튼을 클릭 합니다.

6. 라이센스 키가 다운로드 되고 파일을 클릭 하면 아래처럼 정보를 확인 가능 합니다

Issue Date          : 05-Feb-2025
Expiry Date         : 25-Jan-2030

HW Serial Number    : 장비 시리얼 번호

SSRN                :  xxxxxxxxxx

Feature             : S-SRX320-A1-5
Quantity            : 1
Software Version    : All Versions
License Key         :

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx



Device Administration



2. License Management를 선택합니다.

현재 Default로 아래처럼 2개가 설치 되어져 있습니다.

remote-access-ipsec-vpn-client  0 2 0 Permanent
remote-access-juniper-std  0 2 0 Permanent



3. Add버튼을 클릭 하고 Txt파일에서 키값을 복사해서 붙여넣기 합니다.



아래처럼 라이센스가 적용 되었습니다.



지금까지 [2024][Juniper SRX #20] License Install - J-Web 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 Juniper SRX J-Web에 대해서 알아보겠습니다.



Juniper SRX은 기본적으로 J-Web이 Default로 Enable 되어져 있습니다.



Console 케이블을 연결하고 Ge0/1 ~ Ge0/5 까지 아무 포트에 케이블을 PC와 연결 합니다.



Default Login -

id: root

password: 없음



장비에 아래처럼 이미 기본적으로 설정값이 들어가져 있습니다.

root> show configuration | display set | no-more
set version 21.4R3-S3.4
set system services ssh
set system services netconf ssh
set system services dhcp-local-server group jdhcp-group interface irb.0
set system services web-management https system-generated-certificate
set system name-server 8.8.8.8
set system name-server 8.8.4.4
set system syslog archive size 100k
set system syslog archive files 3
set system syslog user * any emergency
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any notice
set system syslog file messages authorization info
set system max-configurations-on-flash 5
set system max-configuration-rollbacks 5
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set system phone-home server https://redirect.juniper.net
set system phone-home rfc-compliant
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
set security nat source rule-set trust-to-untrust from zone trust
set security nat source rule-set trust-to-untrust to zone untrust
set security nat source rule-set trust-to-untrust rule source-nat-rule match source-address 0.0.0.0/0
set security nat source rule-set trust-to-untrust rule source-nat-rule then source-nat interface
set security policies from-zone trust to-zone trust policy trust-to-trust match source-address any
set security policies from-zone trust to-zone trust policy trust-to-trust match destination-address any
set security policies from-zone trust to-zone trust policy trust-to-trust match application any
set security policies from-zone trust to-zone trust policy trust-to-trust then permit
set security policies from-zone trust to-zone untrust policy trust-to-untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust-to-untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust-to-untrust match application any
set security policies from-zone trust to-zone untrust policy trust-to-untrust then permit
set security policies pre-id-default-policy then log session-close
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces irb.0
set security zones security-zone untrust screen untrust-screen
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services dhcp
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services tftp
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services https
set security zones security-zone untrust interfaces ge-0/0/7.0 host-inbound-traffic system-services dhcp
set security zones security-zone untrust interfaces ge-0/0/7.0 host-inbound-traffic system-services tftp
set security zones security-zone untrust interfaces dl0.0 host-inbound-traffic system-services tftp
set interfaces ge-0/0/0 unit 0 family inet dhcp vendor-id Juniper-srx320
set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/3 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/4 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/5 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/6 unit 0 family ethernet-switching vlan members vlan-trust
set interfaces ge-0/0/7 unit 0 family inet dhcp vendor-id Juniper-srx320
set interfaces cl-1/0/0 dialer-options pool 1 priority 100
set interfaces dl0 unit 0 family inet negotiate-address
set interfaces dl0 unit 0 family inet6 negotiate-address
set interfaces dl0 unit 0 dialer-options pool 1
set interfaces dl0 unit 0 dialer-options dial-string 1234
set interfaces dl0 unit 0 dialer-options always-on
set interfaces irb unit 0 family inet address 192.168.1.1/24
set access address-assignment pool junosDHCPPool family inet network 192.168.1.0/24
set access address-assignment pool junosDHCPPool family inet range junosRange low 192.168.1.2
set access address-assignment pool junosDHCPPool family inet range junosRange high 192.168.1.254
set access address-assignment pool junosDHCPPool family inet dhcp-attributes router 192.168.1.1
set access address-assignment pool junosDHCPPool family inet dhcp-attributes propagate-settings ge-0/0/0.0
set vlans vlan-trust vlan-id 3
set vlans vlan-trust l3-interface irb.0
set protocols l2-learning global-mode switching
set protocols rstp interface all

root>



Irb interface를 확인 합니다.
192.168.1.1 irb0이 UP 되었습니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    down
ge-0/0/0.0              up    down inet
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet     10.0.0.1            --> 10.0.0.16
                                            10.0.0.6            --> 0/0
                                            128.0.0.1           --> 128.0.1.16
                                            128.0.0.6           --> 0/0
ge-0/0/1                up    down
ge-0/0/1.0              up    down eth-switch
ge-0/0/2                up    down
ge-0/0/2.0              up    down eth-switch
ge-0/0/3                up    up
ge-0/0/3.0              up    up   eth-switch
ge-0/0/4                up    down
ge-0/0/4.0              up    down eth-switch
ge-0/0/5                up    down
ge-0/0/5.0              up    down eth-switch
ge-0/0/6                up    down
ge-0/0/6.0              up    down eth-switch
ge-0/0/7                up    down
ge-0/0/7.0              up    down inet
dl0                     up    up
dl0.0                   up    up   inet
                                   inet6    fe80::7629:720f:fc1f:2b69/64
esi                     up    up
fti0                    up    up
fxp2                    up    up
fxp2.0                  up    up   tnp      0x1
gre                     up    up
ipip                    up    up
irb                     up    up
irb.0                   up    up   inet     192.168.1.1/24
jsrv                    up    up
jsrv.1                  up    up   inet     128.0.0.127/2
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
rbeb                    up    up
st0                     up    up
tap                     up    up
vtep                    up    up



Jweb 접속하기 전에 root 패스워드를 설정 합니다.

root# set system root-authentication plain-text-password



PC에서 Ping를 시도 합니다.

Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=3ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=3ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=2ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64



2. google chrome또는 Firebox에서 https://192.168.1.1 접속 합니다



3. Root/Passowrd를 입력 합니다.



4. 아래처럼 접속이 완료 되었습니다.



Juniper SRX는 예전에 J-Web버전에 버그들이랑 문제점들이 많아서 CLI로 통해서 Juniper SRX를 사용해 왔습니다.



지금까지 [2024][Juniper SRX #19] J-Web 글을 읽어주셔서 감사합니다.

안녕하세요.



Juniper SRX320를 설치 할 일이 있는데, Firmware recommendation version에 대해서 알아보겠습니다.



시스코는 IOS download 공식 홈페이지에 접속 하면 아래처럼 *를 확인 가능 합니다.

현재 시점에서 시스코가 권장하는 IOS버전입니다.



Juniper는 Firwmare Download 페이지에서 시스코 처럼 표시가 되지 않습니다.

Juniper는 KB - Knowledge Base에서 확인 가능 합니다.





검색을 srx320으로 합니다.

아래처럼 권장 Firmware를 확인 가능 합니다.





Juniper 공식 홈페이지는 아래와 같습니다.



https://supportportal.juniper.net/s/article/Junos-Software-Versions-Suggested-Releases-to-Consider-and-Evaluate?language=en_US



Junos Software Versions - Suggested Releases to Consider and Evaluate

×Sorry to interrupt This page has an error. You might just need to refresh it. [LWC component's @wire target property or method threw an error during value provisioning. Original error: [Cannot read properties of undefined (reading 'ContentDocumentId')]]

supportportal.juniper.net



지금까지 [2024][Juniper SRX #18] Firmware recommendation 글을 읽어주셔서 감사합니다.

안녕하세요..



이번에는 Juniper SRX Upgrade Path에 대해서 알아보도록 하겠습니다.



Juniper SRX Firmware Upgrade Path 입니다.



Upgrade table

To make it easy to lookup for each Junos release for SRX from which earlier releases it is supported to directly upgrade to it, please see the below table.

Before performing the upgrade, please make sure to check the Notes section below for possible caveats and limitations which may apply.


Target Junos releaseDirect upgrade supported from

24.2 23.4, 23.2, 22.4
23.4 23.2, 22.4, 22.3
23.2 22.4, 22.3, 22.2
22.4 22.3, 22.2, 22.1, 21.4
22.3 22.2, 22.1, 21.4
22.2 22.1, 21.4, 21.3, 21.2
22.1 21.4, 21.3, 21.2
21.4 21.3, 21.2, 21.1, 20.4
21.3 21.2, 21.1, 20.4
21.2 21.1, 20.4, 20.3, 20.2
21.1 20.4, 20.3, 20.2
20.4 20.3, 20.2, 20.1, 19.4
20.3 20.2, 20.1, 19.4
20.2 20.1, 19.4, 19.3, 19.2
20.1 19.4, 19.3, 19.2
19.4 19.3, 19.2, 19.1, 18.4, 15.1X49
19.3 19.2, 19.1, 18.4
19.2 19.1, 18.4, 18.3, 18.2
19.1 18.4, 18.3, 18.2
18.4 18.3, 18.2, 18.1, 17.4, 15.1X49
18.3 18.2, 18.1, 17.4
18.2 18.1, 17.4, 17.3
18.1 17.4, 17.3
17.4 17.3, 15.1X49
17.3 15.1X49
15.1X49 12.3X48



https://supportportal.juniper.net/s/article/Junos-upgrade-paths-for-SRX-platforms?language=en_US



[SRX] Junos upgrade paths for SRX platforms

×Sorry to interrupt This page has an error. You might just need to refresh it. [LWC component's @wire target property or method threw an error during value provisioning. Original error: [Cannot read properties of undefined (reading 'ContentDocumentId')]]

supportportal.juniper.net



Examples of upgrade paths


To upgrade your SRX device from Junos 21.4R3 to 24.2R1
Path: 21.4R3 --> 22.4R3 --> 24.2R1

To upgrade your SRX device from Junos 21.4R3 to 23.4R2-S3
Path: 21.4R3 --> 22.4R3 --> 23.4R2-S3

To upgrade your SRX device from Junos 19.4R3 to 22.2R1
Path: 19.4R3 --> 20.4R3 --> 21.4R2 --> 22.2R1 (*2,3)

To upgrade your SRX device from Junos 18.2R3 to 20.4R1
Path: 18.2R3 --> 18.4R3 --> 19.4R3 --> 20.4R1

To upgrade your SRX device from Junos 17.4R3 to 19.4R3-S2
Path: 17.4R3 --> 18.2R3 --> 18.4R3 --> 19.4R3-S2

To upgrade your SRX device from Junos 15.1X49-D170 to 20.4R1
Path: 15.1X49-D170 --> 19.4R3 --> 20.4R1



지금까지 [2024][Juniper SRX #17] Firmware Upgrade path 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 [2024][Juniper SRX #16] password recovery입니다.



기존에 사용하던 방화벽 또는 새로운 구축 또는 유지보수 고객사 방화벽 장비 로그인 정보를 모를 때 password recovery를 진행해야 합니다.



EVE-NG에서 Juniper vSRX를 실행하고 패스워드 리커버리를 테스트할 수 있습니다.



자세한 내용은 주니퍼 홈페이지를 참고 부탁드립니다.

https://www.juniper.net/documentation/us/en/software/junos/user-access/topics/topic-map/recovering-root-password.html



Recover a Root Password | Junos OS | Juniper Networks

If you forget the root password for the router, you can use the password recovery procedure to reset the root password. Before you begin, note the following: You need console access to recover the root password. To recover the root password:

www.juniper.net



토폴로지입니다.



기본 설정 다 지우고 root 패스워드는 juniperjunuper로 설정합니다.

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system or
                 ^
syntax error.
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# set system host-name srx
root# commit
commit complete

[edit]
root#



그리고 패스워드를 까먹었다고 가정하겠습니다.

root@firewall:~ # cli
root@srx> exit

root@firewall:~ # exit
logout

FreeBSD/amd64 (srx) (ttyu0)

login: root
Password:
Login incorrect
login: ^C



1. 장비를 콘솔 케이블에 연결합니다.

2. putty 또는 Crt 프로그램을 실행하고 장비에 접속합니다.

3. 장비를 재부팅합니다. 파워케이블을 제거 후 다시 연결합니다.

4. Ctrl-C를 입력합니다.

제때 입력하지 못하면 장비가 부팅됩니다.



다시 전원코드를 제거 후 다시 연결합니다.



저희는 eve-ng에서 테스트하기 때문에, 장비를 power off 하고 power on 합니다.

Autoboot in 1 seconds... (press Ctrl-C to interrupt)

Choice:
Main Menu

1.  Boot [J]unos volume
2.  Boot Junos volume in [S]afe mode

3.  [R]eboot

4.  [B]oot menu
5.  [M]ore options






Choice:



그리고 M를 입력합니다.

Options Menu

1.  Recover [J]unos volume
2.  Recovery mode - [C]LI

3.  Check [F]ile system

4.  Enable [V]erbose boot

5.  [B]oot prompt

6.  [M]ain menu



Choice:



그리고 C를 입력합니다.

부팅이 완료될 때까지 기다립니다.

Choice:
Booting Junos in CLI recovery mode ...
Verified /boot/manifest signed by PackageProductionECP256_2021
Verified /boot/loader.rc
Verified /boot/support.4th
Verified /boot/load-dtb.4th
Verified /boot/platform.4th
Verified /boot/platform-load-dtb.4th
-
 / yymmss==[[00xx8++00xx88++00]]  33dd33bb-- boooott//oosddaattaa==ddaattaa==00xx44ffff118eexxtt==00xx5577ee337744  -- siiggnneedd  bby888  || ioonnEECCPP225566__22002211 netstack/../manifest signed by PackageProductionECP256_2021
 Veerriiffiieedd  //ppaacckkaaggeess//sseettss//aaccttiivvee//bboooott//ooss--kkeerrnneell//kkeerrnneell
 Veerriiffiieedd  //ppaacckkaaggeess//sseettss//aaccttiivvee//bboooott//ooss--vvmmgguueesstt//iinniitt..44tthh
-  ified /packages/sets/active/boot/junos-modules/init.4th
\- ified /packages/sets/active/boot/junos-net-platform/../manifest signed by PackageProductionECP256_2021
Verified /packages/sets/active/boot/junos-vmguest-platform/../manifest signed by PackageProductionECP256_2021
VVeerriiffiieedd  //ppaacckkaaggeess//sseettss//aaccttiivvee//bboooott//ooss--kkeerrnneell//....//mmaanniiffeesstt  ssiiggnneedd  bbyy  PPaacckkaaggeePPrrooddu



부팅이 완료되면, 로그인 없이 바로 root> 모드입니다.

패스워드를 수정합니다. 그리고 재부팅합니다.

이유는 현재 모드는 password recovery 모드입니다.



NOTE: the 'configure' command to make any required changes. For example,
NOTE: to reset the root password, type:
NOTE:    configure
NOTE:    set system root-authentication plain-text-password
NOTE:    (enter the new password when asked)
NOTE:    commit
NOTE:    exit
NOTE:    exit
NOTE: When you exit the CLI, you will be in a shell.
Starting CLI ...

root> configure
root# set system root-authentication plain-text-password
New password:
error: require change of case, digits or punctuation

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit
commit complete

[edit]
root@srx# exit
Exiting configuration mode

root@srx> request system reboot
Reboot the system ? [yes,no] (no) yes

Jun 23 11:12:02 shutdown 16997 - - reboot requested by root at Sun Jun 23 11:12:02 2024
Shutdown NOW!
[pid 16997]
Jun 23 11:12:02 shutdown 16997 - - reboot by root:
Waiting (max 60 seconds) for system process `vnlru' to stop... done
Waiting (max 60 seconds) for system process `syncer' to stop...
Syncing disks, vnodes remaining... 0



부팅이 완료될 때까지 기다립니다.



password recovery mode에서 변경했던 패스워드로 로그인을 시도합니다.

그리고 interface ge-0/0/0 ip주소를 확인합니다.



password-recovery는 단순히 비밀번호만 수정합니다. 다른 설정값은 그대로 남아 있습니다.


login: root
Password:
Last login: Sun Jun 23 10:42:33 on ttyu0

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@srx:~ # ci
ci: Command not found.
root@srx:~ # cli
root@srx> show interfaces terse | match ge-0/0
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.1.1/24
ge-0/0/1                up    up
ge-0/0/2                up    up



지금까지 [2024][Juniper SRX #16] password recovery 글을 읽어 주셔서 감사합니다.

안녕하세요.



오늘은 [2024][Juniper SRX #15] commit and rollback 관련 명령어 대해서 알아보겠습니다.



Juniper 장비는 Cisco랑 다르게 commit 명령어를 실행하지 않으면 설정값 명령어들이 적용이 되지 않습니다.



Ex) Cisco Side

en

conf t

int g0/0

ip add 10.1.1.1 255.255.255.0

no sh



명령어 입력 할 때마다 곧바로 적용됩니다. 하지만 저장되지는 않습니다.

저장하기 위해서는 write memory 또는 copy running-config startup-config 저장해야 합니다.



Ex) Juniper

set interface ge-0/0/0 unit 0 family inet address 10.1.1.1/24



입력하면 설정값이 적용되지 않고 저장도 되지 않습니다.

commit 명령어를 입력해야지 적용됩니다 그리고 commit 동시에 저장도 됩니다.



**********************************

Change Configuration --> Condidate Configuration ----> active configuration



Ex) 만약에 설정값을 추가 삭제 변경 했으며 condidate configuration

Ex) 만약에 Commit를 눌렀으면 active configuration



commit check: 설정값에 이상이 있는지 확인

commit: 설정값 적용 및 저장

commit at: 특정 시간에 commit수행

commit confirmed: 설정값을 commit수행하지만 10분 안에 다시 commit를 수행하지 않으면 이전 설정값으로 돌아갑니다.

commit confirmed 1: 디폴트 값이 10분인데 이 값을 1분으로 변경



자세한 내용은 Juniper 공식 사이트 확인 부탁드립니다.

https://www.juniper.net/documentation/us/en/software/junos/cli/topics/topic-map/junos-configuration-commit.html



Commit the Configuration | Junos OS | Juniper Networks

The device configuration is saved using a commit model—a candidate configuration is modified as desired and then committed to the system. When a configuration is committed, the device checks the configuration for syntax errors, and if no errors are found

www.juniper.net



테스트해 보겠습니다.



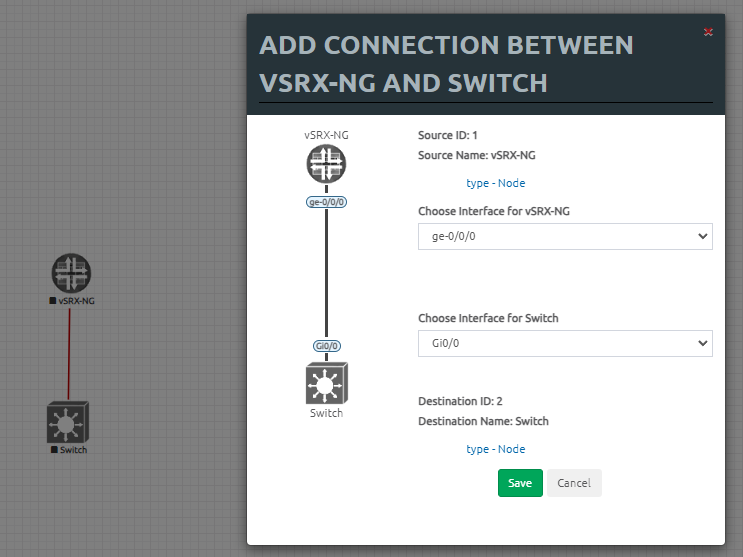

토폴로지

ge-0/0/1에 192.168.1.1/24 설정해 보겠습니다.



기본 설정 다 지우기

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system or
                 ^
syntax error.
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit
commit complete

[edit]
root#



ge-0/0/0 192.168.1.1/24 설정하기

root# set interfaces ge-0/0/0 unit 0 family inet address 192.168.1.1/24

root# run show interfaces terse | match ge-0/0
ge-0/0/0                up    up
ge-0/0/1                up    up
ge-0/0/2                up    up



위에 보시면 commit를 누르지 않으면 설정값이 적용되지 않습니다.



현재 어떤 명령어가 commit를 대기 중인지 확인하는 방법

root# show | compare
[edit]
+  interfaces {
+      ge-0/0/0 {
+          unit 0 {
+              family inet {
+                  address 192.168.1.1/24;
+              }
+          }
+      }
+  }

[edit]
root#



만약에 이 상태에서 exit로 밖으로 나가면 위에 설정값은 사라집니다.

root# exit
The configuration has been changed but not committed
Exit with uncommitted changes? [yes,no] (yes)



no를 선택합니다

commit check은 commit 하기 전에 추가적으로 설정값이 맞는지 확인합니다. 만약에 commit check 없이 바로 commit 했을 때 설정값에 문제가 있다면 error메시지가 출력되면서 commit이 실패합니다.

root# commit check
configuration check succeeds

[edit]
root#



commit 실행

root# commit
commit complete

[edit]
root# exit
Exiting configuration mode

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.1.1/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



재부팅합니다. juniper는 commit 하면 명령어 적용과 저장이 됩니다.

재부팅해서 설정값이 유지되는지 확인해 보겠습니다.

request system reboot



부팅이 완료될 때까지 기다립니다.

root> request system reboot
Reboot the system ? [yes,no] (no) yes


*** FINAL System shutdown message from root@ ***

System going down IMMEDIATELY


Stopping cron.
.



부팅이 완료되면 Interface ge-0/0/0 ip를 확인해 보면 그대로 설정 값이 남아 있습니다.

login: root
Password:
Last login: Sun Jun 23 09:53:36 on ttyu0

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ #
root@:~ #
root@:~ # cli
root>

root> show interfaces terse | match ge-0/0
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.1.1/24
ge-0/0/1                up    up
ge-0/0/2                up    up



commit and-quit  - commit를 수행하고 configuration 모드에서 나갑니다.

root# set system host-name srx

[edit]
root# commit and-quit
commit complete
Exiting configuration mode

root@srx>



commit confirmed - hostname firewall 변경하고 commit 수행합니다. 그리고 10분 안에 commit이 다시 한번 없으면 이전 상태로 돌아갑니다.

root@srx# set system host-name firewall

[edit]
root@srx# commit ?
Possible completions:
  <[Enter]>            Execute this command
  activate             Activate a previously prepared commit
  and-quit             Quit configuration mode if commit succeeds
  at                   Time at which to activate configuration changes
  check                Check correctness of syntax; do not apply changes
  comment              Message to write to commit log
  confirmed            Automatically rollback if not confirmed
  peers-synchronize    Synchronize commit on remote peers
  prepare              Prepare for an upcoming commit activation
  |                    Pipe through a command
[edit]
root@srx# commit confirmed
commit confirmed will be automatically rolled back in 10 minutes unless confirmed
commit complete

# commit confirmed will be rolled back in 10 minutes
[edit]
root@firewall#



테스트를 위해서 10분을 기다립니다. 10분 안에 commit이 없으면 host-name은 이전 설정값은 srx로 변경됩니다.



10분안에 commit을 하지 않았기 때문에 설정값이 이전으로 rollback 되었음

Broadcast Message from root@srx
        (no tty) at 10:25 UTC...

Commit was not confirmed; automatic rollback complete.


[edit]
root@srx#



이번에는 테스트를 위해서 commit confirmed 1으로 하고 1분 안에 commit를 수행합니다.

1분이 지나도 설정값이 rollback 되지 않습니다.

root@srx# set system host-name firewall

[edit]
root@srx# commit confirmed 1
commit confirmed will be automatically rolled back in 1 minutes unless confirmed
commit complete

# commit confirmed will be rolled back in 1 minute
[edit]
root@firewall# commit
commit complete

[edit]
root@firewall#



commit at를 테스트해 보겠습니다



12:00:00에 commit를 수행합니다.

[edit]
root@firewall# set system host-name srxsrx

root@firewall# commit at 12:00:00
configuration check succeeds
commit at will be executed at 2024-06-23 12:00:00 UTC
The configuration has been changed but not committed
Exiting configuration mode

root@firewall>



이번에는 Rollback에 대해서 알아보겠습니다.

설정값 원복(rollback)

설정값을 기존 설정값으로 원복수행(rollback 후 반드시 commit를 수행해야 완료됨)



설정값을 commit 할 때마다 rollback이 생성됩니다.



rollback 0 - 마지막 commit이후 변경한 설정값을 초기화

rollback 1 - 마지막 commit이전 설정값을 원복

rollback 2 - 2번째 전 commit이전 설정값으로 원복



commit 할 때마다 rollback으로 생성되는데 그 시점을 알고 싶을 때 확인 명령어



Possible completions:
  <revision>           Rollback to given configuration revision
  re0-1719138399-8     2024-06-23 10:26:40 UTC by root via cli
  re0-1719138393-7     2024-06-23 10:26:36 UTC by root via cli commit confirmed, rollback in 1mins
  re0-1719138344-6     2024-06-23 10:25:47 UTC by root via other
  re0-1719137740-5     2024-06-23 10:15:43 UTC by root via cli commit confirmed, rollback in 10mins
  re0-1719137710-4     2024-06-23 10:15:13 UTC by root via cli
  re0-1719137288-3     2024-06-23 10:08:11 UTC by root via cli
  re0-1719136430-2     2024-06-23 09:54:02 UTC by root via cli
  re0-1719135583-1     2024-06-23 09:41:04 UTC by root via other
[edit]
root@firewall# rollback revision



rollback에 어떤 명령어가 포함되었는지 확인하는 방법



commit at 명령어가 포함되었습니다.

root@firewall# show | compare rollback 0
[edit system]
-  host-name firewall;
+  host-name srxsrx;

[edit]
root@firewall#



테스트를 해보겠습니다

interface ge-0/0/0 ip 삭제합니다.

root@firewall# delete interfaces ge-0/0/0

[edit]
root@firewall# commit
commit complete

[edit]
root@firewall# exit
Exiting configuration mode

root@firewall>

root@firewall> show interfaces terse | match ge-0/0
ge-0/0/0                up    up
ge-0/0/1                up    up
ge-0/0/2                up    up



현재 설정값이랑 commit전에 설정값 비교

root@firewall# show | compare rollback 1
[edit]
-  interfaces {
-      ge-0/0/0 {
-          unit 0 {
-              family inet {
-                  address 192.168.1.1/24;
-              }
-          }
-      }
-  }



Rollback후 interface ge-0/0/0 ip주소 확인

root@firewall# rollback 1
load complete

[edit]
root@firewall# commit
commit complete

[edit]
root@firewall# run show interfaces terse | match ge-0/0
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.1.1/24
ge-0/0/1                up    up
ge-0/0/2                up    up

[edit]
root@firewall#



rollback 0에 의미



추가설정 없이 show | compare rollback 0 아무것도 없음

현재 설정이랑 rollback 0 설정값이 똑같음

root@firewall# show | compare rollback 0

[edit]



호스트 이름 변경 하지만 commit 하지 않음



host-name srx변경했지만 commit 하지 않았음

현재 condidate-configuration은 hostname srx로 보이고

현재 active-configuration(rollback 0) hostname firewall이기 때문에



다른 부분을 아래에 표시해 줌.

설정을 잘못해서 commit 하기 싫을 때 rollback 0를 누릅니다.

또는 delete system host-name 사용해도 되지만, 명령어가 20줄이라면 rollback 0로 삭제하는 것이 편리합니다.

root@firewall# set system host-name srx

root@firewall# show | compare rollback 0
[edit system]
-  host-name firewall;
+  host-name srx;

[edit]
root@firewall#



rollback 숫자 없음 의미는 rollback 0를 의미

rollback 0은 commit이 필요 없음,



이제 condidate-configuration이랑 active-configuration이랑 똑같아서 아래에 show | compare rollback 0를 입력하면

아무것도 없음

root@firewall# rollback
load complete

[edit]
root@firewall# show | compare rollback 0

[edit]
root@firewall#



지금까지 [2024][Juniper SRX #15] commit and rollback 글을 읽어주셔서 감사합니다.



안녕하세요.



이번에는 [2024][Juniper SRX #14] firewall policy 순서 변경입니다.

방화벽 정책이 여러 개가 있으면 항상 맨 위에서부터 아래로 정책 허용/차단을 확인합니다.

그래서 방화벽 정책 순서는 매우 중요합니다.

추가적으로 방화벽 정책을 변경하지 않으면 새로운 방화벽 정책은 맨 아래에 추가됩니다.

우선 테스트를 하면서 자세히 설명하도록 하겠습니다.



*** 중요 ***

1. Juniper SRX stateful 방화벽입니다

나가는 Traffic을 허용하는 방화벽 정책이 있으면 Return 되는 Traffic은 자동으로 허용됩니다.

자세한 내용은 나중에 다른 강좌에서 설명하겠습니다.

2. 방화벽이 정책이 여러 개가 있다면 맨 위에서부터 아래로 차근차근 방화벽 정책을 확인합니다.

3. 맨 아래 deny 정책이 없어도 default로 모든 traffic은 차단됩니다. - 즉 default deny all이라는 정책이 있습니다.



4. 방화벽 정책을 만들 때에는,

    4-1 match

          4-1-1 source-ip

          4-1-2 destination-ip

          4-1-3 destination application

    위에 조건문을 입력하고 어떻게 처리할 것인지 정의 ㅎ합니다

    4-2 action

          4-2-1 permit - 허용

          4-2-2 reject - 차단

          4-2-3 log - 로그 생성 - 꼭 하위옵션 session-init/close 명령어를 추가로 입력해야 합니다.

                   4-2-3-1 session-init - 세션이 시작될 때 로그 생성

                   4-2-3-2 session-close - 세션이 종료될 때 로그 생성

          4-2-4 count - 해당조건 트래픽 누적 치 사용량 정보 제공



permit, log, count를 동시에 설정 가능 합니다.



토폴로지는 아래와 같습니다.

SRX

ge-0/0/0 - dhcp - untrust

ge-0/0/1 - 192.168.1.1/24 - trust

ge-0/0/2 - 172.16.1.1/24 - dmz



SW01

gi0/0 - 192.168.1.2/24



SW02

gi0/0 - 172.16.1.2/24

그리고 아래 서비스를 enable 합니다.

http

https

telnet

ssh



방화벽 정책 1)

192.168.1.2 -> 172.16.1.2 http 허용

방화벽 정책 2)

192.168.1.2 -> 172.16.1.2 https 허용

방화벽 정책 3)

192.168.1.2 -> 172.16.1.2 ssh 허용





기존 방화벽 설정값 삭제

root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit
commit complete



2. Inteface에 IP주소를 설정합니다.

root# set interfaces ge-0/0/0 unit 0 family inet dhcp

[edit]
root# set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/24

[edit]
root# set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.1/24

[edit]
root# commit



그리고 Interface에 IP주소를 확인합니다.

root# set security zones security-zone unturst
root# set security zones security-zone untrust interfaces ge-0/0/0

root# set security zones security-zone trust
root# set security zones security-zone trust interfaces ge-0/0/1

root# set security zones security-zone dmz
root# set security zones security-zone dmz interfaces ge-0/0/2

root# commit
commit complete

root> show security zones terse
Zone                        Type
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security

root> show interfaces zone terse
Interface               Admin Link Proto    Local                 Remote                Zone
ge-0/0/0.0              up    up   inet     192.168.10.105/24
                                                                                        untrust
sp-0/0/0.0              up    up   inet
                                   inet6                                                Null
sp-0/0/0.16383          up    up   inet                                                 Null
ge-0/0/1.0              up    up   inet     192.168.1.1/24
                                                                                        trust
ge-0/0/2.0              up    up   inet     172.16.1.1/24
                                                                                        dmz
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
                                                                                        Null
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
                                                                                        Null
lo0.32768               up    up                                                        Null

root>



Interface에 IP주소를 확인합니다.

저희가 ge-0/0/0 dhcp 설정하였으나 IP주소가 없습니다.

그 이유는 Juniper SRX은 ge-0/0/0 dhcp 기능을 허용해 주어야지 IP주소를 DHCP에서 받아 올 수 있습니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     192.168.1.1/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     172.16.1.1/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up



ge-0/0/0 dhcp 기능받아오기 위해서 zone에 system-services에서 dhcp기능 그리고 ping테스트를 위해서 ping를 허용합니다.

set security zones security-zone untrust host-inbound-traffic system-services dhcp
set security zones security-zone untrust host-inbound-traffic system-services ping



그리고 show interface terse을 이용해서 ge-0/0/0 IP주소를 확인합니다.

DHCP로부터 192.168.10.105/24 IP주소를 받았습니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.10.105/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     192.168.1.1/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     172.16.1.1/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



ge-0/0/1 그리고 ge-0/0/2 ping도 허용해 줍니다.

set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone dmz host-inbound-traffic system-services ping



그리고 SW01 - Gi0/0 192.168.1.2/24 설정하고 SRX ge-0/0/1 192.168.1.1 ping를 시도합니다.

Switch>
Switch>en
Switch#conf t
Switch(config)#ho SW01
SW01(config)#int gigabitEthernet 0/0
SW01(config-if)#no switchport
SW01(config-if)#ip add 192.168.1.2 255.255.255.0
SW01(config-if)#no sh
SW01(config-if)#end
SW01#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/40/155 ms
SW01#



그리고 Default Gatway 설정

SW01(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.1
SW01(config)#end
SW01#

SW01#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is 192.168.1.1 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 192.168.1.1
      192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.1.0/24 is directly connected, GigabitEthernet0/0
L        192.168.1.2/32 is directly connected, GigabitEthernet0/0
SW01#



SW02 - Gi0/0 172.16.1.2/24 설정하고 SRX ge-0/0/2 172.16.1.1 ping를 시도합니다.

Switch>en
Switch#conf t
Switch(config)#ho SW02
SW02(config)#int gigabitEthernet 0/0
SW02(config-if)#no sw
SW02(config-if)#ip add 172.16.1.2 255.255.255.0
SW02(config-if)#no shutdown
SW02(config-if)#end
SW02#
SW02#ping 172.16.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms
SW02#



그리고 Default Gateway 설정

SW02(config)#ip route 0.0.0.0 0.0.0.0 172.16.1.1
SW02(config)#
SW02#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is 172.16.1.1 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 172.16.1.1
      172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C        172.16.1.0/24 is directly connected, GigabitEthernet0/0
L        172.16.1.2/32 is directly connected, GigabitEthernet0/0
SW02#



SW02에 http, https, telnet 그리고 ssh서비스를 Enable 합니다.

SW02#conf t
SW02(config)#ip http server
SW02(config)#ip http secure-server
% Generating 1024 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 1 seconds)
Failed to generate persistent self-signed certificate.
    Secure server will use temporary self-signed certificate.

SW02(config)#ip domain-name cisco
SW02(config)#crypto key generate rsa
The name for the keys will be: SW02.cisco
Choose the size of the key modulus in the range of 360 to 4096 for your
  General Purpose Keys. Choosing a key modulus greater than 512 may take
  a few minutes.

How many bits in the modulus [512]:
% Generating 512 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 0 seconds)

SW02(config)#username cisco privilege 15 password cisco
SW02(config)#line vty 0 15
SW02(config-line)#login local
SW02(config-line)#transport input all
SW02(config-line)#



Juniper SRX에서 방화벽 정책을 생성하겠습니다.

방화벽 정책 1)

192.168.1.2 -> 172.16.1.2 http 허용

방화벽 정책 2)

192.168.1.2 -> 172.16.1.2 https 허용

방화벽 정책 3)

192.168.1.2 -> 172.16.1.2 ssh 허용





Address-book이랑 application 정

set security address-book global address H-192.168.1.2/32 192.168.1.2/32
set security address-book global address H-172.16.1.2/32 172.16.1.2/32

set applications application T-443 protocol tcp
set applications application T-443 source-port 0-65535
set applications application T-443 destination-port 443
set applications application T-443 inactivity-timeout 20

set applications application T-80 protocol tcp
set applications application T-80 source-port 0-65535
set applications application T-80 destination-port 80
set applications application T-80 inactivity-timeout 20

set applications application T-22 protocol tcp
set applications application T-22 source-port 0-65535
set applications application T-22 destination-port 22
set applications application T-22 inactivity-timeout 20



정책 생성

set security policies from-zone trust to-zone dmz policy trust-to-dmz-http match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http match application T-80
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http then count

set security policies from-zone trust to-zone dmz policy trust-to-dmz-https match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https match application T-443
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https then count

set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh match application T-22
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh then count



Firewall 정책 순서 확인

root> show configuration security policies from-zone trust to-zone dmz  | display set | no-more

set security policies from-zone trust to-zone dmz policy trust-to-dmz-http match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http match application T-80
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-http then count
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https match application T-443
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-https then count
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh match application T-22
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-ssh then count



방화벽 정책 순서 확인 하는 방법

순서는 방화벽 정책을 생성한 순서입니다.

그리고 default 정책은 deny-all인데 순서는 안 보이지만 default policy:에 보시면 deny-all이라고 표시됩니다.

위에서부터 아래까지 방화벽 정책을 확인 후 아무것도 match 되지 않으면 default policy 즉 deny-all이 적용됩니다.

root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: dmz
  Policy: trust-to-dmz-http, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-80
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-https, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 2, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-443
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-ssh, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 3, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-22
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count



SW01에서 SW02로 테스트해 보겠습니다.

192.168.1.2 -> 172.16.1.2 http - 성공

192.168.1.2 -> 172.16.1.2 https - 성공

192.168.1.2 -> 172.16.1.2 ssh - 성공

192.168.1.2 -> 172.16.1.2 telnet - 실패 방화벽 정책이 없어서 default policy - deny-all 적

SW01#telnet 172.16.1.2 80
Trying 172.16.1.2, 80 ... Open
^C
HTTP/1.1 400 Bad Request
Date: Sun, 23 Jun 2024 09:04:47 GMT
Server: cisco-IOS
Accept-Ranges: none

400 Bad Request
[Connection to 172.16.1.2 closed by foreign host]
SW01#telnet 172.16.1.2 443
Trying 172.16.1.2, 443 ... Open
^C
^C
[Connection to 172.16.1.2 closed by foreign host]
SW01#ssh -l cisco 172.16.1.2

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
Password:

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
SW02#exit

[Connection to 172.16.1.2 closed by foreign host]
SW01#
SW01#telnet 172.16.1.2
Trying 172.16.1.2 ...
% Connection timed out; remote host not responding



hit-count 확인 - 여기에서 index번호는 방화벽 순서를 나타내지 않습니다. 주의 바랍니다.

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            dmz               trust-to-dmz-ssh 1           Permit
2       trust            dmz               trust-to-dmz-http 1          Permit
3       trust            dmz               trust-to-dmz-https 1         Permit



방화벽 순서 확인 하기 위해서 deny-any 정책을 생성하겠습니다. 가시성 있게 deny-all 정책을 만들고 count랑 log를 생성하게 설정하겠습니다.

set security policies from-zone trust to-zone dmz policy trust-to-dmz-deny-all match source-address any
set security policies from-zone trust to-zone dmz policy trust-to-dmz-deny-all match destination-address any
set security policies from-zone trust to-zone dmz policy trust-to-dmz-deny-all match application any
set security policies from-zone trust to-zone dmz policy trust-to-dmz-deny-all then deny
set security policies from-zone trust to-zone dmz policy trust-to-dmz-deny-all then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-deny-all then count



방화벽 정책 순서 확인- 특정 명령어 없이 방화벽 정책을 생성하면 맨 아래에 생성됩니다.

root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: dmz
  Policy: trust-to-dmz-http, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-80
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-https, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 2, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-443
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-ssh, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 3, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-22
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-deny-all, State: enabled, Index: 8, Scope Policy: 0, Sequence number: 4, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: deny, log, count

root>



이 상태에서 추가적으로 다른 방화벽 정책을 생성하게 되면 Deny 밑에 방화벽 정책이 생성 되게 됩니다.

우선 테스트를 위해서 192.168.1.2 -> 172.16.1.2 telnet를 허용하는 방화벽 정책을 생성하겠습니다.

set applications application T-22 protocol tcp
set applications application T-22 source-port 0-65535
set applications application T-22 destination-port 22
set applications application T-22 inactivity-timeout 20

set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet match application T-23
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet then count

commit



telnet 허용 정책이 deny-any 정책 밑에 생성되었습니다.

root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: dmz
  Policy: trust-to-dmz-http, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-80
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-https, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 2, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-443
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-ssh, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 3, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-22
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-deny-all, State: enabled, Index: 8, Scope Policy: 0, Sequence number: 4, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: deny, log, count
  Policy: trust-to-dmz-telnet, State: enabled, Index: 9, Scope Policy: 0, Sequence number: 5, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-23
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count

root>



SW01에서 SW02 telnet 시도 - 실패했습니다.

이유는 Deny-all이 telnet 허용 정책보다 위에 있기 때문입니다.

SW01#telnet 172.16.1.2
Trying 172.16.1.2 ...
% Connection timed out; remote host not responding

SW01#



deny-all 정책에 telnet 트래픽이 차단되어서 count가 증가하였습니다.

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            dmz               trust-to-dmz-https 1         Permit
2       trust            dmz               trust-to-dmz-telnet 0        Permit
3       trust            dmz               trust-to-dmz-deny-all 4      Deny
4       trust            dmz               trust-to-dmz-ssh 1           Permit
5       trust            dmz               trust-to-dmz-http 1          Permit
6       dmz              trust             trsut-to-dmz   8             Permit

Number of policy: 6



trust-to-dmz-telnet 정책을 trust-to-dmz-deny-all 보다 위에 생성하게 설정해 보겠습니다.

delete security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet
commit

set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet match application T-23
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet then count



after - 특정 정책 다음에 새로운 방화벽 정책을 생성합니다.

before - 특정 정책 이전에 새로운 방화벽 정책을 생성합니다.



trust-to-dmz-deny-all  이전에 생성해 보겠습니다.

insert security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet  ?
Possible completions:
  after                Insert after given data element
+ apply-groups         Groups from which to inherit configuration data
+ apply-groups-except  Don't inherit configuration data from these groups
  before               Insert before given data element
> match                Specify security policy match-criteria
> then                 Specify policy action to take when packet match criteria



insert security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet before policy trust-to-dmz-deny-all

commit



방화벽 정책 순서 확인

Deny-all 정책 이전에 telnet허용 정책이 생성되었습니다.



root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: dmz
  Policy: trust-to-dmz-http, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-80
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-https, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 2, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-443
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-ssh, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 3, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-22
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-telnet, State: enabled, Index: 9, Scope Policy: 0, Sequence number: 4, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-23
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-deny-all, State: enabled, Index: 8, Scope Policy: 0, Sequence number: 5, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: deny, log, count

root>



또는 insert security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet after policy trust-to-dmz-ssh

이렇게 사용해도 똑같은 의미를 가집니다.



이번에는 기존에 있는 firewall rule 순서를 변경해 보겠습니다. trust-to-dmz-telnet 정책을  trust-to-dmz-http 밑으로 이동해 보겠습니다.

기존에 있는 방화벽 정책을 삭제 후 새로 생성하고 insert명령어로 이용해서 수정해도 됩니다.



하지만 기존 방화벽 정책을 삭제하지 않고 insert명령어로 곧바로 방화벽 정책 순서를 변경할 수 있습니다.

insert security policies from-zone trust to-zone dmz policy trust-to-dmz-telnet after policy trust-to-dmz-http
commit



방화벽 정책 순서 확인 아래 빨간색 보시면 telnet 정책이 이동되었습니다.

root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: trust, To zone: dmz
  Policy: trust-to-dmz-http, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-80
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-telnet, State: enabled, Index: 9, Scope Policy: 0, Sequence number: 2, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-23
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-https, State: enabled, Index: 6, Scope Policy: 0, Sequence number: 3, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-443
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-ssh, State: enabled, Index: 7, Scope Policy: 0, Sequence number: 4, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-22
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
  Policy: trust-to-dmz-deny-all, State: enabled, Index: 8, Scope Policy: 0, Sequence number: 5, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: deny, log, count



지금까지 [2024][Juniper SRX #14] firewall policy 순서 변경 글을 읽어주셔서 감사합니다.

안녕하세요.



이번에는 [2024][Juniper SRX #13] firewall policy입니다.



토폴로지는 아래와 같습니다.



SRX

ge-0/0/0 - dhcp - untrust

ge-0/0/1 - 192.168.1.1/24 - trust

ge-0/0/2 - 172.16.1.1/24 - dmz



SW01

gi0/0 - 192.168.1.2/24

그리고 아래 서비스를 enable 합니다.

http

https

telnet

ssh


SW02

gi0/0 - 172.16.1.2/24

그리고 아래 서비스를 enable합니다.

http

https

telnet

ssh



*** 중요 ***

1. Juniper SRX stateful 방화벽입니다

나가는 Traffic을 허용하는 방화벽 정책이 있으면 Return되는 Traffic은 자동으로 허용됩니다.

자세한 내용은 나중에 다른 강좌에서 설명 하겠습니다.

2. 방화벽이 정책이 여러개가 있다면 맨 위에서부터 아래로 차근차근 방화벽 정책을 확인합니다.

3. 맨 아래 deny 정책이 없어도 default로 모든 traffic은 차단됩니다. - 즉 default deny all이라는 정책이 있습니다.



4. 방화벽 정책을 만들 때에는,

    4-1 match

          4-1-1 source-ip

          4-1-2 destination-ip

          4-1-3 destination application

    위에 조건문을 입력하고 어떻게 처리할 것인지 정의 ㅎ합니다

    4-2 action

          4-2-1 permit - 허용

          4-2-2 reject - 차단

          4-2-3 log - 로그 생성 - 꼭 하위옵션 session-init/close 명령어를 추가로 입력해야 합니다.

                   4-2-3-1 session-init - 세션이 시작될 때 로그 생성

                   4-2-3-2 session-close - 세션이 종료될 때 로그 생성

          4-2-4 count - 해당조건 트래픽 누적 치 사용량 정보 제공



permit, log, count를 동시에 설정 가능 합니다.



SRX side

1. 기존 설정값을 다 삭제합니다.

root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit
commit complete



2. Inteface에 IP주소를 설정합니다.

root# set interfaces ge-0/0/0 unit 0 family inet dhcp

[edit]
root# set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/24

[edit]
root# set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.1/24

[edit]
root# commit



그리고 Interface에 IP주소를 확인합니다.

root# set security zones security-zone unturst
root# set security zones security-zone untrust interfaces ge-0/0/0

root# set security zones security-zone trust
root# set security zones security-zone trust interfaces ge-0/0/1

root# set security zones security-zone dmz
root# set security zones security-zone dmz interfaces ge-0/0/2

root# commit
commit complete

root> show security zones terse
Zone                        Type
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security

root> show interfaces zone terse
Interface               Admin Link Proto    Local                 Remote                Zone
ge-0/0/0.0              up    up   inet     192.168.10.105/24
                                                                                        untrust
sp-0/0/0.0              up    up   inet
                                   inet6                                                Null
sp-0/0/0.16383          up    up   inet                                                 Null
ge-0/0/1.0              up    up   inet     192.168.1.1/24
                                                                                        trust
ge-0/0/2.0              up    up   inet     172.16.1.1/24
                                                                                        dmz
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
                                                                                        Null
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
                                                                                        Null
lo0.32768               up    up                                                        Null

root>



Interface에 IP주소를 확인합니다.

저희가 ge-0/0/0 dhcp 설정하였으나 IP주소가 없습니다.

그 이유는 Juniper SRX은 ge-0/0/0 dhcp 기능을 허용해 주어야지 IP주소를 DHCP에서 받아 올 수 있습니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     192.168.1.1/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     172.16.1.1/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up



ge-0/0/0 dhcp 기능받아오기 위해서 zone에 system-services에서 dhcp기능 그리고 ping테스트를 위해서 ping를 허용합니다.

set security zones security-zone untrust host-inbound-traffic system-services dhcp
set security zones security-zone untrust host-inbound-traffic system-services ping



그리고 show interface terse을 이용해서 ge-0/0/0 IP주소를 확인합니다.

DHCP로부터 192.168.10.105/24 IP주소를 받았습니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     192.168.10.105/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     192.168.1.1/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     172.16.1.1/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



ge-0/0/1 그리고 ge-0/0/2 ping도 허용해 줍니다.

set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone dmz host-inbound-traffic system-services ping



그리고 SW01 - Gi0/0 192.168.1.2/24 설정하고 SRX ge-0/0/1 192.168.1.1 ping를 시도합니다.

Switch>
Switch>en
Switch#conf t
Switch(config)#ho SW01
SW01(config)#int gigabitEthernet 0/0
SW01(config-if)#no switchport
SW01(config-if)#ip add 192.168.1.2 255.255.255.0
SW01(config-if)#no sh
SW01(config-if)#end
SW01#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/40/155 ms
SW01#



그리고 Default Gatway 설정

SW01(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.1
SW01(config)#end
SW01#

SW01#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is 192.168.1.1 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 192.168.1.1
      192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.1.0/24 is directly connected, GigabitEthernet0/0
L        192.168.1.2/32 is directly connected, GigabitEthernet0/0
SW01#



그리고 SW02 - Gi0/0 172.16.1.2/24 설정하고 SRX ge-0/0/2 172.16.1.1 ping를 시도합니다.

Switch>en
Switch#conf t
Switch(config)#ho SW02
SW02(config)#int gigabitEthernet 0/0
SW02(config-if)#no sw
SW02(config-if)#ip add 172.16.1.2 255.255.255.0
SW02(config-if)#no shutdown
SW02(config-if)#end
SW02#
SW02#ping 172.16.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms
SW02#



그리고 Default Gateway 설정

SW02(config)#ip route 0.0.0.0 0.0.0.0 172.16.1.1
SW02(config)#
SW02#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is 172.16.1.1 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 172.16.1.1
      172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C        172.16.1.0/24 is directly connected, GigabitEthernet0/0
L        172.16.1.2/32 is directly connected, GigabitEthernet0/0
SW02#



방화벽 정책을 테스트하기 위해서 SW01과 SW02를 http, https, telnet, ssh를 Enable 합니다.

SW01(config)#ip http server
SW01(config)#ip http secure-server
% Generating 1024 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 0 seconds)
Failed to generate persistent self-signed certificate.
    Secure server will use temporary self-signed certificate.

SW01(config)#ip domain-name cisco
SW01(config)#crypto key generate rsa
The name for the keys will be: SW01.cisco
Choose the size of the key modulus in the range of 360 to 4096 for your
  General Purpose Keys. Choosing a key modulus greater than 512 may take
  a few minutes.

How many bits in the modulus [512]:
% Generating 512 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 0 seconds)

SW01(config)#username cisco privilege 15 password cisco
SW01(config)#

SW01(config)#line vty 0 15
SW01(config-line)#login local
SW01(config-line)#transport input all



SW02에서도 똑같이 설정합니다.

SW02#conf t
SW02(config)#ip http server
SW02(config)#ip http secure-server
% Generating 1024 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 1 seconds)
Failed to generate persistent self-signed certificate.
    Secure server will use temporary self-signed certificate.

SW02(config)#ip domain-name cisco
SW02(config)#crypto key generate rsa
The name for the keys will be: SW02.cisco
Choose the size of the key modulus in the range of 360 to 4096 for your
  General Purpose Keys. Choosing a key modulus greater than 512 may take
  a few minutes.

How many bits in the modulus [512]:
% Generating 512 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 0 seconds)

SW02(config)#username cisco privilege 15 password cisco
SW02(config)#line vty 0 15
SW02(config-line)#login local
SW02(config-line)#transport input all
SW02(config-line)#



우선 http, https, telnet, ssh가 제대로 동작하는지 확인하기 위해서 Juniper SRX 방화벽 정책을 Any Any로 먼저 설정하고 테스트를 진행합니다.



turst zone에서 dmz zone으로 가는 Traffic은 모두 허용합니다.

set security policies from-zone trust to-zone dmz policy trsut-to-dmz match source-address any
set security policies from-zone trust to-zone dmz policy trsut-to-dmz match destination-address any
set security policies from-zone trust to-zone dmz policy trsut-to-dmz match application any
set security policies from-zone trust to-zone dmz policy trsut-to-dmz then permit
set security policies from-zone trust to-zone dmz policy trsut-to-dmz then log session-init
set security policies from-zone trust to-zone dmz policy trsut-to-dmz then count



SW01 in trust zone에서 SW02 in dmz zone에 Ping시도

SW01#ping 172.16.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/28/126 ms
SW01#



SW01 in trust zone에서 SW02 in dmz zone에 http, https, telnet, ssh 시도



telnet 172.16.1.2 80 - http 성공

telnet 172.16.1.2 443 - https 성공

telnet 172.16.1.2 23 - telnet 성공

ssh -l cisco 172.16.1.2 - ssh 성공

SW01#telnet 172.16.1.2 80
Trying 172.16.1.2, 80 ... Open
^C
HTTP/1.1 400 Bad Request
Date: Sun, 23 Jun 2024 07:37:36 GMT
Server: cisco-IOS
Accept-Ranges: none

400 Bad Request
[Connection to 172.16.1.2 closed by foreign host]
SW01#
SW01#
SW01#telnet 172.16.1.2 443
Trying 172.16.1.2, 443 ... Open



[Connection to 172.16.1.2 closed by foreign host]
SW01#
SW01#
SW01#

SW01#telnet 172.16.1.2
Trying 172.16.1.2 ... Open

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************

User Access Verification

Username: cisco
Password:
**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
SW02#

SW01#
SW01#ssh -l cisco 172.16.1.2

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
Password:

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************SW02#
SW02#
SW02#



SW02 in dmz zone에서 SW01 in trust zone으로 Ping 시도합니다.

Juniper SRX에서 dmz zone에서 trust zone에 방화벽 정책이 없기 때문에 실패합니다.

SW02#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
SW02#



테스트를 위해서 dmz zone에서 trust zone에 방화벽 정책 any를 설정합니다.

set security policies from-zone dmz to-zone trust  policy dmz-to-trust  match source-address any
set security policies from-zone dmz to-zone trust  policy dmz-to-trust match destination-address any
set security policies from-zone dmz to-zone trust  policy dmz-to-trust  match application any
set security policies from-zone dmz to-zone trust  policy dmz-to-trust  then permit
set security policies from-zone dmz to-zone trust  policy dmz-to-trust  then log session-init
set security policies from-zone dmz to-zone trust  policy dmz-to-trust  then count



SW02 in dmz zone에서 SW01 in trust zone으로 Ping 시도합니다.

SW02#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/4/15 ms
SW02#



SW02 in trust zone에서 SW01 in dmz zone에 http, https, telnet, ssh 시도



telnet 192.168.1.2 80 - http 성공

telnet 192.168.1.2 443 - https 성공

telnet 192.168.1.2 23 - telnet 성공

ssh -l cisco 192.168.1.2 - ssh 성공

SW02#telnet 192.168.1.2 80
Trying 192.168.1.2, 80 ... Open
^C
HTTP/1.1 400 Bad Request
Date: Sun, 23 Jun 2024 07:49:11 GMT
Server: cisco-IOS
Accept-Ranges: none

400 Bad Request
[Connection to 192.168.1.2 closed by foreign host]
SW02#telnet 192.168.1.2 443
Trying 192.168.1.2, 443 ... Open

^C^[[A
[Connection to 192.168.1.2 closed by foreign host]
SW02#telnet 192.168.1.2
Trying 192.168.1.2 ... Open

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************

User Access Verification

Username: cisco
Password:
**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
SW01#

SW01#ssh -l cisco 192.168.1.2

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
Password:

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
SW01#exit

[Connection to 192.168.1.2 closed by foreign host]
SW01#



Juniper SRX방화벽 정책에서 Hit-Count 확인하는 방법

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            dmz               trsut-to-dmz   9             Permit
2       dmz              trust             trsut-to-dmz   8             Permit

Number of policy: 2

root>



trust zone - SW01에서 dmz zone -SW02에 방화벽 정책

1. 192.168.1.2 -> 172.16.1.2 https 허용

2. 192.168.1.2 -> 172.16.1.2 telnet 허용

나머지는 모두 차단



address-book name

H-192.168.1.2/32 - SW01

H-172.16.1.2/32 - SW02



application은 custom으로 설정

T-23 -> T는 tcp를 의미 23은 포트 번호 의미

T-443



기존 trust zone에서 dmz zone으로 가는 Any 정책 삭제

root# delete security policies from-zone trust to-zone dmz

[edit]
root# commit
commit complete



address-book과 application를 정의합니다.

set security address-book global address H-192.168.1.2/32 192.168.1.2/32
set security address-book global address H-172.16.1.2/32 172.16.1.2/32

set applications application T-23 protocol tcp
set applications application T-23 source-port 0-65535
set applications application T-23 destination-port 23
set applications application T-23 inactivity-timeout 20

set applications application T-443 protocol tcp
set applications application T-443 source-port 0-65535
set applications application T-443 destination-port 443
set applications application T-443 inactivity-timeout 20



방화벽 정책을 생성합니다.

set security policies from-zone dmz to-zone trust policy trsut-to-dmz match source-address any
set security policies from-zone dmz to-zone trust policy trsut-to-dmz match destination-address any
set security policies from-zone dmz to-zone trust policy trsut-to-dmz match application any
set security policies from-zone dmz to-zone trust policy trsut-to-dmz then permit
set security policies from-zone dmz to-zone trust policy trsut-to-dmz then log session-init
set security policies from-zone dmz to-zone trust policy trsut-to-dmz then count

commit



방화벽 정책 확인하는 방법

root> show security policies
Default policy: deny-all
Default policy log Profile ID: 0
Pre ID default policy: permit-all
From zone: dmz, To zone: trust
  Policy: trsut-to-dmz, State: enabled, Index: 5, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: any
    Destination addresses: any
    Applications: any
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count
From zone: trust, To zone: dmz
  Policy: trust-to-dmz, State: enabled, Index: 4, Scope Policy: 0, Sequence number: 1, Log Profile ID: 0
    Source vrf group: any
    Destination vrf group: any
    Source addresses: H-192.168.1.2/32
    Destination addresses: H-172.16.1.2/32
    Applications: T-23, T-443
    Source identity feeds: any
    Destination identity feeds: any
    Action: permit, log, count

root>




방화벽 정책 설정값 확인 방법 - 전체

root> show configuration security | display set | no-more
set security address-book global address H-192.168.1.2/32 192.168.1.2/32
set security address-book global address H-172.16.1.2/32 172.16.1.2/32
set security policies from-zone dmz to-zone trust policy trsut-to-dmz match source-address any
set security policies from-zone dmz to-zone trust policy trsut-to-dmz match destination-address any
set security policies from-zone dmz to-zone trust policy trsut-to-dmz match application any
set security policies from-zone dmz to-zone trust policy trsut-to-dmz then permit
set security policies from-zone dmz to-zone trust policy trsut-to-dmz then log session-init
set security policies from-zone dmz to-zone trust policy trsut-to-dmz then count
set security policies from-zone trust to-zone dmz policy trust-to-dmz match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz match application T-23
set security policies from-zone trust to-zone dmz policy trust-to-dmz match application T-443
set security policies from-zone trust to-zone dmz policy trust-to-dmz then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz then count
set security zones security-zone untrust host-inbound-traffic system-services dhcp
set security zones security-zone untrust host-inbound-traffic system-services ping
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone dmz host-inbound-traffic system-services ping
set security zones security-zone dmz interfaces ge-0/0/2.0

root>



방화벽 정책 trust zone에서 dmz zone만 확인 하는 방법

root> show configuration security policies from-zone trust to-zone dmz | display set | no-more
set security policies from-zone trust to-zone dmz policy trust-to-dmz match source-address H-192.168.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz match destination-address H-172.16.1.2/32
set security policies from-zone trust to-zone dmz policy trust-to-dmz match application T-23
set security policies from-zone trust to-zone dmz policy trust-to-dmz match application T-443
set security policies from-zone trust to-zone dmz policy trust-to-dmz then permit
set security policies from-zone trust to-zone dmz policy trust-to-dmz then log session-init
set security policies from-zone trust to-zone dmz policy trust-to-dmz then count



테스트해보겠습니다.

trust zone - SW01에서 dmz zone -SW02에 방화벽 정책

1. 192.168.1.2 -> 172.16.1.2 https 허용

2. 192.168.1.2 -> 172.16.1.2 telnet 허용

3. 192.168.1.2 -> 172.16.1.2 http 차단

4. 192.168.1.2 -> 172.16.1.2 ssh 차단

나머지는 모두 차단



SW01#telnet 172.16.1.2 443
Trying 172.16.1.2, 443 ... Open
^C
^^
v
[Connection to 172.16.1.2 closed by foreign host]
SW01#
SW01#telnet 172.16.1.2
Trying 172.16.1.2 ... Open

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************

User Access Verification

Username: cisco
Password:
**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
SW02#exit



Telnet이랑 SSH는 접속 실패 하였습니다. 방화벽 정책이 없기 때문입니다.

SW01#telnet 172.16.1.2 80
Trying 172.16.1.2, 80 ...
% Connection timed out; remote host not responding

SW01#ssh -l cisco 172.16.1.2
SW01#



방화벽 정책 hit count를 확인해 보겠습니다.

root> show security policies hit-count
Logical system: root-logical-system
Index   From zone        To zone           Name           Policy count  Action
1       trust            dmz               trust-to-dmz   2             Permit
2       dmz              trust             trsut-to-dmz   8             Permit



현재 방화벽 flow session를 확인하는 방법



SW01 -> SW02 telnet 시도

SW01#telnet 172.16.1.2
Trying 172.16.1.2 ... Open

**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************

User Access Verification

Username: cisco
Password:
**************************************************************************
* IOSv is strictly limited to use for evaluation, demonstration and IOS  *
* education. IOSv is provided as-is and is not supported by Cisco's      *
* Technical Advisory Center. Any use or disclosure, in whole or in part, *
* of the IOSv Software or Documentation to any third party for any       *
* purposes is expressly prohibited except as otherwise authorized by     *
* Cisco in writing.                                                      *
**************************************************************************
SW02#





Juniper SRX에서 show security flow session으로 세션 상태 확인

root> show security flow session
Session ID: 1641, Policy name: trust-to-dmz/4, State: Stand-alone, Timeout: 16, Valid
  In: 192.168.1.2/59113 --> 172.16.1.2/23;tcp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 24, Bytes: 1108,
  Out: 172.16.1.2/23 --> 192.168.1.2/59113;tcp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 20, Bytes: 2171,
Total sessions: 1



지금까지 [2024][Juniper SRX #13] firewall policy 글을 읽어주셔서 감사합니다.



안녕하세요.



오늘은 [2024][Juniper SRX #12] application and application-set입니다.



Juniper 방화벽 정책을 설정 시 Source port 또는 Destination port에 TCP/UDP, 또는 port number를 지정할 때 사용 합니다.

자세한 내용은 Juniper SRX 공식 홈페이지를 참조 바랍니다.

https://www.juniper.net/documentation/us/en/software/junos/security-policies/topics/topic-map/policy-application-sets-configuration.html



Security Policy Applications and Application Sets | Junos OS | Juniper Networks

When you create a policy, you must specify an application, or service, for it to indicate that the policy applies to traffic of that type. Sometimes the same applications or a subset of them can be present in multiple policies, making it difficult to manag

www.juniper.net



Applications은 두 가지로 분류됩니다.

1. standard

2. custom applications



standard way는 이미 Juniper SRX에서 정의된 포트를 말합니다. 주로 well-known port를 의미합니다.

set applications application standard-way application-protocol http

root# set applications application KK application-protocol ?
Possible completions:
  dns                  Domain Name Service
  ftp                  File Transfer Protocol
  ftp-data             File Transfer Protocol Data Session
  gprs-gtp-c           GPRS Tunneling Control Plane
  gprs-gtp-u           GPRS Tunneling User Plane
  gprs-gtp-v0          GPRS Tunneling Version 0
  gprs-sctp            GPRS Stream Control Protocol
  http                 Hypertext Transfer Protocol
  https                Hypertext Transfer Protocol
  ignore               Ignore application type
  ike-esp-nat          IKE/ESP with NAT
  imap                 Internet Mail Access Protocol
  imaps                Internet Mail Access Protocol Over TLS
  mgcp-ca              MGCP-CA
  mgcp-ua              MGCP-UA
  ms-rpc               Microsoft RPC
  none                 None
  pop3                 Post Office Protocol 3 Protocol
  pop3s                Post Office Protocol 3 Protocol Over TLS
  pptp                 Point-to-Point Tunneling Protocol
  q931                 Q.931
  ras                  RAS
  realaudio            RealAudio
  rsh                  Remote Shell
  rtsp                 Real Time Streaming Protocol
  sccp                 Skinny Client Control Protocol
  sip                  Session Initiation Protocol
  smtp                 Simple Mail Transfer Protocol
  smtps                Simple Mail Transfer Protocol Over TLS
  sqlnet-v2            Oracle SQL*Net Version 2
  ssh                  Secure Shell Protocol
  sun-rpc              Sun Microsystems RPC
  talk                 Talk Program
  telnet               Telnet Protocol
  tftp                 Trivial File Transfer Protocol
  twamp                Two Way Active Meaurement Protocol
[edit]



이번에는 custom 방식에 대해서 알아보겠습니다.

Protocol -> tcp

Source-port - 0-65535 -> source port는 랜덤으로 선택됩니다. 특정 Application은 source-port가 특정 포트로 동작하는 APP도 있습니다

Destination-port - 23

inactivity-timeout - 20초

set applications application telnet-1 protocol tcp
set applications application telnet-1 source-port 0-65535
set applications application telnet-1 destination-port 23
set applications application telnet-1 inactivity-timeout 20



방화벽 정책 설정 시 application를 아래처럼 불러와서 사용 가능 합니다.

set security policies from-zone trust to-zone untrust policy p1 match application telnet-1



만약에 하나에 방화벽 정책에 여러 개 application를 사용하고 싶으면 아래와 같이 설정 가능 합니다

set applications application http-1 protocol tcp
set applications application http-1 source-port 0-65535
set applications application http-1 destination-port 80
set applications application http-1 inactivity-timeout 20

아래처럼 application 정책을 계속 추가해야 합니다.

set security policies from-zone trust to-zone untrust policy p1 match application telnet-1
set security policies from-zone trust to-zone untrust policy p1 match application http-1



하지만 application-set을 이용하면 하나에 정책에 많은 application 추가해서 사용할 수 있습니다.



application-set에 http-1이랑 telnet-1을 할당합니다.

set applications application-set app-group application http-1
set applications application-set app-group application telnet-1



그리고 방화벽 정책에 application-set를 설정합니다.

set security policies from-zone trust to-zone untrust policy p1 match application-set app-group



application 설정값 확인 하는 명령어

root> show configuration applications | display set
set applications application standard-way application-protocol http
set applications application http-1 protocol tcp
set applications application http-1 source-port 0-65535
set applications application http-1 destination-port 80
set applications application http-1 inactivity-timeout 20
set applications application telnet-1 protocol tcp
set applications application telnet-1 source-port 0-65535
set applications application telnet-1 destination-port 23
set applications application telnet-1 inactivity-timeout 20
set applications application-set app-group application http-1
set applications application-set app-group application telnet-1

root>



지금까지 [2024][Juniper SRX #12] application and application-set 글을 읽어주셔서 감사합니다.

안녕하세요.



[2024][Juniper SRX #10] Administrator access restriction settings for MGMT입니다.



Juniper SRX에 SSH 또는 Telnet 또는 J-web를 설정하여 Juniper SRX 관리할 수 있지만 보안 설정을 안 하면 모든 IP대역이 Juniper SRX를 SSH 또는 Telent 또는 J-web를 접속하여 로그인할 수 있습니다.



회사에서 보안상 특정 IP대역만 Juniper SRX MGMT IP를 통하여 주니퍼 방화벽을 관리해야 하는 경우에는 아래와 같이 설정 가능 합니다.



토폴로지





Juniper SRX 기본 설정은 아래와 같습니다.

root> show configuration | display set | no-more
set version 21.3R1.9
set system root-authentication encrypted-password "$6$Ea7ce5UJ$33Cef6CXrDrf7O1iHX0Skwii8sjgCAeFvM5CXzEbX3/5QyNQxTMpRtregTUO/84DdvZhnEXel5WPvXKOu0hyx1"
set system login user juniper uid 2000
set system login user juniper class super-user
set system login user juniper authentication encrypted-password "$6$.zIMNUej$r05Ie68YwDsLLShNbIIYdL.TjI9p/ndcvxF0YOuOAbD.OlQWmgaABWskuOtmcU9ZRhp.VqM/tVcA2.tZMwc.W/"
set system services ssh root-login allow
set system services telnet
set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0
set interfaces fxp0 unit 0 family inet address 192.168.10.220/24
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



Cisco 스위치 기본 설정입니다.

Switch#conf t
Switch(config)#hostname SW1
SW1(config)#int g0/0
SW1(config-if)#no sw
SW1(config-if)#ip add dhcp
SW1(config-if)#no sh



Juniper Interface를 상태를 확인합니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up   inet     192.168.10.220/24
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



Cisco Interface를 확인합니다.

SW1#show ip int brie
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/1     unassigned      YES unset  up                    up
GigabitEthernet0/2     unassigned      YES unset  up                    up
GigabitEthernet0/3     unassigned      YES unset  up                    up
GigabitEthernet0/0     192.168.10.104  YES DHCP   up                    up
GigabitEthernet1/0     unassigned      YES unset  up                    up
GigabitEthernet1/1     unassigned      YES unset  up                    up
GigabitEthernet1/2     unassigned      YES unset  up                    up
GigabitEthernet1/3     unassigned      YES unset  up                    up
SW1#



Juniper SRX fxp0 IP: 192.168.10.220

Cisco Gi0/0 IP: 192.168.10.104



Cisco에서 Juniper fxp0로 Ping를 시도합니다

SW1#ping 192.168.10.220
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.10.220, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms
SW1#



Telnet Test - 정상적으로 동작합니다.

SW1#telnet 192.168.10.220
Trying 192.168.10.220 ... Open
login: juniper
Password:
Last login: Thu Jun 20 09:49:37 from 172.16.10.15

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
juniper>



SSH Test - 정상적으로 동작합니다.

SW1#ssh -l root 192.168.10.220
Password:
Last login: Sat Jun 22 06:12:39 2024
--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ #



현재 Cisco IP주소는 192.168.10.104인데, 보안 설정을 192.168.10.105만 Juniper SRX로 접속 가능 하게 설정해 보겠습니다.



1. IP 대상을 입력합니다. 여러 IP를 허용하면 여러 개를 입력합니다.

set policy-options prefix-list manager-ip 192.168.10.105/32



2. IP를 이용해서 Filter 정책을 만듭니다.

IP: 192.168.10.105

Protocol: tcp

Destination port: telnet https ssh

만 허용합니다. 그리고 나머지는 차단합니다.

set firewall filter manager-ip term accept_manager from prefix-list manager-ip
set firewall filter manager-ip term accept_manager from protocol tcp
set firewall filter manager-ip term accept_manager from destination-port telnet
set firewall filter manager-ip term accept_manager from destination-port https
set firewall filter manager-ip term accept_manager from destination-port ssh
set firewall filter manager-ip term accept_manager then accept
set firewall filter manager-ip term block_non_manager then discard



3. MGMT interface fxp0에 filter를 적용합니다.

set interfaces fxp0 unit 0 family inet filter input manager-ip

commit



그리고 설정을 적용합니다.



Cisco Side

Telent를 시도합니다. Juniper Filter정책 때문에 Telnet 접속이 실패합니다.

SW1#telnet 192.168.10.220
Trying 192.168.10.220 ...
% Connection timed out; remote host not responding

SW1#



SSH를 시도합니다. Juniper Filter정책 때문에 SSH 접속이 실패합니다.

SW1#ssh -l root 192.168.10.220
SW1#



Cisco Switch에서 IP주소를 192.168.10.105로 변경 후 Telnet과 SSH를 시도해 보겠습니다.

SW1(config)#int g0/0
SW1(config-if)#ip add 192.168.10.105 255.255.255.0
SW1(config-if)#no sh

SW1#show ip int brie
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/1     unassigned      YES unset  up                    up
GigabitEthernet0/2     unassigned      YES unset  up                    up
GigabitEthernet0/3     unassigned      YES unset  up                    up
GigabitEthernet0/0     192.168.10.105  YES manual up                    up
GigabitEthernet1/0     unassigned      YES unset  up                    up
GigabitEthernet1/1     unassigned      YES unset  up                    up
GigabitEthernet1/2     unassigned      YES unset  up                    up
GigabitEthernet1/3     unassigned      YES unset  up                    up
SW1#



Telnet 시도 - 허용된 IP이기 때문에 telnet이 성공합니다.

SW1#telnet 192.168.10.220
Trying 192.168.10.220 ... Open
login: juniper
Password:
Last login: Sat Jun 22 06:19:21 from 192.168.10.104

--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
juniper>



SSH 시도 - 허용된 IP이기 때문에 ssh가 성공합니다.

SW1#ssh -l root 192.168.10.220
Password:

Last login: Sat Jun 22 06:20:40 2024 from 192.168.10.104
--- JUNOS 21.3R1.9 Kernel 64-bit XEN JNPR-12.1-20210828.6e5b1bf_buil
root@:~ #



지금까지 [2024][Juniper SRX #10] Administrator access restriction settings for MGMT글을 읽어주셔서 감사합니다.

안녕하세요.



[2024][Juniper SRX #9] SSH and Telnet 설정하기입니다.



Juniper SRX은 fxp0이 MGMT interface입니다. 여기에 IP주소를 설정하고 외부에서 SSH나 Telent를 통해서 접속해 보겠습니다.



토폴로지는 아래와 같습니다.

기본적으로 설정값들을 지웁니다.

root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

root# set system root-authentication plain-text-password
New password:
Retype new password:

root# commit
commit complete

[edit]
root# commit
commit complete



fxp0에 IP주소를 할당합니다.

DHCP기능이 동작하면 자동으로 IP주소를 받을 수 있고 또는 수동으로 설정 가능 합니다.



DHCP로 IP주소 받기

root# set interfaces fxp0 unit 0 family inet dhcp

[edit]
root# commit



Interface에 IP 확인하기

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up   inet     192.168.10.220/24
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



수동으로 IP주소 설정하기

delete interfaces fxp0 unit 0 family inet dhcp
commit

root# set interfaces fxp0 unit 0 family inet address 192.168.10.104/24
root# set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253

[edit]
root# commit

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up   inet     192.168.10.220/24
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



Juniper SRX에 SSH 설정합니다.

root# set system services ssh root-login allow

[edit]
root# commit
commit complete



노트북에서 putty 또는 CRT를 이용해서 접속을 테스트합니다.



정상적으로 동작합니다.



이번에는 Telent를 설정합니다.

root# set system services telnet

[edit]
root# commit
commit complete





telnet은 기본적으로 root를 허용하지 않습니다. root계정으로 로그인을 시도해도 실패합니다.



만약에 telnet를 사용해야 하는 경우에는 user를 따로 생성합니다.

root# set system login user juniper class super-user

[edit]
root# set system login user juniper authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit
commit complete



juniper 계정을 새로 생성하였고 로그인을 시도합니다.



성공적으로 로그인됩니다.



Juniper SRX는 Web 기반에 방화벽에 설정을 지원합니다. 이번에는 j-web를 설정해 보겠습니다.

set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0



테스트를 위해서 fxp0 ip를 입력합니다.



지금까지 [2024][Juniper SRX #9] SSH, Telnet and web-management 설정하기 글을 읽어주셔서 감사합니다.

안녕하세요.



오늘은 [2024][Juniper SRX #8] Zone에 대해서 알아보겠습니다.



Juniper SRX는 Zone base Firewall입니다. Interface가 독자적으로 동작하지 못하고 interface는 하나에 Zone에 포함되어야 하고 방화벽 정책은 Zone를 기반으로 허용 또는 차단이 가능합니다.



이 부분은 추후에 방화벽 정책을 테스트할 때 좀 더 자세히 진행하겠습니다.



테스트 토폴로지는 아래와 같습니다.

1.vIOS Switch

2.vSRX를 사용 하였습니다.



IP정보는 아래와 같습니다

SRX:

ge-0/0/0 - 10.1.1.1/24 untrust zone

ge-0/0/1 - 172.16.1.1/24 dmz zone

ge-0/0/2 - 192.168.1.1/24 trust zone

fxp0 - dhcp - management zone

SW1

gi0/0 - 10.1.1.2/24

SW2

gi0/0 - 172.16.1.2/24

SW3

gi0/0 - 192.168.1.2/24

Juniper SRX Zone Types

1. fuctional zone (management Zone) - dedicate an interface just for the purpose of management

    일반적으로 fxp0이 management 인터페이스인데, data interface를 MGMT로 사용할 때 이 명령어를 사용하여

    MGMT역활한 할 수 있게 설정할 수 있습니다.

2. Security zone - to control traffic between different security zone

3. junos-host - control traffic between security zone and juniper device itself

4. null - discard traffic



현재 생성된 zone 리스트를 출력 하는 명령어

show security zones terse

root> show security zones terse
Zone                        Type
junos-host                  Security



아래 interface를 보면 fxp0이 SRX management interface입니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



fxp0 인터페이스에 IP주소를 DHCP 통해서 할당 받겠습니다.

간단하게 제 테스트랩을 설명하겠습니다



1. 제 노트북에서 Global Protect(VPN agent)로 팔로알토에 접속합니다.

2. EVE-NG는 VMware ESXi안에 설치되어 있스비다.

3. 팔로알토가 DHCP기능을 수행합니다.

그래서 fxp0 인터페이스는 자동으로 팔로알토로부터 IP를 받을 수 있습니다.



아니면 수동으로 설정하셔도 됩니다.

root# set interfaces fxp0 unit 0 family inet dhcp

[edit]
root# commit
commit complete



그리고 Interface에 IP주소를 확인합니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up   inet     192.168.10.104/24
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0



제 PC에서 SRX fxp0 192.168.10.104 ping 테스트입니다.

핑이 성공합니다.

C:\Users\admin>ping 192.168.10.104

Pinging 192.168.10.104 with 32 bytes of data:
Reply from 192.168.10.104: bytes=32 time=4ms TTL=63
Reply from 192.168.10.104: bytes=32 time=5ms TTL=63
Reply from 192.168.10.104: bytes=32 time=7ms TTL=63
Reply from 192.168.10.104: bytes=32 time=14ms TTL=63

Ping statistics for 192.168.10.104:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 4ms, Maximum = 14ms, Average = 7ms

C:\Users\admin>



fxp0를 수동으로 IP주소를 설정하기.

set interfaces fxp0 unit 0 family inet address 192.168.10.104/24
set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



PC에서 PIng테스트

C:\Users\admin>ping 192.168.10.104

Pinging 192.168.10.104 with 32 bytes of data:
Reply from 192.168.10.104: bytes=32 time=5ms TTL=63
Reply from 192.168.10.104: bytes=32 time=6ms TTL=63
Reply from 192.168.10.104: bytes=32 time=6ms TTL=63
Reply from 192.168.10.104: bytes=32 time=13ms TTL=63

Ping statistics for 192.168.10.104:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 5ms, Maximum = 13ms, Average = 7ms



어떤 Interface가 어떤 Zone에 할당되었는지 확인하는 명령어입니다.

show interfaces zone terse

root> show interfaces zone terse
Interface               Admin Link Proto    Local                 Remote                Zone
ge-0/0/0.0              up    up   inet     10.1.1.1/24
                                                                                        Null
sp-0/0/0.0              up    up   inet
                                   inet6                                                Null
sp-0/0/0.16383          up    up   inet                                                 Null
fxp0.0                  up    up   inet     192.168.10.104/24
                                                                                        Null
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
                                                                                        Null
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
                                                                                        Null
lo0.32768               up    up                                                        Null



fxp0는 기본적으로 null zone에 할당되어 있습니다.



일반적은 data용 interface를 MGMT interface로 사용할 때 사용 됩니다.

테스트를 위해서 ge-0/0/0를 MGMT interface로 만들어 보겠습니다.

root# set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24

[edit]
root# set security zones functional-zone management interfaces ge-0/0/0

[edit]
root# commit
commit complete

root> show security zones terse
Zone                        Type
management                  Functional
junos-host                  Security

root>




Zone를 확인하고 Interface 할당된 Zone도 확인합니다.

root> show security zones terse
Zone                        Type
management                  Functional
junos-host                  Security

root>

root> show interfaces zone terse
Interface               Admin Link Proto    Local                 Remote                Zone
ge-0/0/0.0              up    up   inet     10.1.1.1/24
                                                                                        Management
sp-0/0/0.0              up    up   inet
                                   inet6                                                Null
sp-0/0/0.16383          up    up   inet                                                 Null
fxp0.0                  up    up   inet     192.168.10.104/24
                                                                                        Null
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
                                                                                        Null
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
                                                                                        Null
lo0.32768               up    up                                                        Null

root>



테스트를 위해서 기존에 Ge-0/0/0 zone를 삭제합니다.

delete security zones functional-zone management interfaces ge-0/0/0.0
commit


root> show interfaces zone terse
Interface               Admin Link Proto    Local                 Remote                Zone
ge-0/0/0.0              up    up   inet     10.1.1.1/24
                                                                                        Null
sp-0/0/0.0              up    up   inet
                                   inet6                                                Null
sp-0/0/0.16383          up    up   inet                                                 Null
fxp0.0                  up    up   inet     192.168.10.104/24
                                                                                        Null
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
                                                                                        Null
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
                                                                                        Null
lo0.32768               up    up                                                        Null

root>



2



2. Security zone - to control traffic between different security zone



테스트를 위해서 IP를 설정합니다.

set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.1/24
set interfaces ge-0/0/2 unit 0 family inet address 192.168.1.1/24

commit



인터페이스를 확인합니다.


root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     10.1.1.1/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/1.0              up    up   inet     172.16.1.1/24
ge-0/0/2                up    up
ge-0/0/2.0              up    up   inet     192.168.1.1/24
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up   inet     192.168.10.104/24
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



Zone를 생성합니다.

set security zones security-zone trust
set security zones security-zone untrust
set security zones security-zone dmz

commit



Zone를 생성을 확인합니다.

root> show security zones terse
Zone                        Type
management                  Functional
dmz                         Security
trust                       Security
untrust                     Security
junos-host                  Security

root>



Interface를 Zone에 할당합니다.

set security zones security-zone trust interfaces ge-0/0/2.0
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone dmz interfaces ge-0/0/1.0

commit



Zone에 할당된 interface를 확인합니다.

root> show interfaces zone terse | match ge-
ge-0/0/0.0              up    up   inet     10.1.1.1/24
ge-0/0/1.0              up    up   inet     172.16.1.1/24
ge-0/0/2.0              up    up   inet     192.168.1.1/24

root>



Ping 테스트를 위해서 각 Zone에 PING를 허용합니다.

set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone untrust host-inbound-traffic system-services ping
set security zones security-zone dmz host-inbound-traffic system-services ping



SW1 gi0/0 IP를 설정하고 SRX ge-0/0/0 10.1.1.1로 PIng를 시도합니다.

Switch(config)#int g0/0
Switch(config-if)#no sw
Switch(config-if)#ip add 10.1.1.2 255.255.255.0
Switch(config-if)#no sh

Switch(config-if)#end
Switch# ping 10.1.1.1
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/146/579 ms
Switch#



SW2 gi0/0 IP를 설정하고 SRX ge-0/0/0 172.16.1.1로 PIng를 시도합니다.

Switch(config)#int g0/0
Switch(config-if)#no sw
Switch(config-if)#ip add 172.16.1.2 255.255.255.0
Switch(config-if)#no sh
Switch(config-if)#end
Switch#
Switch#ping 172.16.1.1
Sending 5, 100-byte ICMP Echos to 172.16.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 2/3/4 ms
Switch#



SW3 gi0/0 IP를 설정하고 SRX ge-0/0/0 192.168.1.1로 PIng를 시도합니다.

Switch#conf t
Switch(config)#int g0/0
Switch(config-if)#no sw
Switch(config-if)#ip add 192.168.1.2 255.255.255.0
Switch(config-if)#no sh
Switch(config-if)#end
Switch#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

*Jun 20 08:56:02.421: %SYS-5-CONFIG_I: Configured from console by console
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms
Switch#



서로 다른 Zone끼리 방화벽 정책이 없기 때문에 서로 간에 통신은 불가능합니다.

지금까지 [2024][Juniper SRX #8] Zone configuration 글을 읽어주셔서 감사합니다.

다음 강좌를 address-book에 대해서 알아보도록 하겠습니다.



감사합니다.

안녕하세요.



오늘은 [2024][Juniper SRX #7] host-inbound-traffic입니다.



주니퍼 SRX장비는 방화벽(보안) 장비이기 때문에, SRX에 interface가 목적지인 경우에는 기본적으로 패킷이 차단됩니다.



방법은 2가지입니다.

1. zone에서 host-inbound-traffic를 허용하는 방법 - Zone안에 있는 Interface에 일괄적으로 적용

2. Interface별로 host-inbound-trafic를 허용하는 방법 - Interface별로 개별 적용.

root# ...rity-zone trust host-inbound-traffic ?
Possible completions:
+ apply-groups         Groups from which to inherit configuration data
+ apply-groups-except  Don't inherit configuration data from these groups
> protocols            Protocol type of incoming traffic to accept
> system-services      Type of incoming system-service traffic to accept



Protocols를 선택하면 아래와 같습니다.

root# ...rity-zone trust host-inbound-traffic protocols ?
Possible completions:
  all                  All protocols
  bfd                  Bidirectional Forwarding Detection
  bgp                  Border Gateway Protocol
  dvmrp                Distance Vector Multicast Routing Protocol
  igmp                 Internet Group Management Protocol
  ldp                  Label Distribution Protocol
  msdp                 Multicast Source Discovery Protocol
  nhrp                 Next Hop Resolution Protocol
  ospf                 Open Shortest Path First
  ospf3                Open Shortest Path First version 3
  pgm                  Pragmatic General Multicast
  pim                  Protocol Independent Multicast
  rip                  Routing Information Protocol
  ripng                Routing Information Protocol next generation
  router-discovery     Router Discovery
  rsvp                 Resource Reservation Protocol
  sap                  Session Announcement Protocol
  vrrp                 Virtual Router Redundancy Protocol
[edit]



System-services를 선택하면 아래와 같습니다.

root# ...rity-zone trust host-inbound-traffic system-services ?
Possible completions:
  all                  All system services
  any-service          Enable services on entire port range
  appqoe               APPQOE active probe service
  bootp                Bootp and dhcp relay-agent service
  dhcp                 Dynamic Host Configuration Protocol
  dhcpv6               Enable Dynamic Host Configuration Protocol for IPv6
  dns                  DNS service
  finger               Finger service
  ftp                  FTP
  high-availability    High Availability service
  http                 Web management service using HTTP
  https                Web management service using HTTP secured by SSL
  ident-reset          Send back TCP RST to IDENT request for port 113
  ike                  Internet Key Exchange
  lsping               Label Switched Path ping service
  netconf              NETCONF service
  ntp                  Network Time Protocol service
  ping                 Internet Control Message Protocol echo requests
  r2cp                 Enable Radio-Router Control Protocol service
  reverse-ssh          Reverse SSH service
  reverse-telnet       Reverse telnet service
  rlogin               Rlogin service
  rpm                  Real-time performance monitoring
  rsh                  Rsh service
  snmp                 Simple Network Management Protocol service
  snmp-trap            Simple Network Management Protocol traps
  ssh                  SSH service
  tcp-encap            Tcp encapsulation service
  telnet               Telnet service
  tftp                 TFTP
  traceroute           Traceroute service
  webapi-clear-text    Webapi service using http
  webapi-ssl           Webapi service using HTTP secured by SSL
  xnm-clear-text       JUNOScript API for unencrypted traffic over TCP
  xnm-ssl              JUNOScript API service over SSL
[edit]



테스트를 해보겠습니다.



토폴로지 아래와 같습니다.

Juniper

1. Ge-0/0/0 - 10.1.1.1/24

2. Zone Trust 생성

3. Ge-0/0/0를 Zone Trust 할당

4. OSPF 설정



Cisco

1. g0/0 - 10.1.1.2/24 설정

2. lo0 - 192.168.1.1/24 설정

3. OSPF 설정



테스트

1. Juniper랑 Cisco랑 OSPF 네이버 확인

2. Juniper라우팅 테이블에 192.168.1.0/24 확인

2. Cisco에서 Juniper Interface ge-0/0/0 10.1.1.1로 PIng 시도



위에 테스트를 하기 위해서는 주니퍼에 host-inbound-traffic 기능이 필요합니다.



Juniper Side



1. 설정값을 초기화합니다.

root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes


[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit



2. Juniper Ge-0/0/0에 10.1.1.1/24 IP 할

root# set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24



3. Zone Trust 생성

[edit]
root# set security zones security-zone Trust

[edit]
root# set security zones security-zone Trust interfaces ge-0/0/0



4. Ospf 설정

root# set routing-options router-id 10.1.1.1
root# set protocols ospf area 0.0.0.0 interface ge-0/0/0



Cisco Side

1. Interface에 IP 할당하기

Switch>enable
Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#interface gigabitEthernet 0/0
Switch(config-if)#no sw
Switch(config-if)#no switchport
Switch(config-if)#ip address 10.1.1.2 255.255.255.0
Switch(config-if)#no shutdown

Switch(config)#interface loopback 1
Switch(config-if)#ip address 192.168.1.1 255.255.255.0
Switch(config-if)#ip ospf network point-to-point



2. OSPF 설정

Switch(config)#router ospf 1
Switch(config-router)#router-id 10.1.1.2
Switch(config-router)#network 0.0.0.0 0.0.0.0 area 0



테스트

Cisco에서 Juniper Ge-0/0/0 10.1.1.1로 PIng 테스

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
Switch#



Cisco랑 Juniper Interface 상태 확인

Switch#show ip int brie
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0     10.1.1.2        YES manual up                    up
GigabitEthernet0/1     unassigned      YES unset  up                    up
GigabitEthernet0/2     unassigned      YES unset  up                    up
GigabitEthernet0/3     unassigned      YES unset  up                    up
GigabitEthernet1/0     unassigned      YES unset  up                    up
GigabitEthernet1/1     unassigned      YES unset  up                    up
GigabitEthernet1/2     unassigned      YES unset  up                    up
GigabitEthernet1/3     unassigned      YES unset  up                    up
Loopback0              unassigned      YES unset  up                    up
Loopback1              192.168.1.1     YES manual up                    up
Switch#

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     10.1.1.1/24
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



Interface상태가 모두 다 up인데도 Ping 실패



Juniper Side

Zone에서 ping를 허용하는 host-inbound-traffic system-service 커맨드를 사용하여 허용하겠습니다.

root# set security zones security-zone Trust host-inbound-traffic system-services ping

[edit]
root# commit



Cisco에서 다시 Ping 테스트 시도 합니다

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/20/94 ms
Switch#



이번에는 Cisco에서 ospf 네이버를 확인하겠습니다. 네이버가 Full 상태가 아니라 INIT상태입니다.

Cisco랑 Juniper 사이에 네이버가 생성되지 않습니다.

Switch#show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface
10.1.1.1        128   INIT/DROTHER    00:00:38    10.1.1.1        GigabitEthernet0/0
Switch#



Juniper Side

Zone에서  host-inbound-traffic protocol 커맨드를 사용하여 ospf를 허용하겠습니다.

root# set security zones security-zone Trust host-inbound-traffic protocols ospf

[edit]
root# commit
commit complete



Cisco에서 네이버를 확인해 보겠습니다.

아래처럼 네이버가 생성되었습니다.

Switch#show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface
10.1.1.1        128   INIT/DROTHER    00:00:38    10.1.1.1        GigabitEthernet0/0



Juniper에서 네이버를 확인합니다. 그리고 라우팅 테이블에 192.168.1.0/24를 Cisco에서 받아 왔는지 확인합니다.

root> show ospf neighbor
Address          Interface              State           ID               Pri  Dead
10.1.1.2         ge-0/0/0.0             Full            10.1.1.2           1    33

root> show route

inet.0: 4 destinations, 4 routes (4 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.1.1.0/24        *[Direct/0] 00:16:43
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:16:43
                       Local via ge-0/0/0.0
192.168.1.0/24     *[OSPF/10] 00:00:29, metric 2
                    >  to 10.1.1.2 via ge-0/0/0.0
224.0.0.5/32       *[OSPF/10] 00:07:06, metric 1
                       MultiRecv

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:44:15
                       MultiRecv

root>



아래처럼 Zone에서 host-inbound-traffic 사용하여 해결합니다.

set security zones security-zone Trust host-inbound-traffic system-services ping
set security zones security-zone Trust host-inbound-traffic protocols ospf



이번에는 Zone에 Interface ge-0/0/0에 host-inbound-traffic 사용하여 해결해 보겠습니다.



Juniper Side

Zone에 설정된 host-inbound-traffic를 삭제합니다.

root#security zones security-zone Trust host-inbound-traffic system-services ping
root#security zones security-zone Trust host-inbound-traffic protocols ospf
root# commit
commit complete



Zone에 Interface ge-0/0/0에 host-inbound-traffic 설정

root#set security zones security-zone Trust interfaces ge-0/0/0.0 host-inbound-traffic system-services ping
root#set security zones security-zone Trust interfaces ge-0/0/0.0 host-inbound-traffic protocols ospf
root#commit



Cisco에서 Ping이랑 OSPF 테스트

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms

Switch#show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface
10.1.1.1        128   FULL/DR         00:00:33    10.1.1.1        GigabitEthernet0/0
Switch#



Juniper에서 ospf네이버랑 라우팅 테이블 확인

root> show ospf neighbor
Address          Interface              State           ID               Pri  Dead
10.1.1.2         ge-0/0/0.0             Full            10.1.1.2           1    36

root> show route

inet.0: 4 destinations, 4 routes (4 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.1.1.0/24        *[Direct/0] 00:22:05
                    >  via ge-0/0/0.0
10.1.1.1/32        *[Local/0] 00:22:05
                       Local via ge-0/0/0.0
192.168.1.0/24     *[OSPF/10] 00:05:51, metric 2
                    >  to 10.1.1.2 via ge-0/0/0.0
224.0.0.5/32       *[OSPF/10] 00:12:28, metric 1
                       MultiRecv

inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

ff02::2/128        *[INET6/0] 00:49:37
                       MultiRecv

root>



모두 다 정상적으로 동작합니다.



지금까지 [2024][Juniper SRX #7] host-inbound-traffic 글을 읽어 주셔서 감사합니다.



안녕하세요.



오늘은 [2024][Juniper SRX #6] Interface 설정 - RVI - Trunk mode - L2기반에서 동작하는 Layer3 Interface에 대해서 확인해 보겠습니다.



1. Layer3 Physical Interface - access mode

2. Layer3 Logical Interface - trunk mode

3. RVI IRB - access mode - L2기반에서 동작하는 Layer3 Interface

4. RVI IRB - trunk mode - L2기번에서 동작하는 Layer3 Interface



테스트를 위해서 아래처럼 Node 2개를 생성하고 케이블을 연결합니다

1. vSRX - ge-0/0/0

2. vIOS Switch - G0/0





1. Layer3 Physical Interface 테스트해 보겠습니다.



vSRX Side -

delete 디폴트 설정값을 지웁니다.

set system root-authentication plain-text-password : root 패스워드를 입력합니다.

commit : 설정값을 적용 및 저장합니다.



root@:~ # cli
root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit

commit complete

[edit]
root#





2. vSRX side



vlan을 생성합니다.

vlan name: VL10, VL20, V30

vlan-id: 10, 20, 30



그리고 vlan를 확인합니다.

root# set vlans VL10 vlan-id 10

[edit]
root# set vlans VL20 vlan-id 20

[edit]
root# set vlans VL30 vlan-id 30

[edit]
root# commit
commit complete

[edit]
root# exit
Exiting configuration mode

root> show vlans brief

Routing instance        VLAN name             Tag          Interfaces
default-switch          VL10                  10

default-switch          VL20                  20

default-switch          VL30                  30

default-switch          default               1


root>



Interface ge-0/0/0를 Trunk mode를 설정합니다.

그리고 VL10, VL20, VL30만 사용할 수 있도록 설정합니다.

root#  set interfaces ge-0/0/0 unit 0 family ethernet-switching interface-mode trunk
root#  set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members VL10 members VL20 members VL30



IRB를 설정합니다.

IRB10 - 10.1.1.1/24

IRB20 - 20.1.1.1/24

IRB30 - 30.1.1.1/24

root# set interfaces irb unit 10 family inet address 10.1.1.1/24

[edit]
root# set interfaces irb unit 20 family inet address 20.1.1.1/24

[edit]
root# set interfaces irb unit 30 family inet address 30.1.1.1/24

[edit]
root# commit
commit complete

[edit]
root#



IRB interface를 VLAN이랑 mapping를 합니다.

root# set vlans VL10 l3-interface irb.10

[edit]
root# set vlans VL20 l3-interface irb.20

[edit]
root# set vlans VL30 l3-interface irb.30

[edit]
root# commit
commit complete

[edit]



Interface 상태를 확인합니다.

root> show interfaces terse | no-more
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   eth-switch
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
irb.10                  up    up   inet     10.1.1.1/24
irb.20                  up    up   inet     20.1.1.1/24
irb.30                  up    up   inet     30.1.1.1/24
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down
vtep                    up    up



Cisco Side

Vlan를 생성합니다.



Vlan 10

Vlan 20

vlan 30



그리고 VLAN를 확인합니다.

Switch(config)#vlan 10
Switch(config-vlan)#vlan 20
Switch(config-vlan)#vlan 30
Switch(config-vlan)#end
Switch#show vlan brie

VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Gi0/1, Gi0/2, Gi0/3, Gi1/0
                                                Gi1/1, Gi1/2, Gi1/3
10   VLAN0010                         active    Gi0/0
20   VLAN0020                         active
30   VLAN0030                         active
1002 fddi-default                     act/unsup
1003 token-ring-default               act/unsup
1004 fddinet-default                  act/unsup
1005 trnet-default                    act/unsup
Switch#



Interface gi0/0를 Trunk mode로 설정합니다.

그리고 VLAN 10,20,30만 사용 가능 하게 설정합니다.

Switch(config)#interface gigabitEthernet 0/0
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport mode trunk
Switch(config-if)#switchport trunk allowed vlan 10,20,30
Switch(config-if)#



SVI를 생성합니다.

SVI 10 - 10.1.1.2/24

SVI 20 - 20.1.1.2/24

SVI 30 - 30.1.1.2/24

Switch(config)#interface vlan 10
Switch(config-if)#ip address 10.1.1.2 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#interface vlan 20
Switch(config-if)#ip address 20.1.1.2 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#interface vlan 30
Switch(config-if)#ip address 30.1.1.2 255.255.255.0
Switch(config-if)#no shutdown



Interface 상태를 확인합니다.

Switch#show ip int brie
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0     unassigned      YES unset  up                    up
GigabitEthernet0/1     unassigned      YES unset  up                    up
GigabitEthernet0/2     unassigned      YES unset  up                    up
GigabitEthernet0/3     unassigned      YES unset  up                    up
GigabitEthernet1/0     unassigned      YES unset  up                    up
GigabitEthernet1/1     unassigned      YES unset  up                    up
GigabitEthernet1/2     unassigned      YES unset  up                    up
GigabitEthernet1/3     unassigned      YES unset  up                    up
Vlan10                 10.1.1.2        YES manual up                    up
Vlan20                 20.1.1.2        YES manual up                    up
Vlan30                 30.1.1.2        YES manual up                    up
Switch#



Cisco Switch에서 vSRX로 ping를 시도합니다.

vSRX는 보안 장비이기 때문에 기본적으로 icmp 패킷을 차단합니다.

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
Switch#



vSRX side

Juniper SRX은 Zone Base Firewall입니다. 인터페이스를 사용하기 위해서 Zone 생성하고 Interface를 Zone안에 할당해주어야 합니다.



irb.10 -> trust_vl10

irb.20 -> trust_vl20

irb.30 -> trust_vl30



set security zones security-zone trust_vl10 interfaces irb.10
set security zones security-zone trust_vl10 host-inbound-traffic system-services ping
set security zones security-zone trust_vl20 interfaces irb.20
set security zones security-zone trust_vl20 host-inbound-traffic system-services ping

set security zones security-zone trust_vl30 interfaces irb.30
set security zones security-zone trust_vl30 host-inbound-traffic system-services ping





안녕하세요.



오늘은 [2024][Juniper SRX #5] Interface 설정 - RVI - untagged mode - L2기반에서 동작하는 Layer3 Interface에 대해서 확인해 보겠습니다.



1. Layer3 Physical Interface - access mode

2. Layer3 Logical Interface - trunk mode

3. RVI IRB - access mode - L2기반에서 동작하는 Layer3 Interface

4. RVI IRB - trunk mode - L2기번에서 동작하는 Layer3 Interface



테스트를 위해서 아래처럼 Node 2개를 생성하고 케이블을 연결합니다

1. vSRX - ge-0/0/0

2. vIOS Switch - G0/0





1. Layer3 Physical Interface 테스트해 보겠습니다.



vSRX Side -

delete 디폴트 설정값을 지웁니다.

set system root-authentication plain-text-password : root 패스워드를 입력합니다.

commit : 설정값을 적용 및 저장합니다.

root@:~ # cli
root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit

commit complete

[edit]
root#



2. vSRX side



vlan을 생성합니다.

vlan name: VL10

vlan-id: 10



그리고 vlan를 확인합니다.

root# set vlans VL10 vlan-id 10

root> show vlans

Routing instance        VLAN name             Tag          Interfaces
default-switch          VL10                  10
                                                           ge-0/0/0.0*
default-switch          default               1




ge-0/0/0 access mode - untagged mode로 변경합니다.

ge-0/0/0 interface에 VL10를 설정합니다.

인터페이스는 VLAN10만 허용합니다. tagged 포트가 아니기 때문에, VLAN 1개 이상 허용 할 수 없습니다.

root#  set interfaces ge-0/0/0 unit 0 family ethernet-switching interface-mode access
root#  set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members VL10



VL10를 l3-interface irb.10이랑 Mapping 합니다.

root# set vlans VL10 l3-interface irb.10



Interface상태를 확인합니다.

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.0              up    up   eth-switch
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
gre                     up    up
ipip                    up    up
irb                     up    up
irb.10                  up    up   inet     10.1.1.1/24
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down
vtep                    up    up



set interfaces ge-0/0/0 unit 0 family ethernet-switching interface-mode access
set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members VL10
set interfaces irb unit 10 family inet address 10.1.1.1/24
set vlans VL10 vlan-id 10

set vlans VL10 l3-interface irb.10



Cisco Side



Vlan10를 만들고 Vlan를 확인합니다.

Switch(config)#vlan 10
Switch(config-vlan)#end
Switch#show vlan br
*Jun 10 08:47:47.665: %SYS-5-CONFIG_I: Configured from console by consoleie

VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Gi0/1, Gi0/2, Gi0/3, Gi1/0
                                                Gi1/1, Gi1/2, Gi1/3
10   VLAN0010                         active    Gi0/0
1002 fddi-default                     act/unsup
1003 token-ring-default               act/unsup
1004 fddinet-default                  act/unsup
1005 trnet-default                    act/unsup
Switch#



Interface를 설정합니다.

Switch(config)#interface gigabitEthernet 0/0
Switch(config-if)#switchport access vlan 10
Switch(config-if)#switchport mode access
Switch(config-if)#



SVI Interface를 설정합니다.

Switch(config)#interface vlan 10
Switch(config-if)#ip address 10.1.1.2 255.255.255.0
Switch(config-if)#no shutdown



Cisco Switch에서 SRX로 ping를 시도합니다.

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
Switch#



vSRX

Juniper SRX은 Zone Base Firewall입니다. 인터페이스를 사용하기 위해서 Zone 생성하고 Interface를 Zone안에 할당해주어야 합니다.


set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone trust interfaces ge-0/0/0.0

root# set security zones security-zone trust interfaces ge-0/0/0.0
root# set security zones security-zone trust host-inbound-trafic system-services ping

[edit]
root# commit
commit complete

[edit]
root#



Cisco Side

다시 Ping를 시도합니다.

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/23/109 ms
Switch#



지금까지 [2024][Juniper SRX #5] Interface 설정 - RVI - untagged mode 글을 읽어 주셔서 감사합니다.

안녕하세요.



오늘은 [2024][Juniper SRX #4] Interface 설정 - Layer3 Logical Interface에 대해서 확인해 보겠습니다.



1. Layer3 Physical Interface - untagged mode

2. Layer3 Logical Interface - tagged mode - sub interface개념

3. RVI - untagged mode - L2기반에서 동작하는 Layer3 Interface

4. RVI - tagged mode - L2기번에서 동작하는 Layer3 Interface



테스트를 위해서 아래처럼 Node 2개를 생성하고 케이블을 연결합니다

1. vSRX - ge-0/0/0

2. vIOS Switch - G0/0





1. Layer3 Physical Interface 테스트해 보겠습니다.



vSRX Side -

delete 디폴트 설정값을 지웁니다.

set system root-authentication plain-text-password : root 패스워드를 입력합니다.

commit : 설정값을 적용 및 저장합니다.

root@:~ # cli
root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit

commit complete

[edit]
root#



VLAN를 3개를 생성합니다.

VL10 - 10
VL20 - 20
VL30 - 30

왼쪽은 VLAN이름을 입니다.

오른쪽은 VLAN번호입니다.

root# set vlans VL10 vlan-id 10

[edit]
root# set vlans VL20 vlan-id 20

[edit]
root# set vlans VL30 vlan-id 30

[edit]
root#



ge-0/0/0 인터페이스를 tagging 인터페이스로 설정합니다. 이 인터페이스를 통해서 VLAN 1개 이상을 전달받을 수 있습니다 즉 위에 설정한 VLAN 10, 20, 30이 Juniper Ge-0/0/0 tagging port로 트래픽을 받을 수 있습니다.

root# set interfaces ge-0/0/0 vlan-tagging
[edit]
root# set interfaces ge-0/0/0 unit 10 vlan-id 10
[edit]
root# set interfaces ge-0/0/0 unit 10 family inet address 10.1.1.1/24
[edit]
root# set interfaces ge-0/0/0 unit 20 vlan-id 20
[edit]
root# set interfaces ge-0/0/0 unit 20 family inet address 20.1.1.1/24
[edit]
root# set interfaces ge-0/0/0 unit 30 vlan-id 30
[edit]
root# set interfaces ge-0/0/0 unit 30 family inet address 30.1.1.1/24



Interface 상태를 확인합니다.


root> show interfaces terse | match inet
ge-0/0/0.10             up    up   inet     10.1.1.1/24
ge-0/0/0.20             up    up   inet     20.1.1.1/24
ge-0/0/0.30             up    up   inet     30.1.1.1/24
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0

root>



Cisco Switch Side



Vlan 10, 20 and 30를 생성합니다.

Switch(config)#vlan 10
Switch(config-vlan)#vlan 20
Switch(config-vlan)#vlan 30



Gi0/0 Interface를 Trunk로 생성합니다.

Switch(config)#int g0/0
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport mode trunk
Switch(config-if)#no shutdown



Gi0/0 서브 인터페이스를 생성합니다.

Switch(config)#interface vlan 10
Switch(config-if)#ip address 10.1.1.2 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#interface vlan 20
Switch(config-if)#ip address 20.1.1.2 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch(config)#interface vlan 30
Switch(config-if)#ip address 30.1.1.2 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#



Interface 상태를 확인합니다.

Switch#show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0     unassigned      YES unset  up                    up
GigabitEthernet0/1     unassigned      YES unset  up                    up
GigabitEthernet0/2     unassigned      YES unset  up                    up
GigabitEthernet0/3     unassigned      YES unset  up                    up
GigabitEthernet1/0     unassigned      YES unset  up                    up
GigabitEthernet1/1     unassigned      YES unset  up                    up
GigabitEthernet1/2     unassigned      YES unset  up                    up
GigabitEthernet1/3     unassigned      YES unset  up                    up
Vlan10                 10.1.1.2        YES manual up                    up
Vlan20                 20.1.1.2        YES manual up                    up
Vlan30                 30.1.1.3        YES manual up                    up
Switch#


Cisco Switch에서 vSRX로 ping를 시도합니다.

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
Switch#



vSRX

Juniper SRX은 Zone Base Firewall입니다. 인터페이스를 사용하기 위해서 Zone 생성하고 Interface를 Zone안에 할당해주어야 합니다.

root#set security zones security-zone trust_vl10 interfaces ge-0/0/0.10
root#set security zones security-zone trust_vl10 host-inbound-traffic system-services ping
root#set security zones security-zone trust_vl20 interfaces ge-0/0/0.20
root#set security zones security-zone trust_vl20 host-inbound-traffic system-services ping
root#set security zones security-zone trust_vl30 interfaces ge-0/0/0.30
root#set security zones security-zone trust_vl30 host-inbound-traffic system-services ping



root#set security zones security-zone trust_vl10 interfaces ge-0/0/0.10
root#set security zones security-zone trust_vl10 host-inbound-traffic system-services ping
root#set security zones security-zone trust_vl20 interfaces ge-0/0/0.20
root#set security zones security-zone trust_vl20 host-inbound-traffic system-services ping
root#set security zones security-zone trust_vl30 interfaces ge-0/0/0.30
root#set security zones security-zone trust_vl30 host-inbound-traffic system-services ping


root# commit
commit complete



Cisco Switch에서 다시 Ping테스트를 시도합니다.

Switch#
Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/5 ms
Switch#ping 20.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 20.1.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms
Switch#ping 30.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 30.1.1.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms
Switch#



지금까지 [2024][Juniper SRX #4] Interface 설정 - Layer3 Logical Interface 글을 읽어 주셔서 감사합니다.

안녕하세요.



오늘은 [2024][Juniper SRX #3] Interface 설정에 대해서 확인해 보겠습니다.



1. Layer3 Physical Interface - untagged mode

2. Layer3 Logical Interface - tagged mode

3. RVI - untagged mode - L2기반에서 동작하는 Layer3 Interface

4. RVI - tagged mode - L2기번에서 동작하는 Layer3 Interface



테스트를 위해서 아래처럼 Node 2개를 생성하고 케이블을 연결합니다

1. vSRX - ge-0/0/0

2. vIOS Switch - G0/0



1. Layer3 Physical Interface 테스트해 보겠습니다.



vSRX Side -

delete 디폴트 설정값을 지웁니다.

set system root-authentication plain-text-password : root 패스워드를 입력합니다.

commit : 설정값을 적용 및 저장합니다.

root@:~ # cli
root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# commit

commit complete

[edit]
root#



Interface ge-0/0/0에 10.1.1.1/24 설정합니다.

그리고 show interface terse | match ge-0/0/0를 통해서 IP를 확인합니다.



- Set interfaces [인터페이스이름] [논리적 인터페이스넘버] [protocol종류] [IP주소/서브넷마스크]
※ 논리적 인터페이스는 일반적으로 0을 사용하며, protocol종류는 아래와 같음.
inet : ipv4inet6 : ipv6 mpls: mpls ethernet-switching : L2스위칭

root# set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24

[edit]
root# commit
commit complete

root> show interfaces terse | match ge-0/0/0
ge-0/0/0                up    up
ge-0/0/0.0              up    up   inet     10.1.1.1/24



Cisco Switch Side

Switch>en
Switch#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#int g0/0
Switch(config-if)#no sw
Switch(config-if)#ip add 10.1.1.2 255.255.25
Switch(config-if)#no sh
Switch(config-if)#end
Switch#show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0     10.1.1.2        YES manual up                    up
GigabitEthernet0/1     unassigned      YES unset  up                    up
GigabitEthernet0/2     unassigned      YES unset  up                    up
GigabitEthernet0/3     unassigned      YES unset  up                    up
GigabitEthernet1/0     unassigned      YES unset  up                    up
GigabitEthernet1/1     unassigned      YES unset  up                    up
GigabitEthernet1/2     unassigned      YES unset  up                    up
GigabitEthernet1/3     unassigned      YES unset  up                    up
Switch#
Switch#



Cisco Switch에서 vSRX 쪽으로 Ping 테스트

하지만 실패하였습니다. 그 이유는 vSRX장비는 보안 장비이기 때문에 기본 적으로 ping를 차단하기 때문에 ping이 실패합니다.

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
Switch#



vSRX

Juniper SRX은 Zone Base Firewall입니다. 인터페이스를 사용하기 위해서 Zone 생성하고 Interface를 Zone안에 할당해주어야 합니다.


set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone trust interfaces ge-0/0/0.0

root# set security zones security-zone trust interfaces ge-0/0/0
root# set security zones security-zone trust host-inbound-traffic system-services  ping
[edit]
root# commit
commit complete



Cisco Side

Cisco Switch에서 vSRX Interface로 Ping를 시도 시 아래와 같이 성공합니다.

Switch#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/96/473 ms
Switch#



지금까지 [2024][Juniper SRX #3] Interface 설정 - Layer3 Physical Interface 글을 읽어 주셔서 감사합니다.

안녕하세요.



이번에는 [2024][Juniper SRX #2] Interface Numbering입니다.

주니퍼 포트 이름을 확인하기 위해서 샘플로 MX960 장비 사진을 가지고 왔습니다.



https://www.juniper.net/documentation/us/en/hardware/mx960/topics/concept/mx960-fpc-pic-port-interface-numbering.html



MX960 PIC Port and Interface Numbering | Juniper Networks

Each port on a PIC corresponds to a unique interface name in the CLI. In the syntax of an interface name, a hyphen (-) separates the media type from the FPC slot number (represented as an FPC in the CLI). The FPC slot number corresponds to the first number

www.juniper.net



MX960를 Chassis형 라우터입니다.



FPC - Flexible PIC Concentrator - 번호는 0부터 시작합니다

PIC -  Physical Interface Card - 번호는 0부터 시작합니다

Port -  Physical Interface Card에 Port를 의미합니다. - 번호는 0부터 시작합니다.



아래 사진 빨간색 사각형이 FPC를 합니다. 번호는 왼쪽부터 오른쪽으로 시작합니다

아래 사진 파란색 사각형이 PIC를 합니다.

아래 사진 초록색 사각형이 Port를 의미합니다.



Port는 미티어 타입 별로 이름이 다르게 지정됩니다.

1. fe: Fast Etheretnet 포트를 의미합니다. Ex) fe-0/0/0     --> FPC 0 PIC 0 Port 0

2. ge: Gigabit Ethernet 포트를 의미합니다. Ex) ge-0/0/0   --> FPC 0 PIC 0 Port 0

3. xe: 10G Gigabit Ethernet 포트를 의미합니다. Ex) xe-1/0/1 -> FPC 1 PIC 0 Port 1

4. ae: Aggregated Ethernet 포트를 의미합니다. ae1: 두 번째 논리적인 인터페이

5. reth: Redundant Ethernet 포트를 의미합니다. reth0: 첫 번째 Redundant Ethernet 포를 의미합니다.



장비 콘솔 연결 후 커맨드로 확인이 가능합니다.

show chassis hardware 입력하면 아래처럼 표시됩니다.

FPC 0

PIC 0

root> show chassis hardware
Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                fd45efae5e05      VSRX
Midplane
System IO
Routing Engine                                           VSRX-2CPU-4G memory
FPC 0                     BUILTIN      BUILTIN           FPC
  PIC 0                                                  VSRX DPDK GE
Power Supply 0



이번에는 Interface port를 확인해 보겠습니다. 현재 EVE-NG에서 Juniper SRX를 생성했을 때 디폴트 값으로 인터페이스를 4개입니다.

ge-0/0/0

ge-0/0/1

ge-0/0/2

fxp0 - MGMT Interface

root> show interfaces terse | grep ge-0/0
ge-0/0/0                up    up
ge-0/0/1                up    up
ge-0/0/2                up    up



만약에 인터페이스를 더 추가하고 싶다면 아래처럼 수정합니다.

Ethernets에 숫자를 8로 입력하고 SRX를 부팅합니다.

장비를 부팅 후 확인해 보겠습니다.

ge-0/0/0 ~ 6 그리고 fxp0를 더 하면 총 8개 인터페이스를 확인할 수 있습니다.

인터페이스가 더 필요하시면 위에 사진처럼 인터페이스를 추가하면 됩니다.

root> show interfaces terse | match ge-0/0
ge-0/0/0                up    up
ge-0/0/1                up    up
ge-0/0/2                up    up
ge-0/0/3                up    up
ge-0/0/4                up    up
ge-0/0/5                up    up
ge-0/0/6                up    up



지금까지 [2024][Juniper SRX #2] Interface Numbering  글을 읽어주셔서 감사합니다.



안녕하세요.



오늘은 [2024][Juniper SRX #1] 기본 CLI 명령어를 확인해 보겠습니다.



1. Operational mode

아래처럼 hostname> 이 상태가 Operation mode입니다.

만약에 hostname이 vSRX이면 vSRX>으로 표시됩니다.



이 모드에서는 show, monitor, request 등 주로 설정값 등을 확인할 때 이 모드를 사용합니다.

root>



예를 들어 Interface 상태를 확인하고 싶을 경우

show interface terse

root> show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

root>



2. configuration mode

이 모드로 들어가기 위해서는 아래처럼 operation mode에서 configure 명령어를 입력합니다.

root>에서 root# 바뀌었습니다. #의미가 configuration mode를 의미합니다.

이 모드에서는 edit, set, delete, activate 등의 명령어 사용가능

root> configure
Entering configuration mode

[edit]
root#



만약에 configuration mode에서 operation mode에 있는 명령어를 사용하고 싶으면 run 명령어를 앞에 사용합니다.

root# run show interfaces terse
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
gr-0/0/0                up    up
ip-0/0/0                up    up
lsq-0/0/0               up    up
lt-0/0/0                up    up
mt-0/0/0                up    up
sp-0/0/0                up    up
sp-0/0/0.0              up    up   inet
                                   inet6
sp-0/0/0.16383          up    up   inet
ge-0/0/1                up    up
ge-0/0/2                up    up
dsc                     up    up
fti0                    up    up
fxp0                    up    up
fxp0.0                  up    up
gre                     up    up
ipip                    up    up
irb                     up    up
lo0                     up    up
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet     10.0.0.1            --> 0/0
                                            10.0.0.16           --> 0/0
                                            128.0.0.1           --> 0/0
                                            128.0.0.4           --> 0/0
                                            128.0.1.16          --> 0/0
lo0.32768               up    up
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pp0                     up    up
ppd0                    up    up
ppe0                    up    up
st0                     up    up
tap                     up    up
vlan                    up    down

[edit]
root#



3. 계층 간 이동 명령어

3-1 edit

3-2 top

3-3 up

3-4 exit



Juniper는 리눅스 기반에 동작하기 때문에 리눅스에 Statement Hierarchy 구조를 사용합니다.



top 명령어

현재 interfaces 안에 있습니다. 이 상태에서 top명령어를 이용하고 최상으로 돌아갑니다.

최송이는 configuration mode입니다.

root# edit interfaces

[edit interfaces]

root# top

[edit]
root#



up 명령어



현재 system -> services -> ftp 위치에 있습니다.

up 명령어를 사용하면 바로 윗단계 services로 이동합니다.

root# edit system services ftp

[edit system services ftp]
root#

root# up

[edit system services]
root#



만약에 2단계 위로 올라가고 싶으면 up 2 입력하면 됩니다.

[edit system services ftp]
root# up 2

[edit system]
root#



exit 명령어

한 단계 위로 이동 합니다.

또 configuration mode 최상위에서 exit 입력하면 operation mode로 진입합니다.

root# edit system

[edit system]
root#

root# exit

[edit]
root#

root# exit

Exiting configuration mode

root>



4. 명령어 단축키 사용방법

- Ctrl + p 또는 위 화살표키: 직전명령어호출
- Ctrl + n 또는 아래 화살표키 : 직전명령어 간 이동
- Ctrl + a, e : 명령어 제일 앞, 뒤으로 커서 이동
- Ctrl + w : 커서 앞 또는 커서가 위치한 단어 삭제



5. 설정 추가 삭제 명령어

set: 설정 추가 명령어

delete: 설정 삭제 명령어



set 명령어로 hostname를 설정해 보겠습니다.



주니퍼 디폴트 값으로 root 비밀번호가 없기 때문에 commit를 눌러서 변경값이 저장되지 않습니다.

우선 root password를 입력합니다.

set system root-authentication plain-text-password



그리고 호스트이름을 변경합니다

set system host-name vSRX



그리고 설정값을 저장 및 즉시 변경 합니다.

commit



Hostname이 바뀌었습니다.

root> configure
root# set system root-authentication plain-text-password
New password:
Retype new password:

root# set system host-name vSRX

[edit]
root# commit
commit complete

[edit]
root@vSRX#



이번에는 delete 명령어를 사용해 보겠습니다.



set system services ftp 이 명령어를 삭제해 보겠습니다.

delete system services ftp

root@vSRX> show configuration | display set | no-more
set version 21.3R1.9
set system root-authentication encrypted-password "$6$L1Uj2iTj$/c8wM7UteO/L/q5NWbwvvTiYhwADjApBAJ7LQCQaZDVQfgwStnuOH36if38V.CMAxpr3Ia2Yyul0TGgHTdSbg/"
set system services ftp
set system services ssh
set system services web-management http interface fxp0.0
set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any any
set system syslog file messages authorization info
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood queue-size 2000
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
set security policies from-zone trust to-zone trust policy default-permit match source-address any
set security policies from-zone trust to-zone trust policy default-permit match destination-address any
set security policies from-zone trust to-zone trust policy default-permit match application any
set security policies from-zone trust to-zone trust policy default-permit then permit
set security policies from-zone trust to-zone untrust policy default-permit match source-address any
set security policies from-zone trust to-zone untrust policy default-permit match destination-address any
set security policies from-zone trust to-zone untrust policy default-permit match application any
set security policies from-zone trust to-zone untrust policy default-permit then permit
set security policies pre-id-default-policy then log session-close
set security zones security-zone trust tcp-rst
set security zones security-zone untrust screen untrust-screen
set interfaces fxp0 unit 0




root@vSRX> configure
Entering configuration mode

[edit]
root@vSRX# delete system services ftp

[edit]
root@vSRX# commit
commit complete

[edit]
root@vSRX# run show configuration | display set | match ftp

[edit]
root@vSRX#



6. Pipe 명령어 사용 방법

- count : 표시되는 값의 라인 수를 출력함
- display : 설정값등을 보여주는 방식을 변경하여 표시
             detail : 설정값에 주석으로 추가설정 가능한 예제를 표시
             set : 설정값을 set형식으로 표시
            xml : 설정값을 xml형식으로 표시
- except : 특정 값을 제외한 모든 값을 표시
- find : 특정값이 처음으로 시작되는 위치부터 표시
- match : 특정값이 포함된 값만 표시
- no-more : 표시내용이 한 페이지를 넘더라도 한 번에 모든 내용을 출력함
- hold : 표시내용이 한 페이지를 넘을 때 한 페이지단위로 표시하며 마지막에
--More-- 표시를 하지 않음
- save : 표시되는 값을 파일로 바로 저장 ex) show config | save 20120406.txt
- last : 표시내용의 마지막 부분을 표시 ex ) show log message | last 30(마지막 30라인만 출력)
- trim : 표시되는 값을 왼쪽을 기준으로 특정문자 수만큼 삭제하고 표시 * show log message Apr 6 15:55:22 SRX210 login: Login attempt for user stcon from host 1.1.1.100 * show log message | trim 15 (왼쪽기준으로 15자 삭제하고 출력) SRX210 login: Login attempt for user stcon from host 1.1.1.100



현재 juniper 방화벽 설정값 확인 하기

root@vSRX> show configuration
## Last commit: 2024-06-09 12:47:19 UTC by root
version 21.3R1.9;
system {
    root-authentication {
        encrypted-password "$6$L1Uj2iTj$/c8wM7UteO/L/q5NWbwvvTiYhwADjApBAJ7LQCQaZDVQfgwStnuOH36if38V.CMAxpr3Ia2Yyul0TGgHTdSbg/"; ## SECRET-DATA
    }
    services {
        ssh;
        web-management {
            http {
                interface fxp0.0;
            }
            https {
                system-generated-certificate;
                interface fxp0.0;
            }
        }
    }
    syslog {
        file interactive-commands {
            interactive-commands any;
        }
        file messages {
            any any;
            authorization info;
        }
    }
    license {
        autoupdate {
            url https://ae1.juniper.net/junos/key_retrieval;
        }
    }
}
security {
    screen {
        ids-option untrust-screen {
            icmp {
                ping-death;
            }
            ip {
                source-route-option;
                tear-drop;
            }
            tcp {
                syn-flood {
                    alarm-threshold 1024;
                    attack-threshold 200;
                    source-threshold 1024;
                    destination-threshold 2048;
                    queue-size 2000; ## Warning: 'queue-size' is deprecated
                    timeout 20;
                }
                land;
            }
        }
    }
    policies {
        from-zone trust to-zone trust {
            policy default-permit {
                match {
                    source-address any;
                    destination-address any;
                    application any;
                }
                then {
                    permit;
                }
            }
        }
        from-zone trust to-zone untrust {
            policy default-permit {
                match {
                    source-address any;
                    destination-address any;
                    application any;
                }
                then {
                    permit;
                }
            }
        }
        pre-id-default-policy {
            then {
                log {
                    session-close;
                }
            }
        }
    }
    zones {
        security-zone trust {
            tcp-rst;
        }
        security-zone untrust {
            screen untrust-screen;
        }
    }
}
interfaces {
    fxp0 {
        unit 0;
    }
}

root@vSRX>



set 방식으로 설정값 표시 하기

show configuration | dispaly set

root@vSRX> show configuration | display set
set version 21.3R1.9
set system root-authentication encrypted-password "$6$L1Uj2iTj$/c8wM7UteO/L/q5NWbwvvTiYhwADjApBAJ7LQCQaZDVQfgwStnuOH36if38V.CMAxpr3Ia2Yyul0TGgHTdSbg/"
set system services ssh
set system services web-management http interface fxp0.0
set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any any
set system syslog file messages authorization info
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood queue-size 2000
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
---(more)---



위에 --(more)-- 표시 없이 한꺼번에 output 표시하기.

root@vSRX> show configuration | display set | no-more
set version 21.3R1.9
set system root-authentication encrypted-password "$6$L1Uj2iTj$/c8wM7UteO/L/q5NWbwvvTiYhwADjApBAJ7LQCQaZDVQfgwStnuOH36if38V.CMAxpr3Ia2Yyul0TGgHTdSbg/"
set system services ssh
set system services web-management http interface fxp0.0
set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any any
set system syslog file messages authorization info
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood queue-size 2000
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
set security policies from-zone trust to-zone trust policy default-permit match source-address any
set security policies from-zone trust to-zone trust policy default-permit match destination-address any
set security policies from-zone trust to-zone trust policy default-permit match application any
set security policies from-zone trust to-zone trust policy default-permit then permit
set security policies from-zone trust to-zone untrust policy default-permit match source-address any
set security policies from-zone trust to-zone untrust policy default-permit match destination-address any
set security policies from-zone trust to-zone untrust policy default-permit match application any
set security policies from-zone trust to-zone untrust policy default-permit then permit
set security policies pre-id-default-policy then log session-close
set security zones security-zone trust tcp-rst
set security zones security-zone untrust screen untrust-screen
set interfaces fxp0 unit 0



- find 명령어 - 특정값이 처음으로 시작되는 위치부터 추력

위에 설정값에서 policies 줄이 있는 곳부터 끝까지 출력해 보겠습니다.

root@vSRX> show configuration | display set | find policies
set security policies from-zone trust to-zone trust policy default-permit match source-address any
set security policies from-zone trust to-zone trust policy default-permit match destination-address any
set security policies from-zone trust to-zone trust policy default-permit match application any
set security policies from-zone trust to-zone trust policy default-permit then permit
set security policies from-zone trust to-zone untrust policy default-permit match source-address any
set security policies from-zone trust to-zone untrust policy default-permit match destination-address any
set security policies from-zone trust to-zone untrust policy default-permit match application any
set security policies from-zone trust to-zone untrust policy default-permit then permit
set security policies pre-id-default-policy then log session-close
set security zones security-zone trust tcp-rst
set security zones security-zone untrust screen untrust-screen
set interfaces fxp0 unit 0



- match 특정값이 포함된 값만 표시해 보겠습니다

zones이라는 단어가 있는 줄만 표시해 보겠습니다.

root@vSRX> show configuration | display set | match zones
set security zones security-zone trust tcp-rst
set security zones security-zone untrust screen untrust-screen

root@vSRX>



- except: 특정 값을 제외한 모든 값을 표시합니다.

zones이라는 단어가 있는 줄을 제외하고 출력해 보겠습니다

root@vSRX> show configuration | display set | except zones
set version 21.3R1.9
set system root-authentication encrypted-password "$6$L1Uj2iTj$/c8wM7UteO/L/q5NWbwvvTiYhwADjApBAJ7LQCQaZDVQfgwStnuOH36if38V.CMAxpr3Ia2Yyul0TGgHTdSbg/"
set system services ssh
set system services web-management http interface fxp0.0
set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any any
set system syslog file messages authorization info
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood queue-size 2000
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
set security policies from-zone trust to-zone trust policy default-permit match source-address any
set security policies from-zone trust to-zone trust policy default-permit match destination-address any
set security policies from-zone trust to-zone trust policy default-permit match application any
set security policies from-zone trust to-zone trust policy default-permit then permit
set security policies from-zone trust to-zone untrust policy default-permit match source-address any
set security policies from-zone trust to-zone untrust policy default-permit match destination-address any
set security policies from-zone trust to-zone untrust policy default-permit match application any
set security policies from-zone trust to-zone untrust policy default-permit then permit
set security policies pre-id-default-policy then log session-close
set interfaces fxp0 unit 0

root@vSRX>



save - 출력값을 파일로 저장하는 명령어입니다



설정값을 file로 저장해 보겠습니다.

file 이름은 config_backup입니다.



파일을 확인하기 위해서는 file list 명령어를 입력합니다.

root@vSRX> show configuration | display set | save config_backup
Wrote 32 lines of output to 'config_backup'

root@vSRX> file list

/root/:
.cshrc@ -> /packages/mnt/os-runtime/root/.cshrc
.login@ -> /packages/mnt/os-runtime/root/.login
.profile@ -> /packages/mnt/os-runtime/root/.profile
config_backup

root@vSRX>



파일 내용 확인하기

file show 파일 이름


root@vSRX> file show config_backup
set version 21.3R1.9
set system root-authentication encrypted-password "$6$L1Uj2iTj$/c8wM7UteO/L/q5NWbwvvTiYhwADjApBAJ7LQCQaZDVQfgwStnuOH36if38V.CMAxpr3Ia2Yyul0TGgHTdSbg/"
set system services ssh
set system services web-management http interface fxp0.0
set system services web-management https system-generated-certificate
set system services web-management https interface fxp0.0
set system syslog file interactive-commands interactive-commands any
set system syslog file messages any any
set system syslog file messages authorization info
set system license autoupdate url https://ae1.juniper.net/junos/key_retrieval
set security screen ids-option untrust-screen icmp ping-death
set security screen ids-option untrust-screen ip source-route-option
set security screen ids-option untrust-screen ip tear-drop
set security screen ids-option untrust-screen tcp syn-flood alarm-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood attack-threshold 200
set security screen ids-option untrust-screen tcp syn-flood source-threshold 1024
set security screen ids-option untrust-screen tcp syn-flood destination-threshold 2048
set security screen ids-option untrust-screen tcp syn-flood queue-size 2000
set security screen ids-option untrust-screen tcp syn-flood timeout 20
set security screen ids-option untrust-screen tcp land
set security policies from-zone trust to-zone trust policy default-permit match source-address any
set security policies from-zone trust to-zone trust policy default-permit match destination-address any
set security policies from-zone trust to-zone trust policy default-permit match application any
set security policies from-zone trust to-zone trust policy default-permit then permit
set security policies from-zone trust to-zone untrust policy default-permit match source-address any
set security policies from-zone trust to-zone untrust policy default-permit match destination-address any
set security policies from-zone trust to-zone untrust policy default-permit match application any
set security policies from-zone trust to-zone untrust policy default-permit then permit
set security policies pre-id-default-policy then log session-close
set security zones security-zone trust tcp-rst
set security zones security-zone untrust screen untrust-screen
set interfaces fxp0 unit 0

root@vSRX>



last: 표시내용의 마지막 부분을 표시합니다.

ex) 로그에 마지막 10줄만 표시 - 즉 최신 로그 10개만 출력입니다.

root@vSRX> show log messages | last 10
Jun  9 13:02:53  vSRX srxpfe[20805]: pconn_client_create: RE address for IRI1 1000080 cid is 0
Jun  9 13:03:05  vSRX last message repeated 4 times
Jun  9 13:03:14  vSRX last message repeated 3 times
Jun  9 13:03:17  vSRX mgd[23313]: UI_CMDLINE_READ_LINE: User 'root', command 'show log messages '
Jun  9 13:03:17  vSRX srxpfe[20805]: pconn_client_create: RE address for IRI1 1000080 cid is 0
Jun  9 13:03:35  vSRX last message repeated 6 times
Jun  9 13:03:53  vSRX last message repeated 6 times
Jun  9 13:03:55  vSRX mgd[23313]: UI_CMDLINE_READ_LINE: User 'root', command 'show log messages | last 10 '

root@vSRX>



Pipe옵션은 중복에서도 사용 가능 합니다.

show log messages 출력

match VSRX 이 단어가 있는 messages만 출력

last 10 마지막으로부터 최신 10개 log만 출

root@vSRX> show log messages | match VSRX | last 10
Jun  9 13:03:56  vSRX srxpfe[20805]: pconn_client_create: RE address for IRI1 1000080 cid is 0
Jun  9 13:04:06  vSRX last message repeated 3 times
Jun  9 13:04:45  vSRX last message repeated 13 times
Jun  9 13:04:47  vSRX mgd[23313]: UI_CMDLINE_READ_LINE: User 'root', command 'show log messages | match VSRX '
Jun  9 13:04:48  vSRX srxpfe[20805]: pconn_client_create: RE address for IRI1 1000080 cid is 0
Jun  9 13:04:51  vSRX srxpfe[20805]: pconn_client_create: RE address for IRI1 1000080 cid is 0
Jun  9 13:04:53  vSRX mgd[23313]: UI_CMDLINE_READ_LINE: User 'root', command 'show log messages | match VSRX | last 10 '

root@vSRX>



?

입력하면 실행 가능한 명려어가 표시 됩니다.

root@vSRX> ?
Possible completions:
  clear                Clear PPM related statistics information
  configure            Manipulate software configuration information
  file                 Perform file operations
  help                 Provide help information
  load                 Load information from file
  monitor              Show real-time debugging information
  mtrace               Trace multicast path from source to receiver
  op                   Invoke an operation script
  ping                 Ping remote target
  probe                Probe interfaces on remote target
  quit                 Exit the management session
  request              Make system-level requests
  restart              Restart software process
  scp                  Copy files via ssh
  set                  Set CLI properties, date/time, craft interface message
  show                 Show system information
  ssh                  Start secure shell on another host
  start                Start shell
  telnet               Telnet to another host
  test                 Perform diagnostic debugging
  traceroute



지금까지 [2024][Juniper SRX #1] 기본 CLI 명령어 글을 읽어주셔서 감사합니다.





+ Recent posts
