[VMware ESXi][#10]- ESXi patch update

안녕하세요.

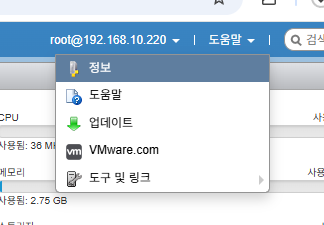

1. VMware ESXi를 접속해서 정보 버튼을 클릭합니다.

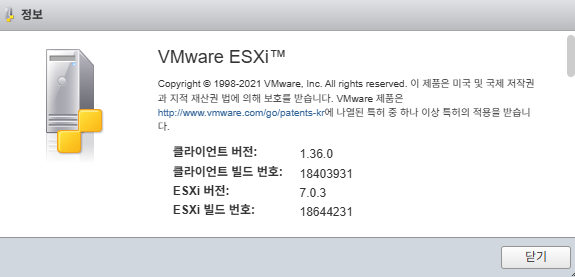

2. 아래처럼 정보를 확인합니다.

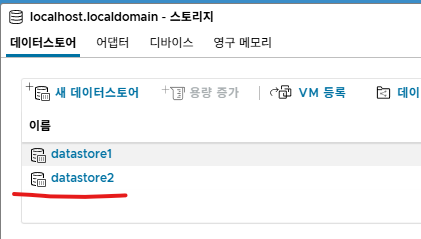

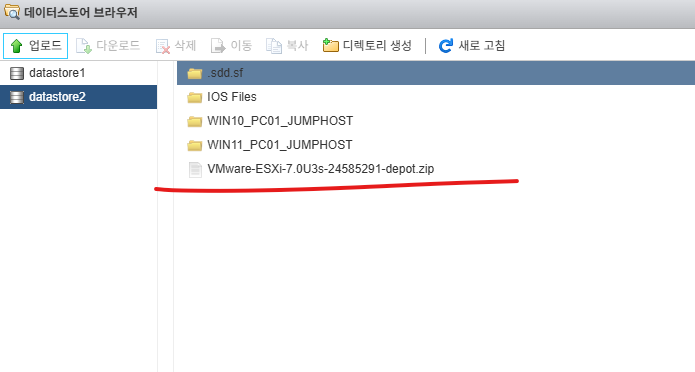

3. 7.0.3 최신 패치를 다운로드 후 datastore2에 업로드 합니다.



4. Putty 실행한 후에 VMware ESXi 접속 합니다.

그리고 VMware ESXi 업데이트 하기 위해서 유지보수 모드(Maintanency mode)로 접속합니다.

vim-cmd /hostsvc/maintenance_mode_enter



5. Maintanency Mode 접속 되었는지 확인하는 CLI 명령어

vim-cmd /hostsvc/hostsummary | grep inMaintenanceMode



6. cd 명령어를 통해서 datastore2에 접속하고 파일을 확인 합니다.

[root@localhost:~] cd /vmfs/volumes/datastore2 [root@localhost:/vmfs/volumes/681fcdfa-033bccf2-c4d3-a0369fb0cba8] ls -al -rw-r--r--    1 root     root     381297253 May 17 21:43 VMware-ESXi-7.0U3p-23307199-depot.zip -rw-r--r--    1 root     root     381858921 May 17 21:15 VMware-ESXi-7.0U3s-24585291-depot.zip [root@localhost:/vmfs/volumes/681fcdfa-033bccf2-c4d3-a0369fb0cba8]



7. Profile를 확인 합니다.

esxcli software sources profile list -d /vmfs/volumes/datastore2/VMware-ESXi-7.0U3s-24585291-depot.zip

[root@localhost:/vmfs/volumes/681fcdfa-033bccf2-c4d3-a0369fb0cba8] esxcli software sources profile list -d /vmfs/volumes/datastore2/VMware-ESXi-7.0U3s-24585291-depot.zip Name                           Vendor        Acceptance Level  Creation Time        Modification Time -----------------------------  ------------  ----------------  -------------------  ----------------- ESXi-7.0U3s-24585291-standard  VMware, Inc.  PartnerSupported  2025-03-04T00:00:00  2025-03-04T00:00:00 ESXi-7.0U3s-24585291-no-tools  VMware, Inc.  PartnerSupported  2025-03-04T00:00:00  2025-02-21T03:24:14 [root@localhost:/vmfs/volumes/681fcdfa-033bccf2-c4d3-a0369fb0cba8]



8. 업데이트를 클릭 합니다.



esxcli software vib update -d "/vmfs/volumes/datastore2/VMware-ESXi-7.0U3s-24585291-depot.zip"

[root@localhost:~] esxcli software vib update -d "/vmfs/volumes/datastore2/VMware-ESXi-7.0U3s-24585291-depot.zip" Installation Result    Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.    Reboot Required: true    VIBs Installed: VMW_bootbank_atlantic_1.0.3.0-8vmw.703.0.20.19193900, VMW_bootbank_bnxtnet_216.0.50.0-44vmw.703.0.50.20036589, VMW_bootbank_bnxtroce_216.0.58.0-23vmw.703.0.50.20036589, VMW_bootbank_brcmfcoe_12.0.1500.2-3vmw.703.0.20.19193900, VMW_bootbank_elxiscsi_12.0.1200.0-9vmw.703.0.20.19193900, VMW_bootbank_elxnet_12.0.1250.0-5vmw.703.0.20.19193900, VMW_bootbank_i40en_1.11.1.32-1vmw.703.0.125.23794027, VMW_bootbank_iavmd_2.7.0.1157-3vmw.703.0.105.22348816, VMW_bootbank_icen_1.4.1.20-1vmw.703.0.50.20036589, VMW_bootbank_igbn_1.4.11.2-1vmw.703.0.20.19193900, VMW_bootbank_ionic-en_16.0.0-16vmw.703.0.20.19193900, VMW_bootbank_irdman_1.3.1.22-1vmw.703.0.50.20036589, VMW_bootbank_iser_1.1.0.1-1vmw.703.0.50.20036589, VMW_bootbank_ixgben_1.7.1.35-1vmw.703.0.20.19193900, VMW_bootbank_lpfc_14.0.169.26-5vmw.703.0.50.20036589, VMW_bootbank_lpnic_11.4.62.0-1vmw.703.0.20.19193900, VMW_bootbank_lsi-mr3_7.718.02.00-1vmw.703.0.20.19193900, VMW_bootbank_lsi-msgpt2_20.00.06.00-4vmw.703.0.20.19193900, VMW_bootbank_lsi-msgpt35_19.00.02.00-1vmw.703.0.20.19193900, VMW_bootbank_lsi-msgpt3_17.00.12.00-2vmw.703.0.105.22348816, VMW_bootbank_mtip32xx-native_3.9.8-1vmw.703.0.20.19193900, VMW_bootbank_ne1000_0.9.0-1vmw.703.0.50.20036589, VMW_bootbank_nenic_1.0.33.0-1vmw.703.0.20.19193900, VMW_bootbank_nfnic_4.0.0.70-1vmw.703.0.20.19193900, VMW_bootbank_nhpsa_70.0051.0.100-4vmw.703.0.20.19193900, VMW_bootbank_nmlx4-core_3.19.16.8-2vmw.703.0.20.19193900, VMW_bootbank_nmlx4-en_3.19.16.8-2vmw.703.0.20.19193900, VMW_bootbank_nmlx4-rdma_3.19.16.8-2vmw.703.0.20.19193900, VMW_bootbank_nmlx5-core_4.19.16.11-1vmw.703.0.20.19193900, VMW_bootbank_nmlx5-rdma_4.19.16.11-1vmw.703.0.20.19193900, VMW_bootbank_ntg3_4.1.9.0-5vmw.703.0.90.21686933, VMW_bootbank_nvme-pcie_1.2.3.16-3vmw.703.0.105.22348816, VMW_bootbank_nvmerdma_1.0.3.5-1vmw.703.0.20.19193900, VMW_bootbank_nvmetcp_1.0.0.3-1vmw.703.0.125.23794027, VMW_bootbank_nvmxnet3-ens_2.0.0.22-1vmw.703.0.20.19193900, VMW_bootbank_nvmxnet3_2.0.0.30-1vmw.703.0.20.19193900, VMW_bootbank_pvscsi_0.1-4vmw.703.0.20.19193900, VMW_bootbank_qcnic_1.0.15.0-14vmw.703.0.20.19193900, VMW_bootbank_qedentv_3.40.5.53-22vmw.703.0.20.19193900, VMW_bootbank_qedrntv_3.40.5.53-18vmw.703.0.20.19193900, VMW_bootbank_qfle3_1.0.67.0-22vmw.703.0.20.19193900, VMW_bootbank_qfle3f_1.0.51.0-22vmw.703.0.20.19193900, VMW_bootbank_qfle3i_1.0.15.0-15vmw.703.0.20.19193900, VMW_bootbank_qflge_1.1.0.11-1vmw.703.0.20.19193900, VMW_bootbank_rste_2.0.2.0088-7vmw.703.0.20.19193900, VMW_bootbank_sfvmk_2.4.0.2010-6vmw.703.0.20.19193900, VMW_bootbank_smartpqi_70.4149.0.5000-1vmw.703.0.20.19193900, VMW_bootbank_vmkata_0.1-1vmw.703.0.20.19193900, VMW_bootbank_vmkfcoe_1.0.0.2-1vmw.703.0.20.19193900, VMW_bootbank_vmkusb_0.1-8vmw.703.0.85.21424296, VMW_bootbank_vmw-ahci_2.0.11-3vmw.703.0.125.23794027, VMware_bootbank_bmcal_7.0.3-0.135.24585291, VMware_bootbank_cpu-microcode_7.0.3-0.135.24585291, VMware_bootbank_crx_7.0.3-0.135.24585291, VMware_bootbank_elx-esx-libelxima.so_12.0.1200.0-4vmw.703.0.20.19193900, VMware_bootbank_esx-base_7.0.3-0.135.24585291, VMware_bootbank_esx-dvfilter-generic-fastpath_7.0.3-0.135.24585291, VMware_bootbank_esx-ui_2.13.2-22721163, VMware_bootbank_esx-update_7.0.3-0.135.24585291, VMware_bootbank_esx-xserver_7.0.3-0.135.24585291, VMware_bootbank_esxio-combiner_7.0.3-0.135.24585291, VMware_bootbank_gc_7.0.3-0.135.24585291, VMware_bootbank_loadesx_7.0.3-0.135.24585291, VMware_bootbank_lsuv2-hpv2-hpsa-plugin_1.0.0-3vmw.703.0.20.19193900, VMware_bootbank_lsuv2-intelv2-nvme-vmd-plugin_2.7.2173-1vmw.703.0.20.19193900, VMware_bootbank_lsuv2-lsiv2-drivers-plugin_1.0.0-12vmw.703.0.50.20036589, VMware_bootbank_lsuv2-nvme-pcie-plugin_1.0.0-1vmw.703.0.20.19193900, VMware_bootbank_lsuv2-oem-dell-plugin_1.0.0-1vmw.703.0.20.19193900, VMware_bootbank_lsuv2-oem-hp-plugin_1.0.0-1vmw.703.0.20.19193900, VMware_bootbank_lsuv2-oem-lenovo-plugin_1.0.0-1vmw.703.0.20.19193900, VMware_bootbank_lsuv2-smartpqiv2-plugin_1.0.0-9vmw.703.0.105.22348816, VMware_bootbank_native-misc-drivers_7.0.3-0.135.24585291, VMware_bootbank_qlnativefc_4.1.14.0-26vmw.703.0.20.19193900, VMware_bootbank_trx_7.0.3-0.135.24585291, VMware_bootbank_vdfs_7.0.3-0.135.24585291, VMware_bootbank_vmware-esx-esxcli-nvme-plugin_1.2.0.44-1vmw.703.0.20.19193900, VMware_bootbank_vsan_7.0.3-0.135.24585291, VMware_bootbank_vsanhealth_7.0.3-0.135.24585291, VMware_locker_tools-light_12.3.5.22544099-23794019    VIBs Removed: VMW_bootbank_atlantic_1.0.3.0-8vmw.703.0.0.18644231, VMW_bootbank_bnxtnet_216.0.50.0-41vmw.703.0.0.18644231, VMW_bootbank_bnxtroce_216.0.58.0-23vmw.703.0.0.18644231, VMW_bootbank_brcmfcoe_12.0.1500.2-3vmw.703.0.0.18644231, VMW_bootbank_elxiscsi_12.0.1200.0-9vmw.703.0.0.18644231, VMW_bootbank_elxnet_12.0.1250.0-5vmw.703.0.0.18644231, VMW_bootbank_i40en_1.11.1.31-1vmw.703.0.0.18644231, VMW_bootbank_iavmd_2.7.0.1157-2vmw.703.0.0.18644231, VMW_bootbank_icen_1.4.1.7-1vmw.703.0.0.18644231, VMW_bootbank_igbn_1.4.11.2-1vmw.703.0.0.18644231, VMW_bootbank_ionic-en_16.0.0-16vmw.703.0.0.18644231, VMW_bootbank_irdman_1.3.1.20-1vmw.703.0.0.18644231, VMW_bootbank_iser_1.1.0.1-1vmw.703.0.0.18644231, VMW_bootbank_ixgben_1.7.1.35-1vmw.703.0.0.18644231, VMW_bootbank_lpfc_14.0.169.23-5vmw.703.0.0.18644231, VMW_bootbank_lpnic_11.4.62.0-1vmw.703.0.0.18644231, VMW_bootbank_lsi-mr3_7.718.02.00-1vmw.703.0.0.18644231, VMW_bootbank_lsi-msgpt2_20.00.06.00-4vmw.703.0.0.18644231, VMW_bootbank_lsi-msgpt35_19.00.02.00-1vmw.703.0.0.18644231, VMW_bootbank_lsi-msgpt3_17.00.12.00-1vmw.703.0.0.18644231, VMW_bootbank_mtip32xx-native_3.9.8-1vmw.703.0.0.18644231, VMW_bootbank_ne1000_0.8.4-11vmw.703.0.0.18644231, VMW_bootbank_nenic_1.0.33.0-1vmw.703.0.0.18644231, VMW_bootbank_nfnic_4.0.0.70-1vmw.703.0.0.18644231, VMW_bootbank_nhpsa_70.0051.0.100-4vmw.703.0.0.18644231, VMW_bootbank_nmlx4-core_3.19.16.8-2vmw.703.0.0.18644231, VMW_bootbank_nmlx4-en_3.19.16.8-2vmw.703.0.0.18644231, VMW_bootbank_nmlx4-rdma_3.19.16.8-2vmw.703.0.0.18644231, VMW_bootbank_nmlx5-core_4.19.16.11-1vmw.703.0.0.18644231, VMW_bootbank_nmlx5-rdma_4.19.16.11-1vmw.703.0.0.18644231, VMW_bootbank_ntg3_4.1.7.0-0vmw.703.0.0.18644231, VMW_bootbank_nvme-pcie_1.2.3.16-1vmw.703.0.0.18644231, VMW_bootbank_nvmerdma_1.0.3.5-1vmw.703.0.0.18644231, VMW_bootbank_nvmetcp_1.0.0.0-1vmw.703.0.0.18644231, VMW_bootbank_nvmxnet3-ens_2.0.0.22-1vmw.703.0.0.18644231, VMW_bootbank_nvmxnet3_2.0.0.30-1vmw.703.0.0.18644231, VMW_bootbank_pvscsi_0.1-4vmw.703.0.0.18644231, VMW_bootbank_qcnic_1.0.15.0-14vmw.703.0.0.18644231, VMW_bootbank_qedentv_3.40.5.53-22vmw.703.0.0.18644231, VMW_bootbank_qedrntv_3.40.5.53-18vmw.703.0.0.18644231, VMW_bootbank_qfle3_1.0.67.0-22vmw.703.0.0.18644231, VMW_bootbank_qfle3f_1.0.51.0-22vmw.703.0.0.18644231, VMW_bootbank_qfle3i_1.0.15.0-15vmw.703.0.0.18644231, VMW_bootbank_qflge_1.1.0.11-1vmw.703.0.0.18644231, VMW_bootbank_rste_2.0.2.0088-7vmw.703.0.0.18644231, VMW_bootbank_sfvmk_2.4.0.2010-6vmw.703.0.0.18644231, VMW_bootbank_smartpqi_70.4149.0.5000-1vmw.703.0.0.18644231, VMW_bootbank_vmkata_0.1-1vmw.703.0.0.18644231, VMW_bootbank_vmkfcoe_1.0.0.2-1vmw.703.0.0.18644231, VMW_bootbank_vmkusb_0.1-6vmw.703.0.0.18644231, VMW_bootbank_vmw-ahci_2.0.11-1vmw.703.0.0.18644231, VMware_bootbank_bmcal_7.0.3-0.0.18644231, VMware_bootbank_cpu-microcode_7.0.3-0.0.18644231, VMware_bootbank_crx_7.0.3-0.0.18644231, VMware_bootbank_elx-esx-libelxima.so_12.0.1200.0-4vmw.703.0.0.18644231, VMware_bootbank_esx-base_7.0.3-0.0.18644231, VMware_bootbank_esx-dvfilter-generic-fastpath_7.0.3-0.0.18644231, VMware_bootbank_esx-ui_1.36.0-18403931, VMware_bootbank_esx-update_7.0.3-0.0.18644231, VMware_bootbank_esx-xserver_7.0.3-0.0.18644231, VMware_bootbank_esxio-combiner_7.0.3-0.0.18644231, VMware_bootbank_gc_7.0.3-0.0.18644231, VMware_bootbank_loadesx_7.0.3-0.0.18644231, VMware_bootbank_lsuv2-hpv2-hpsa-plugin_1.0.0-3vmw.703.0.0.18644231, VMware_bootbank_lsuv2-intelv2-nvme-vmd-plugin_2.7.2173-1vmw.703.0.0.18644231, VMware_bootbank_lsuv2-lsiv2-drivers-plugin_1.0.0-9vmw.703.0.0.18644231, VMware_bootbank_lsuv2-nvme-pcie-plugin_1.0.0-1vmw.703.0.0.18644231, VMware_bootbank_lsuv2-oem-dell-plugin_1.0.0-1vmw.703.0.0.18644231, VMware_bootbank_lsuv2-oem-hp-plugin_1.0.0-1vmw.703.0.0.18644231, VMware_bootbank_lsuv2-oem-lenovo-plugin_1.0.0-1vmw.703.0.0.18644231, VMware_bootbank_lsuv2-smartpqiv2-plugin_1.0.0-8vmw.703.0.0.18644231, VMware_bootbank_native-misc-drivers_7.0.3-0.0.18644231, VMware_bootbank_qlnativefc_4.1.14.0-26vmw.703.0.0.18644231, VMware_bootbank_trx_7.0.3-0.0.18644231, VMware_bootbank_vdfs_7.0.3-0.0.18644231, VMware_bootbank_vmware-esx-esxcli-nvme-plugin_1.2.0.44-1vmw.703.0.0.18644231, VMware_bootbank_vsan_7.0.3-0.0.18644231, VMware_bootbank_vsanhealth_7.0.3-0.0.18644231, VMware_locker_tools-light_11.3.0.18090558-18644231    VIBs Skipped:  [root@localhost:~]



9. 재부팅을 합니다

reboot

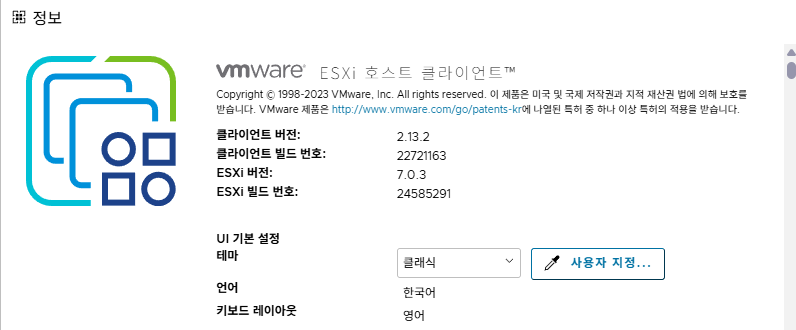

10. VMware ESXi GUI 접속해서 버전을 확인 합니다.



Referance 문서

https://knowledge.broadcom.com/external/article/343840/patching-esxi-host-using-command-line.html

Patching ESXi host using Command Line



esxcli 명령어

• Options:

--profile | -p – Specifies the image profile name for the host update. (Required)

--depot | -d – Specifies the full remote URL of the depot index.xml or the offline bundle (.zip) file location. (Required)

--dry-run – Performs a simulation of the installation, reporting actions without making changes.

--force | -f – Bypasses dependency and security checks. Not recommended unless instructed by VMware Support; triggers a warning in the vSphere Client.

--maintenance-mode – Simulates maintenance mode for installations that require it but does not affect reboot-required remediations.

--allow-downgrades – Installs VIBs that update, downgrade, or are new to the host. Without this option, only updates and new VIBs are installed.

--no-live-install – Forces installation to /altbootbank even if live installation is possible; skipped for PXE-booted hosts.

--no-sig-check – Disables security verification, including signing, posing a high security risk and triggering a SECURITY ALERT in vSphere Client.

--proxy – Defines the proxy server for HTTP, FTP, and HTTPS connections in the format proxy-url:port.

--help – For options help.



지금까지 [VMware ESXi][#10]- ESXi patch update 글을 읽어주셔서 감사합니다.
