[2024][Juniper SRX #8] Zone configuration

안녕하세요.



오늘은 [2024][Juniper SRX #8] Zone에 대해서 알아보겠습니다.



Juniper SRX는 Zone base Firewall입니다. Interface가 독자적으로 동작하지 못하고 interface는 하나에 Zone에 포함되어야 하고 방화벽 정책은 Zone를 기반으로 허용 또는 차단이 가능합니다.



이 부분은 추후에 방화벽 정책을 테스트할 때 좀 더 자세히 진행하겠습니다.

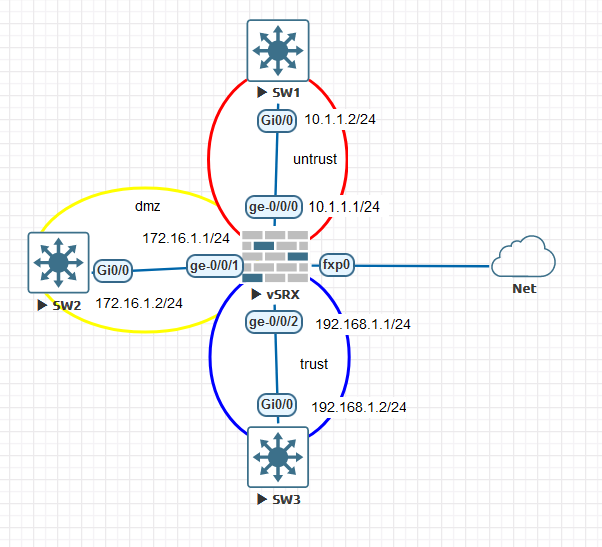

테스트 토폴로지는 아래와 같습니다.

1.vIOS Switch

2.vSRX를 사용 하였습니다.



IP정보는 아래와 같습니다

SRX:

ge-0/0/0 - 10.1.1.1/24 untrust zone

ge-0/0/1 - 172.16.1.1/24 dmz zone

ge-0/0/2 - 192.168.1.1/24 trust zone

fxp0 - dhcp - management zone

SW1

gi0/0 - 10.1.1.2/24

SW2

gi0/0 - 172.16.1.2/24

SW3

gi0/0 - 192.168.1.2/24

Juniper SRX Zone Types

1. fuctional zone (management Zone) - dedicate an interface just for the purpose of management

    일반적으로 fxp0이 management 인터페이스인데, data interface를 MGMT로 사용할 때 이 명령어를 사용하여

    MGMT역활한 할 수 있게 설정할 수 있습니다.

2. Security zone - to control traffic between different security zone

3. junos-host - control traffic between security zone and juniper device itself

4. null - discard traffic



현재 생성된 zone 리스트를 출력 하는 명령어

show security zones terse

root> show security zones terse   Zone                        Type junos-host                  Security



아래 interface를 보면 fxp0이 SRX management interface입니다.

root> show interfaces terse  Interface               Admin Link Proto    Local                 Remote ge-0/0/0                up    up gr-0/0/0                up    up ip-0/0/0                up    up lsq-0/0/0               up    up lt-0/0/0                up    up mt-0/0/0                up    up sp-0/0/0                up    up sp-0/0/0.0              up    up   inet                                        inet6    sp-0/0/0.16383          up    up   inet     ge-0/0/1                up    up ge-0/0/2                up    up dsc                     up    up fti0                    up    up fxp0                    up    up gre                     up    up ipip                    up    up irb                     up    up lo0                     up    up lo0.16384               up    up   inet     127.0.0.1           --> 0/0 lo0.16385               up    up   inet     10.0.0.1            --> 0/0                                             10.0.0.16           --> 0/0                                             128.0.0.1           --> 0/0                                             128.0.0.4           --> 0/0                                             128.0.1.16          --> 0/0 lo0.32768               up    up   lsi                     up    up mtun                    up    up pimd                    up    up pime                    up    up pp0                     up    up ppd0                    up    up ppe0                    up    up st0                     up    up tap                     up    up vlan                    up    down root>



fxp0 인터페이스에 IP주소를 DHCP 통해서 할당 받겠습니다.

간단하게 제 테스트랩을 설명하겠습니다



1. 제 노트북에서 Global Protect(VPN agent)로 팔로알토에 접속합니다.

2. EVE-NG는 VMware ESXi안에 설치되어 있스비다.

3. 팔로알토가 DHCP기능을 수행합니다.

그래서 fxp0 인터페이스는 자동으로 팔로알토로부터 IP를 받을 수 있습니다.



아니면 수동으로 설정하셔도 됩니다.

root# set interfaces fxp0 unit 0 family inet dhcp       [edit] root# commit  commit complete



그리고 Interface에 IP주소를 확인합니다.

root> show interfaces terse  Interface               Admin Link Proto    Local                 Remote ge-0/0/0                up    up gr-0/0/0                up    up ip-0/0/0                up    up lsq-0/0/0               up    up lt-0/0/0                up    up mt-0/0/0                up    up sp-0/0/0                up    up sp-0/0/0.0              up    up   inet                                        inet6    sp-0/0/0.16383          up    up   inet     ge-0/0/1                up    up ge-0/0/2                up    up dsc                     up    up fti0                    up    up fxp0                    up    up fxp0.0                  up    up   inet     192.168.10.104/24 gre                     up    up ipip                    up    up irb                     up    up lo0                     up    up lo0.16384               up    up   inet     127.0.0.1           --> 0/0 lo0.16385               up    up   inet     10.0.0.1            --> 0/0



제 PC에서 SRX fxp0 192.168.10.104 ping 테스트입니다.

핑이 성공합니다.

C:\Users\admin>ping 192.168.10.104 Pinging 192.168.10.104 with 32 bytes of data: Reply from 192.168.10.104: bytes=32 time=4ms TTL=63 Reply from 192.168.10.104: bytes=32 time=5ms TTL=63 Reply from 192.168.10.104: bytes=32 time=7ms TTL=63 Reply from 192.168.10.104: bytes=32 time=14ms TTL=63 Ping statistics for 192.168.10.104:     Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds:     Minimum = 4ms, Maximum = 14ms, Average = 7ms C:\Users\admin>



fxp0를 수동으로 IP주소를 설정하기.

set interfaces fxp0 unit 0 family inet address 192.168.10.104/24 set routing-options static route 0.0.0.0/0 next-hop 192.168.10.253



PC에서 PIng테스트

C:\Users\admin>ping 192.168.10.104 Pinging 192.168.10.104 with 32 bytes of data: Reply from 192.168.10.104: bytes=32 time=5ms TTL=63 Reply from 192.168.10.104: bytes=32 time=6ms TTL=63 Reply from 192.168.10.104: bytes=32 time=6ms TTL=63 Reply from 192.168.10.104: bytes=32 time=13ms TTL=63 Ping statistics for 192.168.10.104:     Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds:     Minimum = 5ms, Maximum = 13ms, Average = 7ms



어떤 Interface가 어떤 Zone에 할당되었는지 확인하는 명령어입니다.

show interfaces zone terse

root> show interfaces zone terse  Interface               Admin Link Proto    Local                 Remote                Zone ge-0/0/0.0              up    up   inet     10.1.1.1/24                                                                                              Null sp-0/0/0.0              up    up   inet                                        inet6                                                Null sp-0/0/0.16383          up    up   inet                                                 Null fxp0.0                  up    up   inet     192.168.10.104/24                                                                                         Null lo0.16384               up    up   inet     127.0.0.1           --> 0/0                                                                                                           Null lo0.16385               up    up   inet     10.0.0.1            --> 0/0                                                               10.0.0.16           --> 0/0                                                               128.0.0.1           --> 0/0                                                               128.0.0.4           --> 0/0                                                               128.0.1.16          --> 0/0                                                                                                           Null lo0.32768               up    up                                                        Null



fxp0는 기본적으로 null zone에 할당되어 있습니다.



일반적은 data용 interface를 MGMT interface로 사용할 때 사용 됩니다.

테스트를 위해서 ge-0/0/0를 MGMT interface로 만들어 보겠습니다.

root# set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24  [edit] root# set security zones functional-zone management interfaces ge-0/0/0  [edit] root# commit  commit complete root> show security zones terse  Zone                        Type management                  Functional junos-host                  Security root>



Zone를 확인하고 Interface 할당된 Zone도 확인합니다.

root> show security zones terse  Zone                        Type management                  Functional junos-host                  Security root>  root> show interfaces zone terse     Interface               Admin Link Proto    Local                 Remote                Zone ge-0/0/0.0              up    up   inet     10.1.1.1/24                                                                                              Management sp-0/0/0.0              up    up   inet                                        inet6                                                Null sp-0/0/0.16383          up    up   inet                                                 Null fxp0.0                  up    up   inet     192.168.10.104/24                                                                                         Null lo0.16384               up    up   inet     127.0.0.1           --> 0/0                                                                                                           Null lo0.16385               up    up   inet     10.0.0.1            --> 0/0                                                               10.0.0.16           --> 0/0                                                               128.0.0.1           --> 0/0                                                               128.0.0.4           --> 0/0                                                               128.0.1.16          --> 0/0                                                                                                           Null lo0.32768               up    up                                                        Null root>



테스트를 위해서 기존에 Ge-0/0/0 zone를 삭제합니다.

delete security zones functional-zone management interfaces ge-0/0/0.0 commit root> show interfaces zone terse  Interface               Admin Link Proto    Local                 Remote                Zone ge-0/0/0.0              up    up   inet     10.1.1.1/24                                                                                              Null sp-0/0/0.0              up    up   inet                                        inet6                                                Null sp-0/0/0.16383          up    up   inet                                                 Null fxp0.0                  up    up   inet     192.168.10.104/24                                                                                         Null lo0.16384               up    up   inet     127.0.0.1           --> 0/0                                                                                                           Null lo0.16385               up    up   inet     10.0.0.1            --> 0/0                                                               10.0.0.16           --> 0/0                                                               128.0.0.1           --> 0/0                                                               128.0.0.4           --> 0/0                                                               128.0.1.16          --> 0/0                                                                                                           Null lo0.32768               up    up                                                        Null root>



2



2. Security zone - to control traffic between different security zone



테스트를 위해서 IP를 설정합니다.

set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24 set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.1/24 set interfaces ge-0/0/2 unit 0 family inet address 192.168.1.1/24 commit



인터페이스를 확인합니다.

root> show interfaces terse  Interface               Admin Link Proto    Local                 Remote ge-0/0/0                up    up ge-0/0/0.0              up    up   inet     10.1.1.1/24      gr-0/0/0                up    up ip-0/0/0                up    up lsq-0/0/0               up    up lt-0/0/0                up    up mt-0/0/0                up    up sp-0/0/0                up    up sp-0/0/0.0              up    up   inet                                        inet6    sp-0/0/0.16383          up    up   inet     ge-0/0/1                up    up ge-0/0/1.0              up    up   inet     172.16.1.1/24    ge-0/0/2                up    up ge-0/0/2.0              up    up   inet     192.168.1.1/24   dsc                     up    up fti0                    up    up fxp0                    up    up fxp0.0                  up    up   inet     192.168.10.104/24 gre                     up    up ipip                    up    up irb                     up    up lo0                     up    up         lo0.16384               up    up   inet     127.0.0.1           --> 0/0 lo0.16385               up    up   inet     10.0.0.1            --> 0/0                                             10.0.0.16           --> 0/0                                             128.0.0.1           --> 0/0                                             128.0.0.4           --> 0/0                                             128.0.1.16          --> 0/0 lo0.32768               up    up   lsi                     up    up mtun                    up    up pimd                    up    up pime                    up    up pp0                     up    up ppd0                    up    up ppe0                    up    up st0                     up    up tap                     up    up vlan                    up    down root>



Zone를 생성합니다.

set security zones security-zone trust set security zones security-zone untrust set security zones security-zone dmz commit



Zone를 생성을 확인합니다.

root> show security zones terse  Zone                        Type management                  Functional dmz                         Security trust                       Security untrust                     Security junos-host                  Security root>



Interface를 Zone에 할당합니다.

set security zones security-zone trust interfaces ge-0/0/2.0 set security zones security-zone untrust interfaces ge-0/0/0.0 set security zones security-zone dmz interfaces ge-0/0/1.0 commit



Zone에 할당된 interface를 확인합니다.

root> show interfaces zone terse | match ge-    ge-0/0/0.0              up    up   inet     10.1.1.1/24      ge-0/0/1.0              up    up   inet     172.16.1.1/24    ge-0/0/2.0              up    up   inet     192.168.1.1/24   root>



Ping 테스트를 위해서 각 Zone에 PING를 허용합니다.

set security zones security-zone trust host-inbound-traffic system-services ping set security zones security-zone untrust host-inbound-traffic system-services ping set security zones security-zone dmz host-inbound-traffic system-services ping



SW1 gi0/0 IP를 설정하고 SRX ge-0/0/0 10.1.1.1로 PIng를 시도합니다.

Switch(config)#int g0/0 Switch(config-if)#no sw Switch(config-if)#ip add 10.1.1.2 255.255.255.0 Switch(config-if)#no sh Switch(config-if)#end Switch# ping 10.1.1.1 Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/146/579 ms Switch#



SW2 gi0/0 IP를 설정하고 SRX ge-0/0/0 172.16.1.1로 PIng를 시도합니다.

Switch(config)#int g0/0 Switch(config-if)#no sw  Switch(config-if)#ip add 172.16.1.2 255.255.255.0 Switch(config-if)#no sh Switch(config-if)#end Switch# Switch#ping 172.16.1.1 Sending 5, 100-byte ICMP Echos to 172.16.1.1, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 2/3/4 ms Switch#



SW3 gi0/0 IP를 설정하고 SRX ge-0/0/0 192.168.1.1로 PIng를 시도합니다.

Switch#conf t Switch(config)#int g0/0 Switch(config-if)#no sw Switch(config-if)#ip add 192.168.1.2 255.255.255.0 Switch(config-if)#no sh Switch(config-if)#end Switch#ping 192.168.1.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds: *Jun 20 08:56:02.421: %SYS-5-CONFIG_I: Configured from console by console .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/2 ms Switch#



서로 다른 Zone끼리 방화벽 정책이 없기 때문에 서로 간에 통신은 불가능합니다.

지금까지 [2024][Juniper SRX #8] Zone configuration 글을 읽어주셔서 감사합니다.

다음 강좌를 address-book에 대해서 알아보도록 하겠습니다.
