안녕하세요.
오늘은 C8200L Router IOS XE를 업그레이드를 해보겠습니다.
1. 현재 장비에서 show version를 통해서 version를 확인 합니다.
| Router#show version Cisco IOS XE Software, Version 17.06.06a Cisco IOS Software [Bengaluru], c8000be Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 17.6.6a, RELEASE SOFTWARE (fc3) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2023 by Cisco Systems, Inc. Compiled Fri 20-Oct-23 18:26 by mcpre |

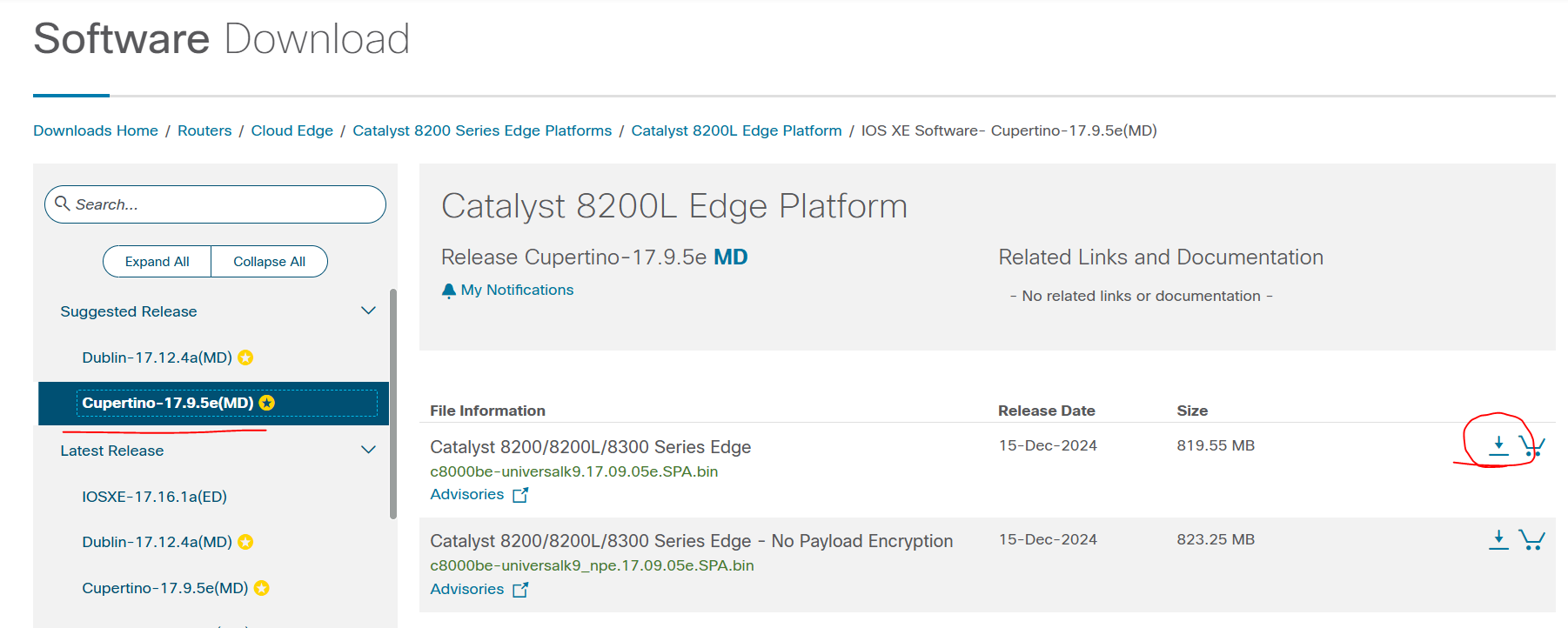

2. cisco 홈페이지에서 현재 시점에서 8200 router ios xe 추천 버전을 확인 합니다.
3. 파일을 다운로드 받고 파일을 USB에 복사합니다.

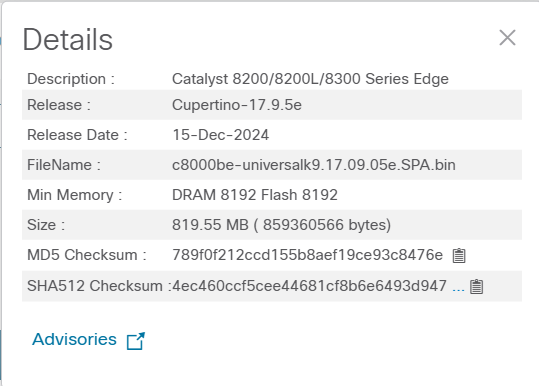

4. MD5 Checksum를 확인 합니다. 추후에 파일을 라우터에 복사하고 MD5 Checksum를 이용해서 파일이 잘 복사 되었는지 확인합니다. 만약에 파일이 깨진 상태에서 Upgrdae 업그레이드 하면 Upgrade가 Failed하고 Rommon mode로 빠질수 있습니다. 꼭 업그레이드 또는 다운그레이드 전에 파일 복사 후 MD5 체크섬을 확인 합니다.
C8200 라우터 Firmware Install 방식은 2가지가 있습니다.
1. ios xe file를 파일로 복사하고 boot config를 통해서 부팅 시키는 방법
2. install mode로 펌웨어를 설치하는 방법
현재 라우터 install mode인지 레거시 모드인지 확인하는 방법
아래처럼 표시 되면 install mode입니다.
| Router#show install summary [ R0 ] Installed Package(s) Information: State (St): I - Inactive, U - Activated & Uncommitted, C - Activated & Committed, D - Deactivated & Uncommitted -------------------------------------------------------------------------------- Type St Filename/Version -------------------------------------------------------------------------------- IMG C 17.06.06a.0.6 -------------------------------------------------------------------------------- Auto abort timer: inactive -------------------------------------------------------------------------------- Router# |
또는 Bin 파일이 없고, Package 파일만 보이면 install mode입니다.
| Router#dir flash: Directory of bootflash:/ 429089 drwx 57344 Feb 10 2025 05:32:00 +00:00 tracelogs 267169 drwx 4096 Feb 10 2025 05:19:36 +00:00 pnp-tech 11 -rw- 248 Feb 10 2025 05:19:29 +00:00 .iox_dir_list 412897 drwx 4096 Feb 10 2025 05:19:23 +00:00 license_evlog 24295 -rw- 30 Feb 10 2025 05:18:46 +00:00 throughput_monitor_params 24292 -rw- 134899 Feb 10 2025 05:18:40 +00:00 memleak.tcl 24290 -rw- 1092 Feb 10 2025 05:18:09 +00:00 mode_event_log 89057 drwx 4096 Feb 10 2025 05:17:48 +00:00 .installer 12 drwx 4096 Feb 10 2025 04:29:43 +00:00 lost+found 226689 drwx 4096 Aug 26 2024 16:49:41 +00:00 .prst_sync 275265 drwx 4096 Aug 26 2024 16:42:04 +00:00 .dbpersist 437185 drwx 4096 Aug 26 2024 16:33:30 +00:00 sysboot 420993 drwx 4096 Aug 26 2024 16:31:49 +00:00 .rollback_timer 291458 -rw- 9338 Aug 26 2024 16:28:08 +00:00 packages.conf 291478 -rw- 43301928 Aug 26 2024 16:28:08 +00:00 c8000be-rpboot.17.06.06a.SPA.pkg 291477 -rw- 623141956 Aug 26 2024 16:27:18 +00:00 c8000be-mono-universalk9.17.06.06a.SPA.pkg 291476 -rw- 156728 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_nim_adpt.17.06.06a.SPA.pkg 291475 -rw- 2094136 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_dsp_sp2700.17.06.06a.SPA.pkg 291474 -rw- 14259252 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_async.17.06.06a.SPA.pkg 291473 -rw- 11093044 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_1t3e3.17.06.06a.SPA.pkg 291472 -rw- 2475056 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_10g.17.06.06a.SPA.pkg 291471 -rw- 10253360 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_prince.17.06.06a.SPA.pkg 291470 -rw- 5571636 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_nim_xdsl.17.06.06a.SPA.pkg 291469 -rw- 5334068 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_ssd.17.06.06a.SPA.pkg 291468 -rw- 11523124 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_shdsl.17.06.06a.SPA.pkg 291467 -rw- 2966576 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_ge.17.06.06a.SPA.pkg 291466 -rw- 17646644 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_cwan.17.06.06a.SPA.pkg 291465 -rw- 4793400 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_bri_st_fw.17.06.06a.SPA.pkg 291464 -rw- 12870708 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_async.17.06.06a.SPA.pkg 291463 -rw- 11310132 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_ngwic_t1e1.17.06.06a.SPA.pkg 291462 -rw- 18342964 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_tilegx.17.06.06a.SPA.pkg 291461 -rw- 1963060 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_sp2700.17.06.06a.SPA.pkg 291460 -rw- 6681656 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_analogbri.17.06.06a.SPA.pkg 291459 -rw- 54324 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dreamliner.17.06.06a.SPA.pkg 186209 drwx 4096 Aug 26 2024 16:20:23 +00:00 iox_host_data_share 364321 drwx 4096 Aug 26 2024 16:20:17 +00:00 core 210497 drwx 4096 Aug 26 2024 16:20:02 +00:00 guest-share 170017 drwx 4096 Aug 26 2024 16:19:55 +00:00 onep 129537 drwx 4096 Aug 26 2024 16:19:54 +00:00 pnp-info 121441 drwx 4096 Aug 26 2024 16:19:23 +00:00 virtual-instance 24294 -rw- 1923 Aug 26 2024 16:19:18 +00:00 trustidrootx3_ca_092024.ca 24293 -rw- 20109 Aug 26 2024 16:19:18 +00:00 ios_core.p7b 340033 drwx 4096 Aug 26 2024 16:19:03 +00:00 ss_disc 24291 -rw- 5242880 Aug 26 2024 16:19:03 +00:00 ssd 307649 drwx 4096 Aug 26 2024 16:18:49 +00:00 .ssh 7361155072 bytes total (6161752064 bytes free) Router# |
그럼 Firmware Upgrade를 합니다.

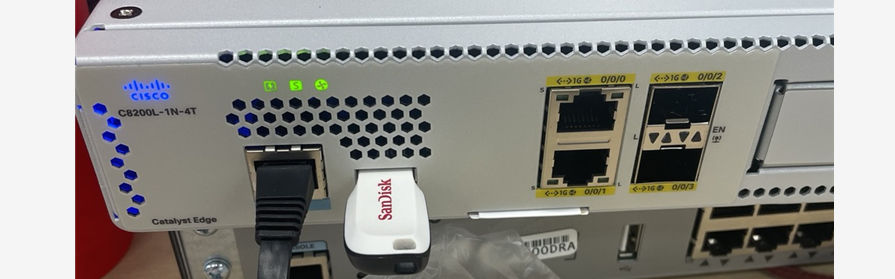

1. USB를 C8200 Router에 연결 합니다.
아래처럼 로그가 발생하면 정상적으로 usb가 인식 되었습니다.
| Router# *Feb 10 05:34:02.622: %IOSD_INFRA-6-IFS_DEVICE_OIR: Device usb0 added |
| Router#dir usb0:/TC_8200 Directory of usb0:/TC_8200/ 819 -rwx 859360566 Feb 10 2025 12:36:56 +00:00 c8000be-universalk9.17.09.05e.SPA.bin |
2. 파일 복사하기
| Router#copy usb0:/TC_8200/c8000be-universalk9.17.09.05e.SPA.bin flash: Destination filename [c8000be-universalk9.17.09.05e.SPA.bin]? Copy in progress...CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC 859360566 bytes copied in 40.479 secs (21229787 bytes/sec) Router# |
파일 확인하기
아래 c8000be-universalk9.17.09.05e.SPA.bin 복사 되었습니다.
| Router#dir flash: Directory of bootflash:/ 429089 drwx 57344 Feb 10 2025 06:07:00 +00:00 tracelogs 13 -rw- 859360566 Feb 10 2025 06:06:59 +00:00 c8000be-universalk9.17.09.05e.SPA.bin 267169 drwx 4096 Feb 10 2025 05:19:36 +00:00 pnp-tech 11 -rw- 248 Feb 10 2025 05:19:29 +00:00 .iox_dir_list 412897 drwx 4096 Feb 10 2025 05:19:23 +00:00 license_evlog 24295 -rw- 30 Feb 10 2025 05:18:46 +00:00 throughput_monitor_params 24292 -rw- 134899 Feb 10 2025 05:18:40 +00:00 memleak.tcl 24290 -rw- 1092 Feb 10 2025 05:18:09 +00:00 mode_event_log 89057 drwx 4096 Feb 10 2025 05:17:48 +00:00 .installer 12 drwx 4096 Feb 10 2025 04:29:43 +00:00 lost+found 226689 drwx 4096 Aug 26 2024 16:49:41 +00:00 .prst_sync 275265 drwx 4096 Aug 26 2024 16:42:04 +00:00 .dbpersist 437185 drwx 4096 Aug 26 2024 16:33:30 +00:00 sysboot 420993 drwx 4096 Aug 26 2024 16:31:49 +00:00 .rollback_timer 291458 -rw- 9338 Aug 26 2024 16:28:08 +00:00 packages.conf 291478 -rw- 43301928 Aug 26 2024 16:28:08 +00:00 c8000be-rpboot.17.06.06a.SPA.pkg 291477 -rw- 623141956 Aug 26 2024 16:27:18 +00:00 c8000be-mono-universalk9.17.06.06a.SPA.pkg 291476 -rw- 156728 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_nim_adpt.17.06.06a.SPA.pkg 291475 -rw- 2094136 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_dsp_sp2700.17.06.06a.SPA.pkg 291474 -rw- 14259252 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_async.17.06.06a.SPA.pkg 291473 -rw- 11093044 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_1t3e3.17.06.06a.SPA.pkg 291472 -rw- 2475056 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_10g.17.06.06a.SPA.pkg 291471 -rw- 10253360 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_prince.17.06.06a.SPA.pkg 291470 -rw- 5571636 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_nim_xdsl.17.06.06a.SPA.pkg 291469 -rw- 5334068 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_ssd.17.06.06a.SPA.pkg 291468 -rw- 11523124 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_shdsl.17.06.06a.SPA.pkg 291467 -rw- 2966576 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_ge.17.06.06a.SPA.pkg 291466 -rw- 17646644 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_cwan.17.06.06a.SPA.pkg 291465 -rw- 4793400 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_bri_st_fw.17.06.06a.SPA.pkg 291464 -rw- 12870708 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_async.17.06.06a.SPA.pkg 291463 -rw- 11310132 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_ngwic_t1e1.17.06.06a.SPA.pkg 291462 -rw- 18342964 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_tilegx.17.06.06a.SPA.pkg 291461 -rw- 1963060 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_sp2700.17.06.06a.SPA.pkg 291460 -rw- 6681656 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_analogbri.17.06.06a.SPA.pkg 291459 -rw- 54324 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dreamliner.17.06.06a.SPA.pkg 186209 drwx 4096 Aug 26 2024 16:20:23 +00:00 iox_host_data_share 364321 drwx 4096 Aug 26 2024 16:20:17 +00:00 core 210497 drwx 4096 Aug 26 2024 16:20:02 +00:00 guest-share 170017 drwx 4096 Aug 26 2024 16:19:55 +00:00 onep 129537 drwx 4096 Aug 26 2024 16:19:54 +00:00 pnp-info 121441 drwx 4096 Aug 26 2024 16:19:23 +00:00 virtual-instance 24294 -rw- 1923 Aug 26 2024 16:19:18 +00:00 trustidrootx3_ca_092024.ca 24293 -rw- 20109 Aug 26 2024 16:19:18 +00:00 ios_core.p7b 340033 drwx 4096 Aug 26 2024 16:19:03 +00:00 ss_disc 24291 -rw- 5242880 Aug 26 2024 16:19:03 +00:00 ssd 307649 drwx 4096 Aug 26 2024 16:18:49 +00:00 .ssh 7361155072 bytes total (5311582208 bytes free) Router# |
3. MD5 Checksum 확인
789f0f212ccd155b8aef19ce93c8476e
| Router#verify /md5 flash:/c8000be-universalk9.17.09.05e.SPA.bin ............................................................................................................................................................................................. .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Done! verify /md5 (bootflash:/c8000be-universalk9.17.09.05e.SPA.bin) = 789f0f212ccd155b8aef19ce93c8476e Router# |
파일이 잘 복사 되었습니다.
4. 이제 새로운 ios xe를 설치 합니다.
SUMMARY STEPS
- enable
- install add file location: filename
- show install summary
- install activate [auto-abort-timer <time>]
- install abort
- install commit
- install rollback to committed
- install remove {file filesystem: filename | inactive}
- show install summary
- exit
| install add file flash:c8000be-universalk9.17.09.05e.SPA.bin activate commit System configuration has been modified. Press Yes(y) to save the configuration and proceed. Press No(n) for proceeding without saving the configuration. Press Quit(q) to exit, you may save configuration and re-enter the command. [y/n/q] y Building configuration... [OK]Modified configuration has been saved *Feb 10 06:15:04.641: %SYS-6-PRIVCFG_ENCRYPT_SUCCESS: Successfully encrypted private config file *Feb 10 06:15:05.160: %INSTALL-5-INSTALL_START_INFO: R0/0: install_engine: Started install one-shot bootflash:c8000be-universalk9.17.09.05e.SPA.bininstall_add_activate_commit: Adding PACKAGE install_add_activate_commit: Checking whether new add is allowed .... --- Starting Add --- Performing Add on Active/Standby [1] Add package(s) on R0 [1] Finished Add on R0 Checking status of Add on [R0] Add: Passed on [R0] Finished Add Image added. Version: 17.09.05e.0.80 install_add_activate_commit: Activating PACKAGE *Feb 10 06:19:52.040: %EVENTLIB-3-CPUHOG: C0/0: iomd: uipeer downlink listener: 1520ms, Traceback=1#150f3a63e6e344df147a5440723734c6 evlib:7F79718AB000+A1D6 c:7F793381E000+3B3B0 ld-linux-x86-64:7F7983E83000+A974 ld-linux-x86-64:7F7983E83000+B4C5 ld-linux-x86-64:7F7983E83000+10085 ld-linux-x86-64:7F7983E83000+16BCA bipc:7F7972F08000+A381 bipc:7F7972F08000+412F uipeer:7F79739AB000+1EF7C evlib:7F79718AB000+8E16 evlib:7F79718AB000+9B60Following packages shall be activated: /bootflash/c8000be-rpboot.17.09.05e.SPA.pkg /bootflash/c8000be-mono-universalk9.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_sm_nim_adpt.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_sm_dsp_sp2700.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_sm_async.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_sm_1t3e3.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_sm_10g.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_prince.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_xdsl.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_ssd.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_shdsl.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_ge.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_cwan.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_bri_st_fw.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_nim_async.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_ngwic_t1e1.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_dsp_tilegx.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_dsp_sp2700.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_dsp_analogbri.17.09.05e.SPA.pkg /bootflash/c8000be-firmware_dreamliner.17.09.05e.SPA.pkg This operation may require a reload of the system. Do you want to proceed? [y/n] y --- Starting Activate --- Performing Activate on Active/Standby |
재부팅이 완료 될때까지 기다립니다.
5. Version 확인
| Router# show install summary [ R0 ] Installed Package(s) Information: State (St): I - Inactive, U - Activated & Uncommitted, C - Activated & Committed, D - Deactivated & Uncommitted -------------------------------------------------------------------------------- Type St Filename/Version -------------------------------------------------------------------------------- IMG C 17.09.05e.0.80 -------------------------------------------------------------------------------- Auto abort timer: inactive -------------------------------------------------------------------------------- Router# |
6. 기존에 Package가 Flash:에 존재 합니다. 필요없는 파일은 삭제합니다.
| Router#dir flash: Directory of bootflash:/ 89057 drwx 4096 Feb 10 2025 06:29:40 +00:00 .installer 412897 drwx 4096 Feb 10 2025 06:28:09 +00:00 license_evlog 24295 -rw- 30 Feb 10 2025 06:28:09 +00:00 throughput_monitor_params 24292 -rw- 137940 Feb 10 2025 06:28:05 +00:00 memleak.tcl 226689 drwx 4096 Feb 10 2025 06:27:59 +00:00 .prst_sync 24289 -rw- 1939 Feb 10 2025 06:27:50 +00:00 trustidrootx3_ca_062035.ca 24290 -rwx 1274 Feb 10 2025 06:27:45 +00:00 mode_event_log 429089 drwx 57344 Feb 10 2025 06:27:42 +00:00 tracelogs 64769 drwx 4096 Feb 10 2025 06:27:04 +00:00 SHARED-IOX 420993 drwx 4096 Feb 10 2025 06:25:25 +00:00 .rollback_timer 16 -rw- 9330 Feb 10 2025 06:24:28 +00:00 packages.conf 404802 -rw- 9330 Feb 10 2025 06:18:05 +00:00 c8000be-universalk9.17.09.05e.SPA.conf 226691 -rw- 38283450 Feb 10 2025 06:18:05 +00:00 c8000be-rpboot.17.09.05e.SPA.pkg 404821 -rw- 679469056 Feb 10 2025 06:17:20 +00:00 c8000be-mono-universalk9.17.09.05e.SPA.pkg 404820 -rw- 167936 Feb 10 2025 06:17:08 +00:00 c8000be-firmware_sm_nim_adpt.17.09.05e.SPA.pkg 404819 -rw- 2138112 Feb 10 2025 06:17:08 +00:00 c8000be-firmware_sm_dsp_sp2700.17.09.05e.SPA.pkg 404818 -rw- 14557184 Feb 10 2025 06:17:08 +00:00 c8000be-firmware_sm_async.17.09.05e.SPA.pkg 404817 -rw- 11366400 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_sm_1t3e3.17.09.05e.SPA.pkg 404816 -rw- 2535424 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_sm_10g.17.09.05e.SPA.pkg 404815 -rw- 10432512 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_prince.17.09.05e.SPA.pkg 404814 -rw- 5677056 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_nim_xdsl.17.09.05e.SPA.pkg 404813 -rw- 5431296 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_nim_ssd.17.09.05e.SPA.pkg 404812 -rw- 11714560 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_nim_shdsl.17.09.05e.SPA.pkg 404811 -rw- 2994176 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_ge.17.09.05e.SPA.pkg 404810 -rw- 17960960 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_cwan.17.09.05e.SPA.pkg 404809 -rw- 4894720 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_bri_st_fw.17.09.05e.SPA.pkg 404808 -rw- 13139968 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_async.17.09.05e.SPA.pkg 404807 -rw- 11497472 Feb 10 2025 06:17:05 +00:00 c8000be-firmware_ngwic_t1e1.17.09.05e.SPA.pkg 404806 -rw- 18649088 Feb 10 2025 06:17:05 +00:00 c8000be-firmware_dsp_tilegx.17.09.05e.SPA.pkg 404805 -rw- 2007040 Feb 10 2025 06:17:04 +00:00 c8000be-firmware_dsp_sp2700.17.09.05e.SPA.pkg 404804 -rw- 6799360 Feb 10 2025 06:17:04 +00:00 c8000be-firmware_dsp_analogbri.17.09.05e.SPA.pkg 404803 -rw- 65536 Feb 10 2025 06:17:04 +00:00 c8000be-firmware_dreamliner.17.09.05e.SPA.pkg 13 -rw- 859360566 Feb 10 2025 06:06:59 +00:00 c8000be-universalk9.17.09.05e.SPA.bin 267169 drwx 4096 Feb 10 2025 05:19:36 +00:00 pnp-tech 11 -rw- 248 Feb 10 2025 05:19:29 +00:00 .iox_dir_list 12 drwx 4096 Feb 10 2025 04:29:43 +00:00 lost+found 275265 drwx 4096 Aug 26 2024 16:42:04 +00:00 .dbpersist 437185 drwx 4096 Aug 26 2024 16:33:30 +00:00 sysboot 291478 -rw- 43301928 Aug 26 2024 16:28:08 +00:00 c8000be-rpboot.17.06.06a.SPA.pkg 291477 -rw- 623141956 Aug 26 2024 16:27:18 +00:00 c8000be-mono-universalk9.17.06.06a.SPA.pkg 291476 -rw- 156728 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_nim_adpt.17.06.06a.SPA.pkg 291475 -rw- 2094136 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_dsp_sp2700.17.06.06a.SPA.pkg 291474 -rw- 14259252 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_async.17.06.06a.SPA.pkg 291473 -rw- 11093044 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_1t3e3.17.06.06a.SPA.pkg 291472 -rw- 2475056 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_sm_10g.17.06.06a.SPA.pkg 291471 -rw- 10253360 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_prince.17.06.06a.SPA.pkg 291470 -rw- 5571636 Aug 26 2024 16:27:07 +00:00 c8000be-firmware_nim_xdsl.17.06.06a.SPA.pkg 291469 -rw- 5334068 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_ssd.17.06.06a.SPA.pkg 291468 -rw- 11523124 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_shdsl.17.06.06a.SPA.pkg 291467 -rw- 2966576 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_ge.17.06.06a.SPA.pkg 291466 -rw- 17646644 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_cwan.17.06.06a.SPA.pkg 291465 -rw- 4793400 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_bri_st_fw.17.06.06a.SPA.pkg 291464 -rw- 12870708 Aug 26 2024 16:27:06 +00:00 c8000be-firmware_nim_async.17.06.06a.SPA.pkg 291463 -rw- 11310132 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_ngwic_t1e1.17.06.06a.SPA.pkg 291462 -rw- 18342964 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_tilegx.17.06.06a.SPA.pkg 291461 -rw- 1963060 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_sp2700.17.06.06a.SPA.pkg 291460 -rw- 6681656 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dsp_analogbri.17.06.06a.SPA.pkg 291459 -rw- 54324 Aug 26 2024 16:27:05 +00:00 c8000be-firmware_dreamliner.17.06.06a.SPA.pkg 186209 drwx 4096 Aug 26 2024 16:20:23 +00:00 iox_host_data_share 364321 drwx 4096 Aug 26 2024 16:20:17 +00:00 core 210497 drwx 4096 Aug 26 2024 16:20:02 +00:00 guest-share 170017 drwx 4096 Aug 26 2024 16:19:55 +00:00 onep 129537 drwx 4096 Aug 26 2024 16:19:54 +00:00 pnp-info 121441 drwx 4096 Aug 26 2024 16:19:23 +00:00 virtual-instance 24294 -rw- 1923 Aug 26 2024 16:19:18 +00:00 trustidrootx3_ca_092024.ca 24293 -rw- 20109 Aug 26 2024 16:19:18 +00:00 ios_core.p7b 24291 -rw- 5242880 Aug 26 2024 16:19:03 +00:00 ssd 307649 drwx 4096 Aug 26 2024 16:18:49 +00:00 .ssh |
| Router#install remove inactive install_remove: START Mon Feb 10 06:34:40 UTC 2025 install_remove: Removing IMG Cleaning up unnecessary package files No path specified, will use booted path /bootflash/packages.conf Cleaning /bootflash Scanning boot directory for packages ... done. Preparing packages list to delete ... [R0]: /bootflash/packages.conf File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_dreamliner.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_dsp_analogbri.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_dsp_sp2700.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_dsp_tilegx.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_ngwic_t1e1.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_async.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_bri_st_fw.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_cwan.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_ge.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_shdsl.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_ssd.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_nim_xdsl.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_prince.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_sm_10g.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_sm_1t3e3.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_sm_async.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_sm_dsp_sp2700.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-firmware_sm_nim_adpt.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-mono-universalk9.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-rpboot.17.09.05e.SPA.pkg File is in use, will not delete. [R0]: /bootflash/c8000be-universalk9.17.09.05e.SPA.conf File is in use, will not delete. The following files will be deleted: [R0]: /bootflash/c8000be-firmware_dreamliner.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_dsp_analogbri.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_dsp_sp2700.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_dsp_tilegx.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_ngwic_t1e1.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_async.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_bri_st_fw.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_cwan.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_ge.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_shdsl.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_ssd.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_nim_xdsl.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_prince.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_sm_10g.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_sm_1t3e3.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_sm_async.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_sm_dsp_sp2700.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-firmware_sm_nim_adpt.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-mono-universalk9.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-rpboot.17.06.06a.SPA.pkg [R0]: /bootflash/c8000be-universalk9.17.09.05e.SPA.bin Do you want to remove the above files? *Feb 10 06:34:40.411: %INSTALL-5-INSTALL_START_INFO: R0/0: install_mgr: Started install remove [y/n]y Deleting file /bootflash/c8000be-firmware_dreamliner.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_dsp_analogbri.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_dsp_sp2700.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_dsp_tilegx.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_ngwic_t1e1.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_async.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_bri_st_fw.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_cwan.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_ge.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_shdsl.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_ssd.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_nim_xdsl.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_prince.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_sm_10g.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_sm_1t3e3.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_sm_async.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_sm_dsp_sp2700.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-firmware_sm_nim_adpt.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-mono-universalk9.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-rpboot.17.06.06a.SPA.pkg ... done. Deleting file /bootflash/c8000be-universalk9.17.09.05e.SPA.bin ... done. SUCCESS: Files deleted. --- Starting Post_Remove_Cleanup --- Performing REMOVE_POSTCHECK on all members Finished Post_Remove_Cleanup SUCCESS: install_remove Mon Feb 10 06:35:12 UTC 2025 Router# *Feb 10 06:35:12.911: %INSTALL-5-INSTALL_COMPLETED_INFO: R0/0: install_mgr: Completed install remove Router# Router# Router# Router# Router# Router# Router# Router#dir flash: Directory of bootflash:/ 89057 drwx 4096 Feb 10 2025 06:35:13 +00:00 .installer 412897 drwx 4096 Feb 10 2025 06:28:09 +00:00 license_evlog 24295 -rw- 30 Feb 10 2025 06:28:09 +00:00 throughput_monitor_params 24292 -rw- 137940 Feb 10 2025 06:28:05 +00:00 memleak.tcl 226689 drwx 4096 Feb 10 2025 06:27:59 +00:00 .prst_sync 24289 -rw- 1939 Feb 10 2025 06:27:50 +00:00 trustidrootx3_ca_062035.ca 24290 -rwx 1274 Feb 10 2025 06:27:45 +00:00 mode_event_log 429089 drwx 57344 Feb 10 2025 06:27:42 +00:00 tracelogs 64769 drwx 4096 Feb 10 2025 06:27:04 +00:00 SHARED-IOX 420993 drwx 4096 Feb 10 2025 06:25:25 +00:00 .rollback_timer 16 -rw- 9330 Feb 10 2025 06:24:28 +00:00 packages.conf 404802 -rw- 9330 Feb 10 2025 06:18:05 +00:00 c8000be-universalk9.17.09.05e.SPA.conf 226691 -rw- 38283450 Feb 10 2025 06:18:05 +00:00 c8000be-rpboot.17.09.05e.SPA.pkg 404821 -rw- 679469056 Feb 10 2025 06:17:20 +00:00 c8000be-mono-universalk9.17.09.05e.SPA.pkg 404820 -rw- 167936 Feb 10 2025 06:17:08 +00:00 c8000be-firmware_sm_nim_adpt.17.09.05e.SPA.pkg 404819 -rw- 2138112 Feb 10 2025 06:17:08 +00:00 c8000be-firmware_sm_dsp_sp2700.17.09.05e.SPA.pkg 404818 -rw- 14557184 Feb 10 2025 06:17:08 +00:00 c8000be-firmware_sm_async.17.09.05e.SPA.pkg 404817 -rw- 11366400 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_sm_1t3e3.17.09.05e.SPA.pkg 404816 -rw- 2535424 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_sm_10g.17.09.05e.SPA.pkg 404815 -rw- 10432512 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_prince.17.09.05e.SPA.pkg 404814 -rw- 5677056 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_nim_xdsl.17.09.05e.SPA.pkg 404813 -rw- 5431296 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_nim_ssd.17.09.05e.SPA.pkg 404812 -rw- 11714560 Feb 10 2025 06:17:07 +00:00 c8000be-firmware_nim_shdsl.17.09.05e.SPA.pkg 404811 -rw- 2994176 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_ge.17.09.05e.SPA.pkg 404810 -rw- 17960960 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_cwan.17.09.05e.SPA.pkg 404809 -rw- 4894720 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_bri_st_fw.17.09.05e.SPA.pkg 404808 -rw- 13139968 Feb 10 2025 06:17:06 +00:00 c8000be-firmware_nim_async.17.09.05e.SPA.pkg 404807 -rw- 11497472 Feb 10 2025 06:17:05 +00:00 c8000be-firmware_ngwic_t1e1.17.09.05e.SPA.pkg 404806 -rw- 18649088 Feb 10 2025 06:17:05 +00:00 c8000be-firmware_dsp_tilegx.17.09.05e.SPA.pkg 404805 -rw- 2007040 Feb 10 2025 06:17:04 +00:00 c8000be-firmware_dsp_sp2700.17.09.05e.SPA.pkg 404804 -rw- 6799360 Feb 10 2025 06:17:04 +00:00 c8000be-firmware_dsp_analogbri.17.09.05e.SPA.pkg 404803 -rw- 65536 Feb 10 2025 06:17:04 +00:00 c8000be-firmware_dreamliner.17.09.05e.SPA.pkg 267169 drwx 4096 Feb 10 2025 05:19:36 +00:00 pnp-tech 11 -rw- 248 Feb 10 2025 05:19:29 +00:00 .iox_dir_list 12 drwx 4096 Feb 10 2025 04:29:43 +00:00 lost+found 275265 drwx 4096 Aug 26 2024 16:42:04 +00:00 .dbpersist 437185 drwx 4096 Aug 26 2024 16:33:30 +00:00 sysboot 186209 drwx 4096 Aug 26 2024 16:20:23 +00:00 iox_host_data_share 364321 drwx 4096 Aug 26 2024 16:20:17 +00:00 core 210497 drwx 4096 Aug 26 2024 16:20:02 +00:00 guest-share 170017 drwx 4096 Aug 26 2024 16:19:55 +00:00 onep 129537 drwx 4096 Aug 26 2024 16:19:54 +00:00 pnp-info 121441 drwx 4096 Aug 26 2024 16:19:23 +00:00 virtual-instance 24294 -rw- 1923 Aug 26 2024 16:19:18 +00:00 trustidrootx3_ca_092024.ca 24293 -rw- 20109 Aug 26 2024 16:19:18 +00:00 ios_core.p7b 24291 -rw- 5242880 Aug 26 2024 16:19:03 +00:00 ssd 307649 drwx 4096 Aug 26 2024 16:18:49 +00:00 .ssh 7361155072 bytes total (6116417536 bytes free) Router# |
show version
| Router# show version Cisco IOS XE Software, Version 17.09.05e Cisco IOS Software [Cupertino], c8000be Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 17.9.5e, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2024 by Cisco Systems, Inc. Compiled Thu 12-Dec-24 19:05 by mcpre Cisco IOS-XE software, Copyright (c) 2005-2024 by cisco Systems, Inc. All rights reserved. Certain components of Cisco IOS-XE software are licensed under the GNU General Public License ("GPL") Version 2.0. The software code licensed under GPL Version 2.0 is free software that comes with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such GPL code under the terms of GPL Version 2.0. For more details, see the documentation or "License Notice" file accompanying the IOS-XE software, or the applicable URL provided on the flyer accompanying the IOS-XE software. ROM: 17.6(8.1r) Router uptime is 9 minutes Uptime for this control processor is 9 minutes System returned to ROM by Reload Command System image file is "bootflash:packages.conf" Last reload reason: Reload Command This product contains cryptographic features and is subject to United States and local country laws governing import, export, transfer and use. Delivery of Cisco cryptographic products does not imply third-party authority to import, export, distribute or use encryption. Importers, exporters, distributors and users are responsible for compliance with U.S. and local country laws. By using this product you agree to comply with applicable laws and regulations. If you are unable to comply with U.S. and local laws, return this product immediately. A summary of U.S. laws governing Cisco cryptographic products may be found at: http://www.cisco.com/wwl/export/crypto/tool/stqrg.html If you require further assistance please contact us by sending email to export@cisco.com. Technology Package License Information: ----------------------------------------------------------------- Technology Type Technology-package Technology-package Current Next Reboot ----------------------------------------------------------------- Smart License Perpetual None None Smart License Subscription None None The current crypto throughput level is 250000 kbps Smart Licensing Status: Smart Licensing Using Policy cisco C8200L-1N-4T (1RU) processor with 1653598K/6147K bytes of memory. Processor board ID FGL2835L17V Router operating mode: Autonomous 4 Gigabit Ethernet interfaces 32768K bytes of non-volatile configuration memory. 4194304K bytes of physical memory. 7245823K bytes of flash memory at bootflash:. Configuration register is 0x2102 Router# |
다시 한번 재부팅해서 제대로 부팅되는지 확인합니다.
| Router#reload Proceed with reload? [confirm] *Feb 10 06:37:38.872: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload Command. |
정상적으로 부팅이 잘 됩니다.
지금까지 [2025][C8200] Router IOS XE upgrade 글을 읽어주셔서 감사합니다.
