[C9800CL][#4]-AP Join Process - Manual Method

안녕하세요.



오늘은 AP를 직접 IP주소랑 Default Gateway를 설정하고 WLC에 Manuall하게 등록해 보겠습니다.

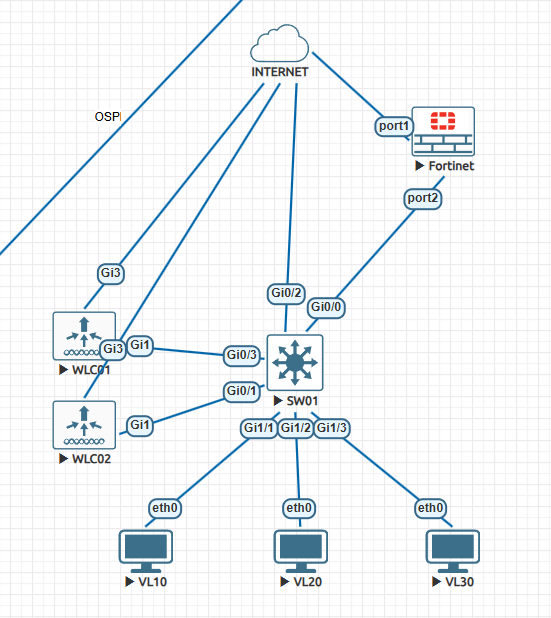

테스트 IP주소 입니다.

AP IP: 192.168.200.200

AP GW: 192.168.200.181

WLC: 192.168.100.182



AP주소를 초기에 설정시 아래와 같이 Username/Passowrd는 Cisco 입니다.

Username: Cisco Password: Cisco APC884.A1CC.2F48>en Password: Cisco APC884.A1CC.2F48#



1. AP에 IP주소랑 Gateway를 설정 합니다.

capwap ap ip 192.168.200.200 255.255.255.0 192.168.200.181



IP주소를 입력하면 CAPWAP discovery 패킷을 Broadcase를 사용 해서 전송 하고 있습니다.

하지만 AP랑 WLC가 같은 L2도메인 안에 없기 때문에, WLC 찾을수 없습니다.

[*12/24/2024 10:37:43.9513] Check whether client_ip_table entry need to be cleared 0 [*12/24/2024 10:37:43.9613] Clearing client entry [*12/24/2024 10:37:46.6105] AP IPv4 Address updated from 0.0.0.0 to 192.168.200.200 [*12/24/2024 10:37:46.6305] send CAPWAP ctrl msg to the socket: Socket operation on non-socket [*12/24/2024 10:37:46.6305] dtls_init: Use MIC certificate [*12/24/2024 10:37:46.9404]  [*12/24/2024 10:37:46.9404] CAPWAP State: Init [*12/24/2024 10:38:02.6655] PNP:Server not reachable, Start CAPWAP Discovery [*12/24/2024 10:38:02.6855]  [*12/24/2024 10:38:02.6855] CAPWAP State: Discovery [*12/24/2024 10:38:02.8954] Discovery Request sent to 255.255.255.255, discovery type UNKNOWN(0) [*12/24/2024 10:38:02.9054]  [*12/24/2024 10:38:02.9054] CAPWAP State: Discovery



2. AP Hostname를 변경하고 WLC주소를 입력합니다.

APC884.A1CC.2F48#capwap ap hostname AP01 APC884.A1CC.2F48#capwap ap primary-base WLC01 192.168.100.182



아래처럼 WLC가 Discovery Response 패킷을 전송하였습니다.

그리고 Found Confirued WLC01 이후 DTLS setup 시작 합니다.

[*12/24/2024 10:40:01.2284] CAPWAP State: Discovery [*12/24/2024 10:40:01.4283] Discovery Request sent to 192.168.100.182, discovery type STATIC_CONFIG(1) [*12/24/2024 10:40:01.6383] Discovery Request sent to 192.168.100.182, discovery type STATIC_CONFIG(1) [*12/24/2024 10:40:01.8382] Discovery Request sent to 255.255.255.255, discovery type UNKNOWN(0) [*12/24/2024 10:40:01.8482] Discovery Response from 192.168.100.182 [*12/24/2024 10:40:01.8482] Found Configured MWAR 'WLC01' (respIdx 0). [*12/24/2024 10:41:34.0000] Started wait dtls timer (60 sec) [*12/24/2024 10:41:34.0000]  [*12/24/2024 10:41:34.0000] CAPWAP State: DTLS Setup [*12/24/2024 10:41:34.0399] Invalid event 2 & state 3 combination. [*12/24/2024 10:41:34.0399] CAPWAP SM handler: Failed to process message type 2 state 3. [*12/24/2024 10:41:34.0399] Failed to handle capwap control message from controller - status 1 [*12/24/2024 10:41:34.0399] Failed to process unencrypted capwap packet 0x2c1ab000 from 192.168.100.182 [*12/24/2024 10:41:34.0399] Failed to send capwap message 0 to the state machine. Packet already freed. [*12/24/2024 10:41:34.0999] First connect to vWLC, accept vWLC by default [*12/24/2024 10:41:34.0999]  [*12/24/2024 10:41:34.1399] dtls_verify_server_cert: vWLC is using SSC, returning 1 [*12/24/2024 10:41:34.2099]  [*12/24/2024 10:41:34.2099] CAPWAP State: Join [*12/24/2024 10:41:34.3699] Sending Join request to 192.168.100.182 through port 5248, packet size 1376 [*12/24/2024 10:41:39.0884] Sending Join request to 192.168.100.182 through port 5248, packet size 1376 [*12/24/2024 10:41:39.1784] Join Response from 192.168.100.182, packet size 1397 [*12/24/2024 10:41:39.1784] AC accepted previous sent request with result code: 0 [*12/24/2024 10:41:39.1784] Received wlcType 0, timer 30 [*12/24/2024 10:41:39.2284] nss_capwapmgr_enable_tunnel[1682]:ef30c000: tunnel 0 is already enabled [*12/24/2024 10:41:39.3183]  [*12/24/2024 10:41:39.3183] CAPWAP State: Image Data [*12/24/2024 10:41:39.3183] AP image version 17.13.0.107 backup 17.8.0.144, Controller 17.13.0.107 [*12/24/2024 10:41:39.3183] Version is the same, do not need update. [*12/24/2024 10:41:39.3883] status 'upgrade.sh: Script called with args:[NO_UPGRADE]' [*12/24/2024 10:41:39.4383] do NO_UPGRADE, part2 is active part [*12/24/2024 10:41:39.4483]  [*12/24/2024 10:41:39.4483] CAPWAP State: Configure [*12/24/2024 10:41:39.6682] Radio [2] Administrative state DISABLED  change to ENABLED  [*12/24/2024 10:41:39.6782] Radio [1] Administrative state DISABLED  change to ENABLED  [*12/24/2024 10:41:39.6782] Radio [0] Administrative state DISABLED  change to ENABLED  [*12/24/2024 10:41:39.6782] DOT11_CFG[1]: Starting radio 1 [*12/24/2024 10:41:39.6782] DOT11_DRV[1]: Start Radio1 - Begin [*12/24/2024 10:41:39.6782] DOT11_DRV[1]: Start Radio1 - End [*12/24/2024 10:41:39.6782] DOT11_CFG[0]: Starting radio 0 [*12/24/2024 10:41:39.6782] DOT11_DRV[0]: Start Radio0 - Begin [*12/24/2024 10:41:39.6882] DOT11_DRV[0]: Start Radio0 - End [*12/24/2024 10:41:40.1481] Radio Authority: no country code [*12/24/2024 10:41:40.1581] Cannot open CDUMP_COUNT! [*12/24/2024 10:41:40.2680]  [*12/24/2024 10:41:40.2680] CAPWAP State: Run [*12/24/2024 10:41:40.3480] AP has joined controller WLC01 [*12/24/2024 10:41:40.3980] Previous AP mode is 0, change to 2 [*12/24/2024 10:41:40.4080] DOT11_CFG[0] Radio Mode is changed from Local to FlexConnect [*12/24/2024 10:41:40.4280] DOT11_DRV[0]: Stop Radio0 - Begin [*12/24/2024 10:41:40.4380] DOT11_DRV[0]: Stop Radio0 - End [*12/24/2024 10:41:40.4380] DOT11_CFG[0]: Starting radio 0 [*12/24/2024 10:41:40.4380] DOT11_DRV[0]: Start Radio0 - Begin [*12/24/2024 10:41:40.4380] DOT11_DRV[0]: Start Radio0 - End [*12/24/2024 10:41:40.4380] DOT11_CFG[1] Radio Mode is changed from Local to FlexConnect [*12/24/2024 10:41:40.4480] DOT11_DRV[1]: Stop Radio1 - Begin [*12/24/2024 10:41:40.4480] DOT11_DRV[1]: Stop Radio1 - End [*12/24/2024 10:41:40.4480] DOT11_CFG[1]: Starting radio 1 [*12/24/2024 10:41:40.4480] DOT11_DRV[1]: Start Radio1 - Begin [*12/24/2024 10:41:40.4480] DOT11_DRV[1]: Start Radio1 - End [*12/24/2024 10:41:40.5779] DOT11_DRV[0]: Stop Radio0 - Begin [*12/24/2024 10:41:40.5779] DOT11_DRV[0]: Stop Radio0 - End [*12/24/2024 10:41:40.5779] DOT11_DRV[0]: Start Radio0 - Begin [*12/24/2024 10:41:40.5879] DOT11_DRV[0]: Start Radio0 - End [*12/24/2024 10:41:41.1178] syslog level is being set to 70 [*12/24/2024 10:41:41.1178]  [*12/24/2024 10:41:41.1578] Previous AP mode is 2, change to 2 [*12/24/2024 10:41:41.1678] Current session mode: ssh, Configured: Telnet-No, SSH-No, Console-Yes [*12/24/2024 10:41:41.1678]  [*12/24/2024 10:41:41.3977] Current session mode: telnet, Configured: Telnet-No, SSH-No, Console-Yes [*12/24/2024 10:41:41.3977]  [*12/24/2024 10:41:41.4177] Current session mode: console, Configured: Telnet-No, SSH-No, Console-Yes [*12/24/2024 10:41:41.4177]  [*12/24/2024 10:41:41.4777] chpasswd: password for user changed [*12/24/2024 10:41:41.4977] USB Device Disconnected from the AP [*12/24/2024 10:41:41.5376] chpasswd: password for user changed [*12/24/2024 10:41:41.7176]  [*12/24/2024 10:41:41.7176] Same LSC mode, no action needed [*12/24/2024 10:41:41.7176] Cannot open CDUMP_COUNT! [*12/24/2024 10:41:41.8975] Same value is already set. [*12/24/2024 10:41:42.3374] Got WSA Server config TLVs [*12/24/2024 10:41:43.6270] Socket: Valid Element: wcp/wcp_db Handler: set_vlan_name_map Data: null Length: 10 [*12/24/2024 10:41:45.3265] SD AVC only supports 802.11ax AP [*12/24/2024 10:41:45.8563] AP tag  change to default-policy-tag [*12/24/2024 10:42:08.7391] netlink socket init done, pnl->spectral_fd=4 [*12/24/2024 10:42:08.7391] CLEANAIR: Slot 0 admin disabled [*12/24/2024 10:42:10.7385] CLEANAIR: Slot 1 admin disabled AP01#[*12/24/2024 10:42:36.8903] Warning: Stopping dbg_day0_bundle.service, but it can still be activated by: [*12/24/2024 10:42:36.8903]   dbg_day0_bundle.timer AP01#



3. 이번에는 WLC GUI에 접속해서 AP를 확인해보겠습니다.

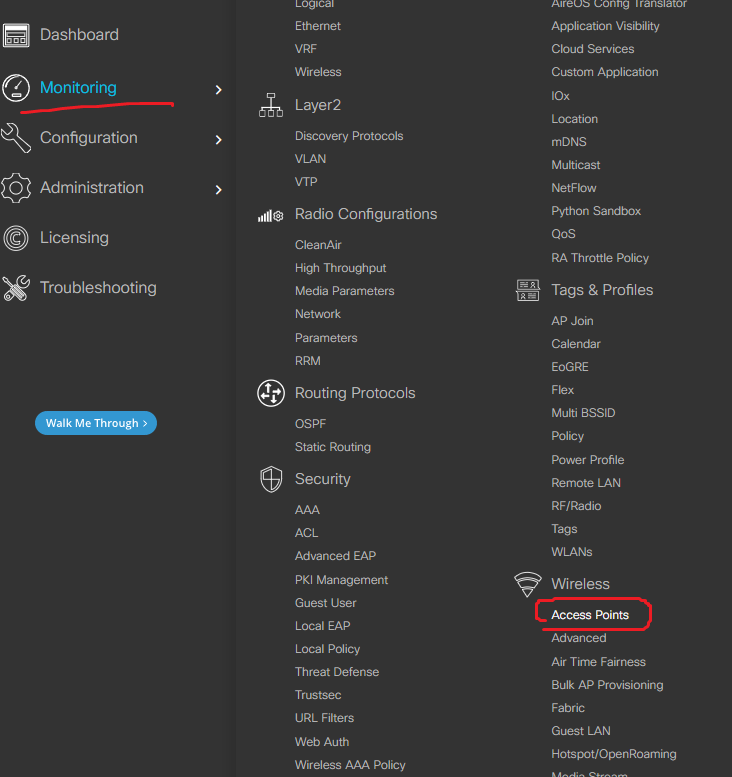

Monitoring ->Wireless ->AP statistics 클릭 합니다.

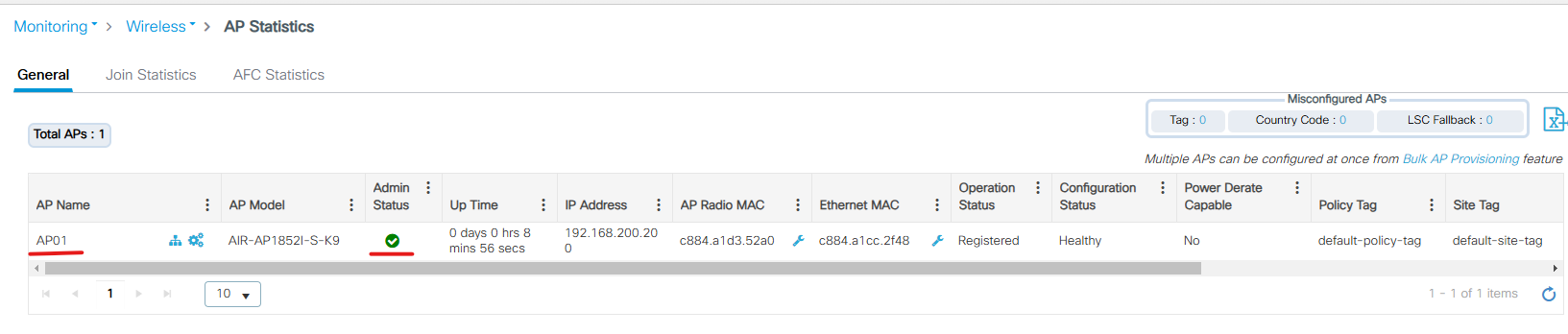

아래 사진처럼 AP01이 WLC에 등록이 되었고 Admin Status를 표시면 초록색으로 정상적입니다.

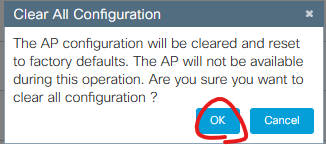

테스트를 위해서 WLC GUI에서 AP를 Reset 합니다.

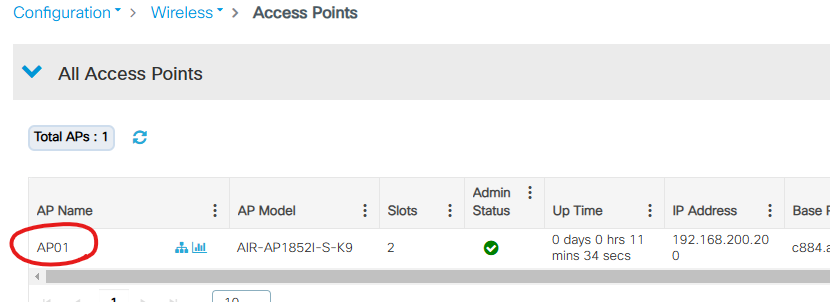

AP를 더블클릭 합니다.







지금까지 [C9800CL][#3]-AP Join Process - Manual Method 글을 읽어주셔서 감사합니다.

다음글은 DHCP option43를 이용해서 AP를 WLC에 등록 하는 글을 다루겠습니다.
