오늘은 C9300 Stack 스위치 IOS Upgrade에 대해서 알아보도록 하겠습니다.



현재 버전을 확인 하기 위해서 show version을 입력 합니다.

Switch Ports Model              SW Version        SW Image              Mode
------ ----- -----              ----------        ----------            ----
*    1 41    C9300-24T          17.12.03          CAT9K_IOSXE           INSTALL
     2 41    C9300-24T          17.12.03          CAT9K_IOSXE           INSTALL

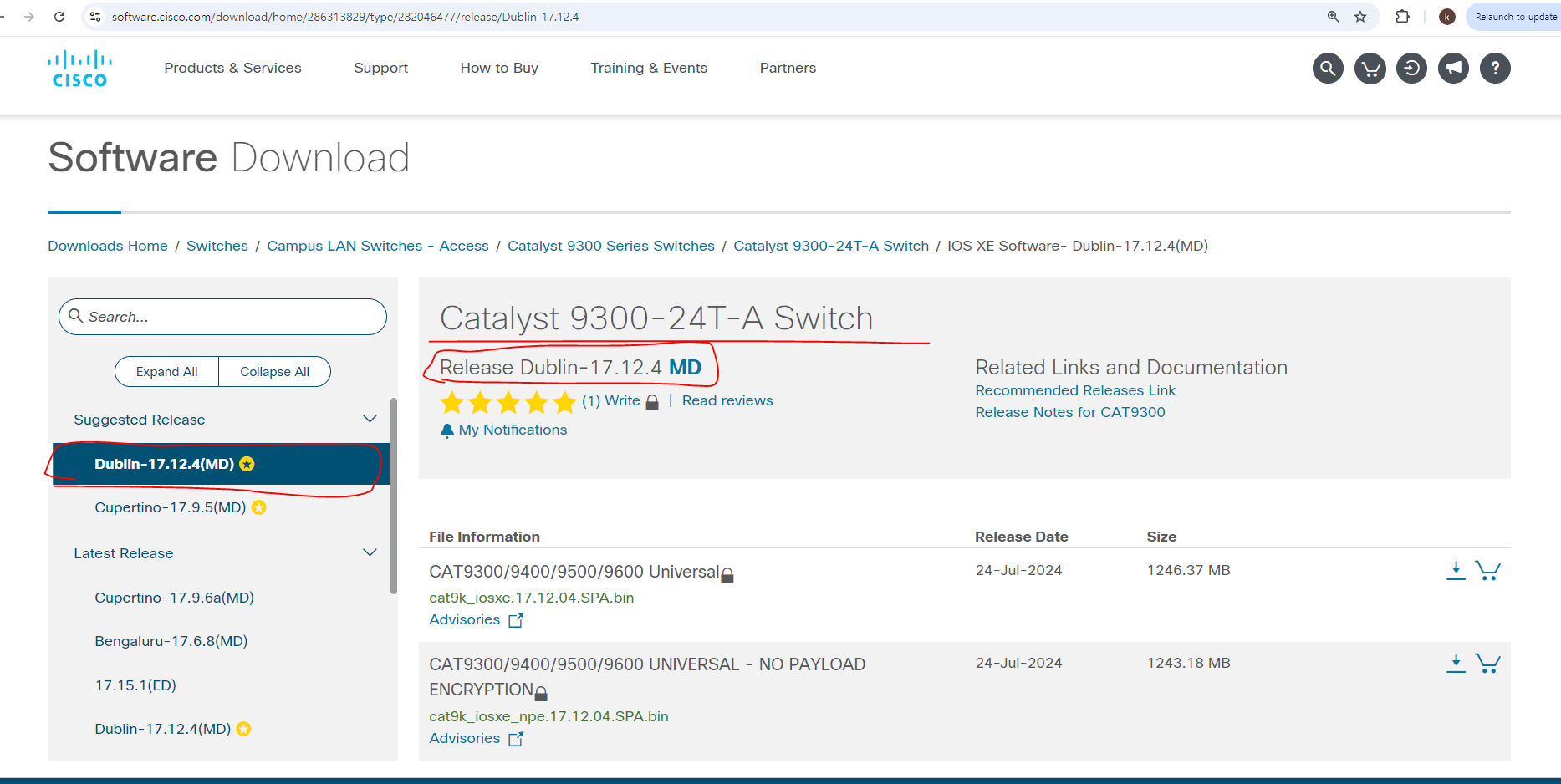

시스코 홈페이지를 접속해서 현재 시점에서 C9300-24T에 IOS 추천 버전을 확인 합니다.

https://software.cisco.com/download/home/286313829/type/286308587/release/17.12.4?i=!pp



현재 시스코 추천 IOS는 17.12.04 입니다.

이미지 파일을 다운로드 합니다.



USB를 준비 합니다.

USB에 이미지 파일을 복사 합니다.

그리고 USB를 Master SW에 연결 합니다.



첫번째 로그를 보시면 USB0이 정상적으로 인식 된걸 확인 할 수 있습니다.

그리고 file를 확인해 보면 아래와 같이 2개 파일을 확인 가능합니다.

npe - no payload 이미지 파일입니다.



우리는 payload 이미지 파일을 설치 해보겠습니다

Oct 24 07:32:00.763: %IOSD_INFRA-6-IFS_DEVICE_OIR: Device usbflash0 added.

Switch#dir usbflash0: | in 17.12
463     -rwx       1303572959  Oct 12 2024 23:17:02 +00:00  cat9k_iosxe_npe.17.12.04.SPA.bin
464     -rwx       1306917133  Oct 12 2024 22:57:34 +00:00  cat9k_iosxe.17.12.04.SPA.bin



1. usb0에 이미지 파일을 복사하기 전에 불필요한 파일을 삭제합니다.

Switch#install remove inactive
install_remove: START Thu Oct 24 07:35:45 UTC 2024
install_remove: Removing IMG
Cleaning up unnecessary package files
No path specified, will use booted path /flash/packages.conf

Cleaning /flash
  Scanning boot directory for packages ... done.
  Preparing packages list to delete ...
    [R0]: /flash/cat9k-cc_srdriver.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-cc_srdriver.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-espbase.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-espbase.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-guestshell.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-guestshell.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-lni.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-lni.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-rpbase.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-rpbase.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-sipbase.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-sipbase.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-sipspa.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-sipspa.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-srdriver.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-srdriver.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-webui.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-webui.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-wlc.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-wlc.17.12.03.SPA.pkg File is in use, will not delete.
    [R0]: /flash/packages.conf File is in use, will not delete.
    [R1]: /flash/packages.conf File is in use, will not delete.
    [R0]: /flash/cat9k-rpboot.17.12.03.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-rpboot.17.12.03.SPA.pkg File is in use, will not delete.

SUCCESS: No extra package or provisioning files found on media. Nothing to clean.
SUCCESS: Files deleted.

--- Starting Post_Remove_Cleanup ---
Performing REMOVE_POSTCHECK on all members
Finished Post_Remove_Cleanup
SUCCESS: install_remove Thu Oct 24 07:35:45 UTC 2024
Switch#
*Oct 24 07:35:45.573: %INSTALL-5-INSTALL_START_INFO: Switch 1 R0/0: install_mgr: Started install remove
*Oct 24 07:35:45.690: %INSTALL-5-INSTALL_COMPLETED_INFO: Switch 1 R0/0: install_mgr: Completed install remove
Switch#



2. usb에 있는 이미지 파일을 복사 합니다.

Switch#copy usbflash0:cat9k_iosxe.17.12.04.SPA.bin flash:
Destination filename [cat9k_iosxe.17.12.04.SPA.bin]?
Copy in progress...CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC         CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC         CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC         CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC         CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC         CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC         CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC

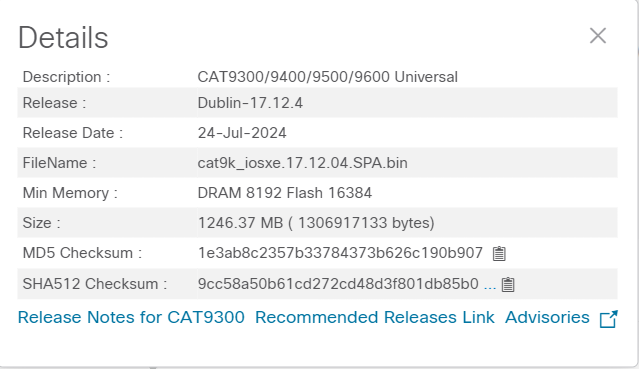

3. 이미지 파일이 정상적으로 복사가 되었는지 무결성 검사를 합니다.



1e3ab8c2357b33784373b626c190b907

Switch#verify /md5 flash:/cat9k_iosxe.17.12.04.SPA.bin
...................................

verify /md5 (flash:/cat9k_iosxe.17.12.04.SPA.bin) = 1e3ab8c2357b33784373b626c190b907



4. install mode는 packages.conf 파일을 사용하기 때문에 설정값이 제대로 맞는지 다시 한번 확인합니다.

Switch(config)#boot system flash:packages.conf

Switch#show boot system
---------------------------
Switch 1
---------------------------
Current Boot Variables:
BOOT variable = flash:packages.conf;

Boot Variables on next reload:
BOOT variable = flash:packages.conf;
Manual Boot = no
Enable Break = no
Boot Mode = DEVICE
iPXE Timeout = 0
---------------------------
Switch 2
---------------------------
Current Boot Variables:
BOOT variable = flash:packages.conf;

Boot Variables on next reload:
BOOT variable = flash:packages.conf;
Manual Boot = no
Enable Break = no
Boot Mode = DEVICE
iPXE Timeout = 0

Switch# wr




5. IOS를 업그레이드 합니다.



이미지 파일이 Standby SW에 복사를 시도 합니다. 그리고 IOS 업그레이드 시작합니다.

Switch# install add file flash:cat9k_iosxe.17.12.04.SPA.bin activate commit

Copying flash:cat9k_iosxe.17.12.04.SPA.bin from Switch 1 to Switch 1 2

*Oct 24 07:44:43.996: %INSTALL-5-INSTALL_START_INFO: Switch 1 R0/0: install_mgr: Started install add_activate_commit flash:cat9k_iosxe.17.12.04.SPA.bi



6. 복사가 완료 되고 IOS 버전 업그레이드를 시작 합니다. 그리고 Y를 선택합니다.

시간이 꽤 걸립니다. 인내심을 가지고 기다립니다.

--- Starting Add ---
Performing Add on all members

Finished Add

install_activate: START Thu Oct 24 07:46:56 UTC 2024
install_activate: Activating IMG
Following packages shall be activated:
/flash/cat9k-cc_srdriver.17.12.04.SPA.pkg
/flash/cat9k-espbase.17.12.04.SPA.pkg
/flash/cat9k-guestshell.17.12.04.SPA.pkg
/flash/cat9k-lni.17.12.04.SPA.pkg
/flash/cat9k-rpbase.17.12.04.SPA.pkg
/flash/cat9k-sipbase.17.12.04.SPA.pkg
/flash/cat9k-sipspa.17.12.04.SPA.pkg
/flash/cat9k-srdriver.17.12.04.SPA.pkg
/flash/cat9k-webui.17.12.04.SPA.pkg
/flash/cat9k-wlc.17.12.04.SPA.pkg
/flash/cat9k-rpboot.17.12.04.SPA.pkg

This operation may require a reload of the system. Do you want to proceed? [y/n]
*Oct 24 07:46:56.671: %INSTALL-5-INSTALL_START_INFO: Switch 1 R0/0: install_mgr: Started install activate NONEy

--- Starting Activate ---
Performing Activate on all members
 [1] Activate package(s) on Switch 1
 [2] Activate package(s) on Switch 2



7. 부팅이 완료 되면 로그인을 합니다. 그리고 패키지를 확인합니다.

Switch#dir flash:*.pkg
Directory of flash:/*.pkg

Directory of flash:/

155652  -rw-    29475848  Aug 24 2024 14:42:02 +00:00  cat9k-cc_srdriver.17.12.03.SPA.pkg
155653  -rw-   168936452  Aug 24 2024 14:42:02 +00:00  cat9k-espbase.17.12.03.SPA.pkg
155654  -rw-     2155524  Aug 24 2024 14:42:02 +00:00  cat9k-guestshell.17.12.03.SPA.pkg
155655  -rw-   120792064  Aug 24 2024 14:42:02 +00:00  cat9k-lni.17.12.03.SPA.pkg
155656  -rw-   763909120  Aug 24 2024 14:42:04 +00:00  cat9k-rpbase.17.12.03.SPA.pkg
155657  -rw-    48714756  Aug 24 2024 14:42:04 +00:00  cat9k-sipbase.17.12.03.SPA.pkg
155658  -rw-    56374272  Aug 24 2024 14:42:04 +00:00  cat9k-sipspa.17.12.03.SPA.pkg
155659  -rw-    41284612  Aug 24 2024 14:42:05 +00:00  cat9k-srdriver.17.12.03.SPA.pkg
155660  -rw-    17875968  Aug 24 2024 14:42:05 +00:00  cat9k-webui.17.12.03.SPA.pkg
155661  -rw-        9216  Aug 24 2024 14:42:05 +00:00  cat9k-wlc.17.12.03.SPA.pkg
155663  -rw-    61872038  Aug 24 2024 14:42:05 +00:00  cat9k-rpboot.17.12.03.SPA.pkg
327687  -rw-    29471752  Jul 23 2024 17:01:12 +00:00  cat9k-cc_srdriver.17.12.04.SPA.pkg
327688  -rw-   169464836  Jul 23 2024 17:01:58 +00:00  cat9k-espbase.17.12.04.SPA.pkg
327689  -rw-     2155524  Jul 23 2024 17:01:05 +00:00  cat9k-guestshell.17.12.04.SPA.pkg
327690  -rw-   111498240  Jul 23 2024 17:01:38 +00:00  cat9k-lni.17.12.04.SPA.pkg
327691  -rw-   768689152  Jul 23 2024 17:03:45 +00:00  cat9k-rpbase.17.12.04.SPA.pkg
327692  -rw-    48747524  Jul 23 2024 17:01:39 +00:00  cat9k-sipbase.17.12.04.SPA.pkg
327693  -rw-    56431616  Jul 23 2024 17:01:40 +00:00  cat9k-sipspa.17.12.04.SPA.pkg
327694  -rw-    41288708  Jul 23 2024 17:01:30 +00:00  cat9k-srdriver.17.12.04.SPA.pkg
327695  -rw-    17884160  Jul 23 2024 17:01:30 +00:00  cat9k-webui.17.12.04.SPA.pkg
327696  -rw-        9216  Jul 23 2024 17:01:04 +00:00  cat9k-wlc.17.12.04.SPA.pkg
327684  -rw-    61891845  Oct 24 2024 07:45:48 +00:00  cat9k-rpboot.17.12.04.SPA.pkg
11353194496 bytes total (6682238976 bytes free)
Switch#



8. show version으로 버전을 확인합니다.

Switch#show version
Cisco IOS XE Software, Version 17.12.04
Cisco IOS Software [Dublin], Catalyst L3 Switch Software (CAT9K_IOSXE), Version 17.12.4, RELEASE SOFTWARE (fc3)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2024 by Cisco Systems, Inc.
Compiled Tue 23-Jul-24 09:40 by mcpre



9.불필요한 파일들을 삭제합니다.


Switch#install remove inactive
install_remove: START Thu Oct 24 08:03:31 UTC 2024
install_remove: Removing IMG
Cleaning up unnecessary package files
No path specified, will use booted path /flash/packages.conf

Cleaning /flash
  Scanning boot directory for packages ... done.
  Preparing packages list to delete ...
    [R0]: /flash/packages.conf File is in use, will not delete.
    [R1]: /flash/packages.conf File is in use, will not delete.
    [R0]: /flash/cat9k-cc_srdriver.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-cc_srdriver.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-espbase.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-espbase.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-guestshell.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-guestshell.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-lni.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-lni.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-rpbase.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-rpbase.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-sipbase.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-sipbase.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-sipspa.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-sipspa.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-srdriver.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-srdriver.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-webui.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-webui.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k-wlc.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-wlc.17.12.04.SPA.pkg File is in use, will not delete.
    [R0]: /flash/cat9k_iosxe.17.12.04.SPA.conf File is in use, will not delete.
    [R1]: /flash/cat9k_iosxe.17.12.04.SPA.conf File is in use, will not delete.
    [R0]: /flash/cat9k-rpboot.17.12.04.SPA.pkg File is in use, will not delete.
    [R1]: /flash/cat9k-rpboot.17.12.04.SPA.pkg File is in use, will not delete.

The following files will be deleted:
    [R0]: /flash/cat9k-cc_srdriver.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-cc_srdriver.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-espbase.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-espbase.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-guestshell.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-guestshell.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-lni.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-lni.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-rpbase.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-rpbase.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-sipbase.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-sipbase.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-sipspa.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-sipspa.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-srdriver.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-srdriver.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-webui.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-webui.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-wlc.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-wlc.17.12.03.SPA.pkg
    [R0]: /flash/cat9k-rpboot.17.12.03.SPA.pkg
    [R1]: /flash/cat9k-rpboot.17.12.03.SPA.pkg
    [R0]: /flash/cat9k_iosxe.17.12.04.SPA.bin
    [R1]: /flash/cat9k_iosxe.17.12.04.SPA.bin

Do you want to remove the above files? [y/n]
                                            *Oct 24 08:03:31.983: %INSTALL-5-INSTALL_START_INFO: Switch 1 R0/0: install_mgr: Started install remove

 [y/n]y

Deleting file /flash/cat9k-cc_srdriver.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-espbase.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-guestshell.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-lni.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-rpbase.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-sipbase.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-sipspa.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-srdriver.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-webui.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-wlc.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k-rpboot.17.12.03.SPA.pkg ... done.
Deleting file /flash/cat9k_iosxe.17.12.04.SPA.bin ... done.
SUCCESS: Files deleted.

--- Starting Post_Remove_Cleanup ---
Performing REMOVE_POSTCHECK on all members
Finished Post_Remove_Cleanup
SUCCESS: install_remove Thu Oct 24 08:03:43 UTC 2024

Switch#



10. 그리고 저장 합니다.

Switch#wr
Building configuration...
[OK]



정상적으로 17.12.04 IOS 업그레이드가 완료 되었습니다.



지금까지 글을 읽어주셔서 감사합니다.



+ Recent posts
