[C9800CL][#8]- Data Interface Redundancy - Port Channel

안녕하세요.



오늘은  C9800에 Data Interface 2개를 Port Channel로 구성하는 방법에 대해서 알아보겠습니다.

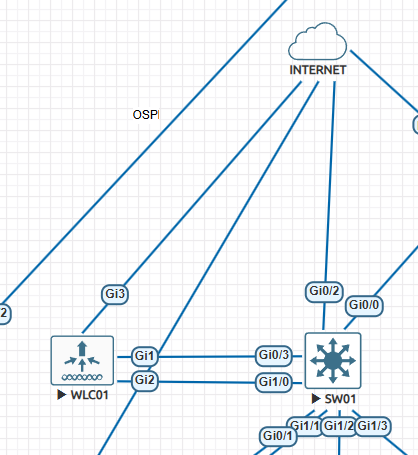

WLC01: Gi3 - MGMT IP vrf MGMT

G1 and G2 -  Portchannel 01로 묶고 Trunk 포트로 모든 VLAN를 허용 하게 설정 하겠습니다.



1. WLC GUI에 접속합니다.



Gi1/Gi2를 아래와 같이 설정합니다.



2. Port-channel를 설정합니다.



SW01(config)#int ra g1/0, gi0/3            SW01(config-if-range)#channel-group 1 mode on SW01(config)#int po 1 SW01(config-if)#sw tr en dot1q  SW01(config-if)#sw mo trunk



Interface Status 확인

SW01#show int status Port      Name               Status       Vlan       Duplex  Speed Type  Gi0/0                        connected    trunk        auto   auto unknown Gi0/1                        connected    trunk        auto   auto unknown Gi0/2                        connected    100          auto   auto unknown Gi0/3                        connected    trunk        auto   auto unknown Gi1/0                        connected    1            auto   auto unknown Gi1/1                        connected    10           auto   auto unknown Gi1/2                        connected    20           auto   auto unknown Gi1/3                        connected    100          auto   auto unknown Po1                          connected    trunk        auto   auto  SW01#





테스트를 위해서 WLC 아래와 같이 설정 합니다.

VLAN 110

VLAN 120
VLAN 130

SVI 110 - 192.168.110.254

SVI 120 - 192.168.120.254

SVI 130 - 192.168.130.254

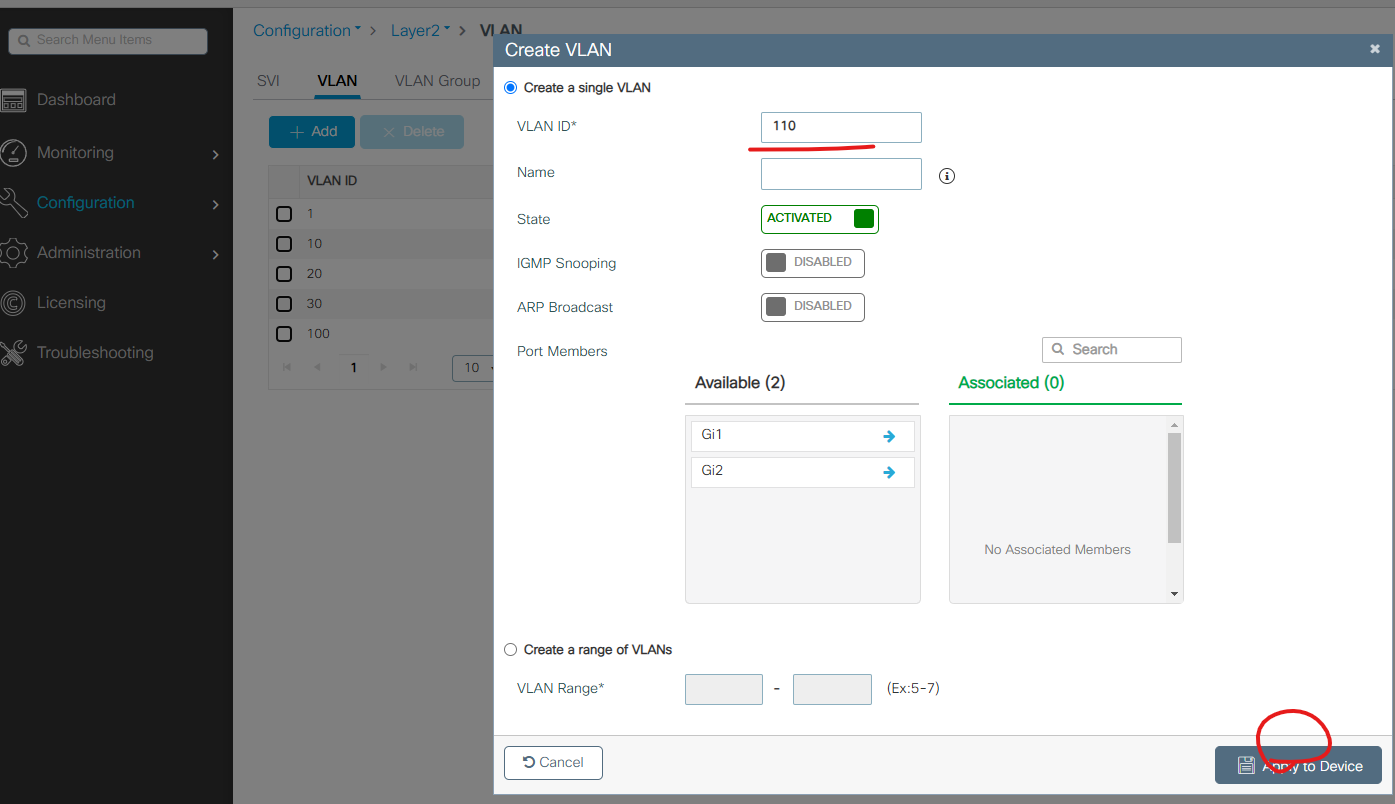

VLAN 110를 설정합니다. 그리고 아래 사진처럼 VLAN 120, VLAN 130도 설정 합니다.

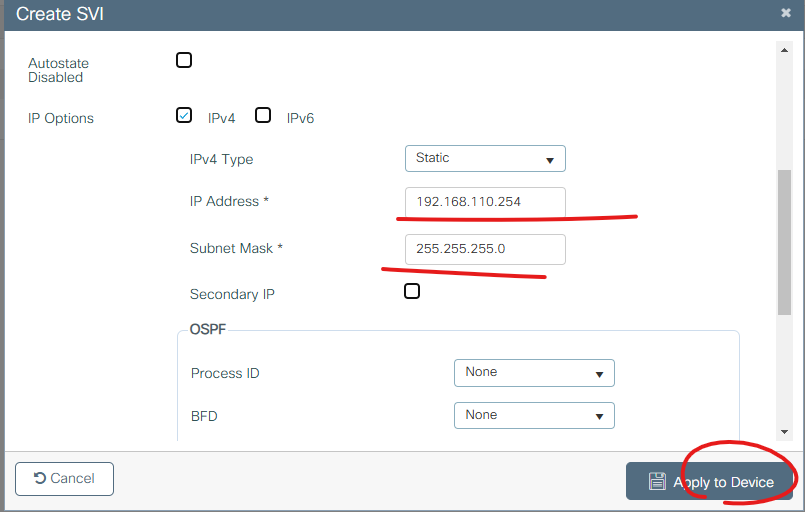

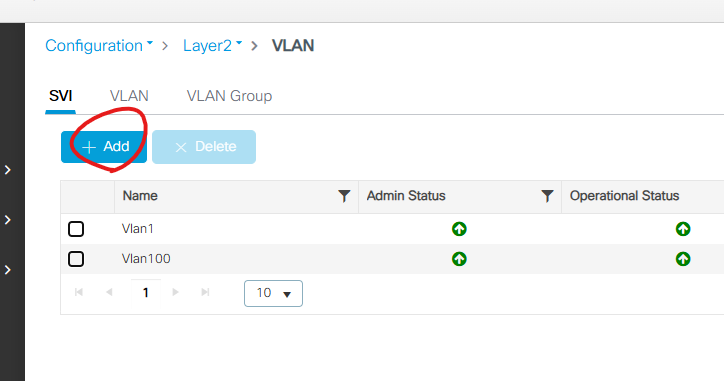

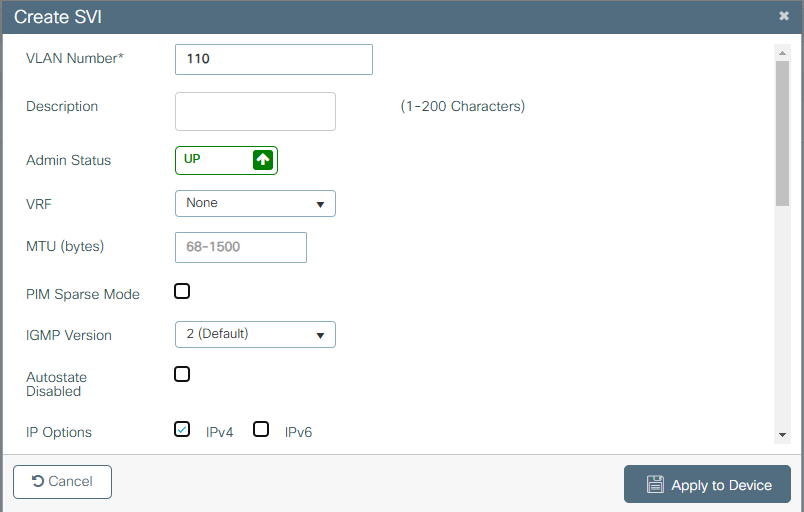

2. SVI를 설정 합니다.

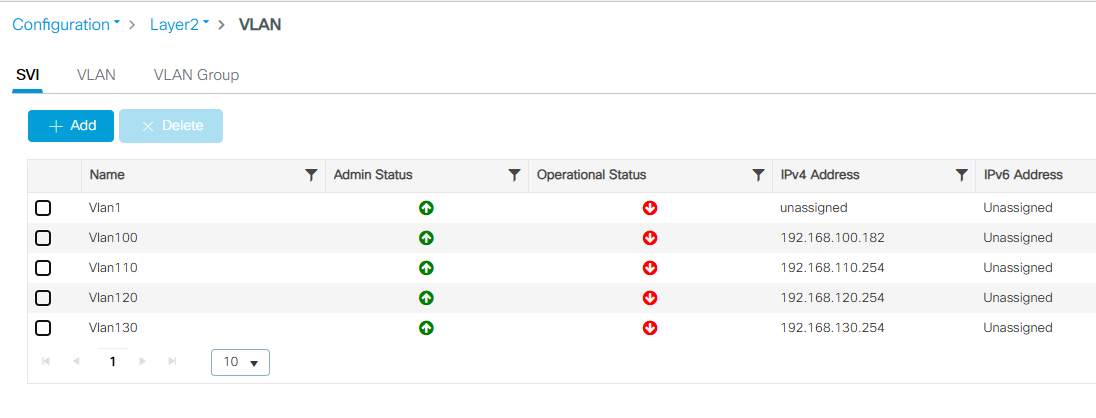

아래 사진처럼 SVI 120과 SVI 130도 설정 합니다.





Cisco switch에서

VLAN 110,120,130설정하고 SVI 110,120,130를 설정합니다.

SVI 110: 192.168.110.253

SVI 120: 192.168.120.253

SVI 130: 192.168.130.253



VLAN 설정

SW01(config)#vlan 110 SW01(config-vlan)#vlan 120 SW01(config-vlan)#vlan 130 SW01#show vlan brie VLAN Name                             Status    Ports ---- -------------------------------- --------- ------------------------------- 1    default                          active    Gi1/0 10   VLAN0010                         active    Gi1/1 20   VLAN0020                         active    Gi1/2 30   VLAN0030                         active     100  VLAN0100                         active    Gi0/2, Gi1/3 110  VLAN0110                         active     120  VLAN0120                         active     130  VLAN0130                         active     1002 fddi-default                     act/unsup  1003 token-ring-default               act/unsup  1004 fddinet-default                  act/unsup  1005 trnet-default                    act/unsup  SW01#

SVI 설정

SW01(config)#int vlan 110 SW01(config-if)#ip add 192.168.110.253 255.255.255.0 SW01(config-if)#int vlan 120 SW01(config-if)#ip add 192.168.120.253 255.255.255.0 SW01(config-if)#int vlan 130 SW01(config-if)#ip add 192.168.130.253 255.255.255.0 SW01(config-if)# SW01#show ip int brie Interface              IP-Address      OK? Method Status                Protocol GigabitEthernet0/0     unassigned      YES unset  up                    up       GigabitEthernet0/1     unassigned      YES unset  up                    up       GigabitEthernet0/2     unassigned      YES unset  up                    up       GigabitEthernet0/3     unassigned      YES unset  up                    up       GigabitEthernet1/0     unassigned      YES unset  up                    up       GigabitEthernet1/1     unassigned      YES unset  up                    up       GigabitEthernet1/2     unassigned      YES unset  up                    up       GigabitEthernet1/3     unassigned      YES unset  up                    up       Port-channel1          unassigned      YES unset  down                  down     Vlan10                 192.168.10.250  YES NVRAM  administratively down down     Vlan20                 unassigned      YES unset  administratively down down     Vlan100                192.168.100.179 YES NVRAM  up                    up       Vlan110                192.168.110.253 YES manual up                    up       Vlan120                192.168.120.253 YES manual up                    up       Vlan130                192.168.130.253 YES manual up                    up



ping test

SW01#ping 192.168.110.254          Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.110.254, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/3 ms SW01#ping 192.168.120.254 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.120.254, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/2/6 ms SW01#ping 192.168.130.254 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.130.254, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/2/4 ms SW01#



SW01#show etherchannel summary  Flags:  D - down        P - bundled in port-channel         I - stand-alone s - suspended         H - Hot-standby (LACP only)         R - Layer3      S - Layer2         U - in use      N - not in use, no aggregation         f - failed to allocate aggregator         M - not in use, minimum links not met         m - not in use, port not aggregated due to minimum links not met         u - unsuitable for bundling         w - waiting to be aggregated         d - default port         A - formed by Auto LAG Number of channel-groups in use: 1 Number of aggregators:           1 Group  Port-channel  Protocol    Ports ------+-------------+-----------+----------------------------------------------- 1      Po1(SU)          -        Gi0/3(P)    Gi1/0(P)



지금까지 [C9800CL][#8]- Data Interface Redundancy - Port Channel  글을 읽어주셔서 감사합니다.
